Bose PowerMatch PM8500 User Manual

English User Guide Page 31
pro.Bose.com User Guide

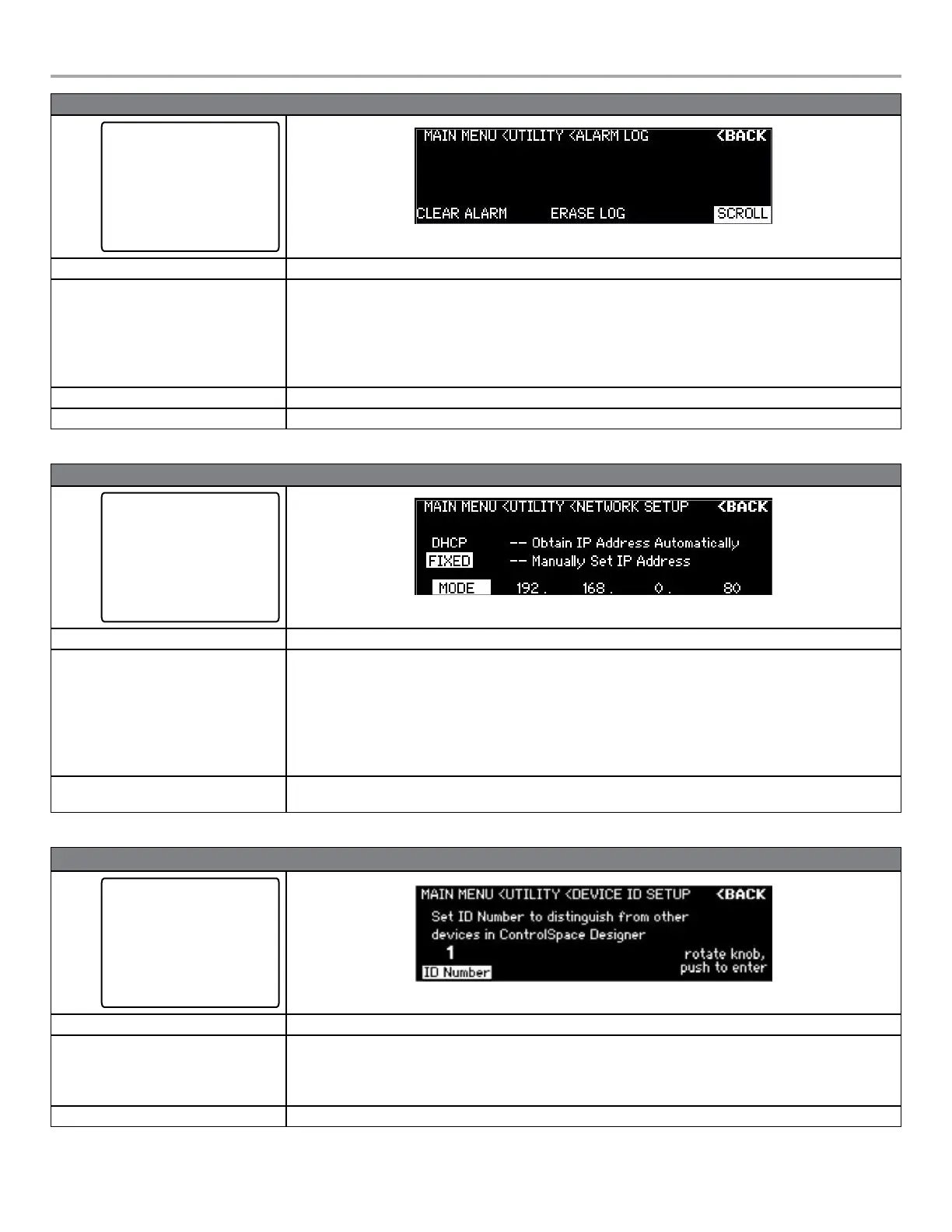

MAIN MENU < UTILITY < ALARM LOG
UTILITY
Standby Mode
Alarm Log
Network Setup (Device ID)
Lock Front Panel
Set Front Panel Lock Combination
Display
Restore Factory Settings
Firmware Version
Description This display allows you to view, clear, and erase captured alarm notifications.
Available Controls To access ALARM LOG, use the rotary encoder dial from the DSP menu to highlight, then press to select.
Navigation Soft Key: Back to UTILITY menu.
Menu Soft Key #5: Enables the rotary encoder dial to scroll through the alarm log.
Menu Soft Key #1: Clears the alarm indicated by the FAULT LED on the front panel.
Menu Soft Key #3: Erases all entries captured in the alarm log. A confirmation screen is presented by which users can confirm (Soft
Key #1) or cancel (Soft Key #5).
Options Exit Standby, Enter Standby
Notes ControlSpace Designer software allows you to configure and view additional information about alarm and fault conditions.
MAIN MENU < UTILITY < NETWORK SETUP (PM8500N only)
UTILITY
Standby Mode
Alarm Log
Network Setup (Device ID)
Lock Front Panel
Set Front Panel Lock Combination
Display
Restore Factory Settings
Firmware Version
Description This display allows you to set the network IP address of the PM8500N amplifier.
Available Controls To access Network Setup, use the rotary encoder dial from the DSP menu to highlight, then press to select.
Navigation Soft Key: Back to UTILITY menu.
Menu Soft Key #1: Enables the rotary encoder dial to toggle between DHCP or FIXED IP address mode. Push the rotary encoder
to enable the selection. A confirmation screen is presented by which users can confirm (Soft Key #1) or cancel (Soft Key #5). Upon
confirmation, the unit will save and reboot using the new setting.
Menu Soft Key #2-5: Enables the rotary encoder dial to adjust the value of each IP address octet. Once the IP address has been fully
modified, push the rotary encoder to enable the selection. A confirmation screen is presented by which users can confirm (Soft Key
#1) or cancel (Soft Key #5). Upon confirmation, the unit will save and reboot using the new setting.
Options Mode: DHCP, Fixed
IP Address Octet Values: 0 to 255
MAIN MENU < UTILITY < DEVICE ID (PM8500 only)
UTILITY
Standby Mode
Alarm Log
Network Setup (Device ID)
Lock Front Panel
Set Front Panel Lock Combination
Display
Restore Factory Settings
Firmware Version
Description This display allows you to set the device identification number of the PM8500 amplifier.
Available Controls To access Network Setup, use the rotary encoder dial from the DSP menu to highlight, then press to select.
Navigation Soft Key: Back to UTILITY menu.
Rotary Encoder: Use the dial to scroll through device ID values. Push the rotary encoder to set the new device ID. A confirmation
screen is presented by which users can confirm (Soft Key #1) or cancel (Soft Key #5).
Options Device ID Number: 1-255
➞
➞
➞

Bose PowerMatch PM8500 Specifications

General

Efficiency	75 %
Amplifier class	D
Audio input channels	8 channels
Audio output channels	8.0 channels
Peak power per channel	500 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.1 %
USB port type	USB Type-B
Ethernet LAN data rates	100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Speakers connectivity type	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Purpose	Performance/stage
Cooling type	Active
On/off switch	Yes
Product color	Black
Connectivity technology	Wired
Package weight	15700 g
Operating temperature (T-T)	0 - 40 °C
LED indicators	Fault

Weight and Dimensions

Depth	525 mm
Width	483 mm
Height	88 mm
Weight	12900 g
