Bowflex MAX Trainer - Parts and Hardware; Parts Identification

Assembly / Owner’s Manual
6

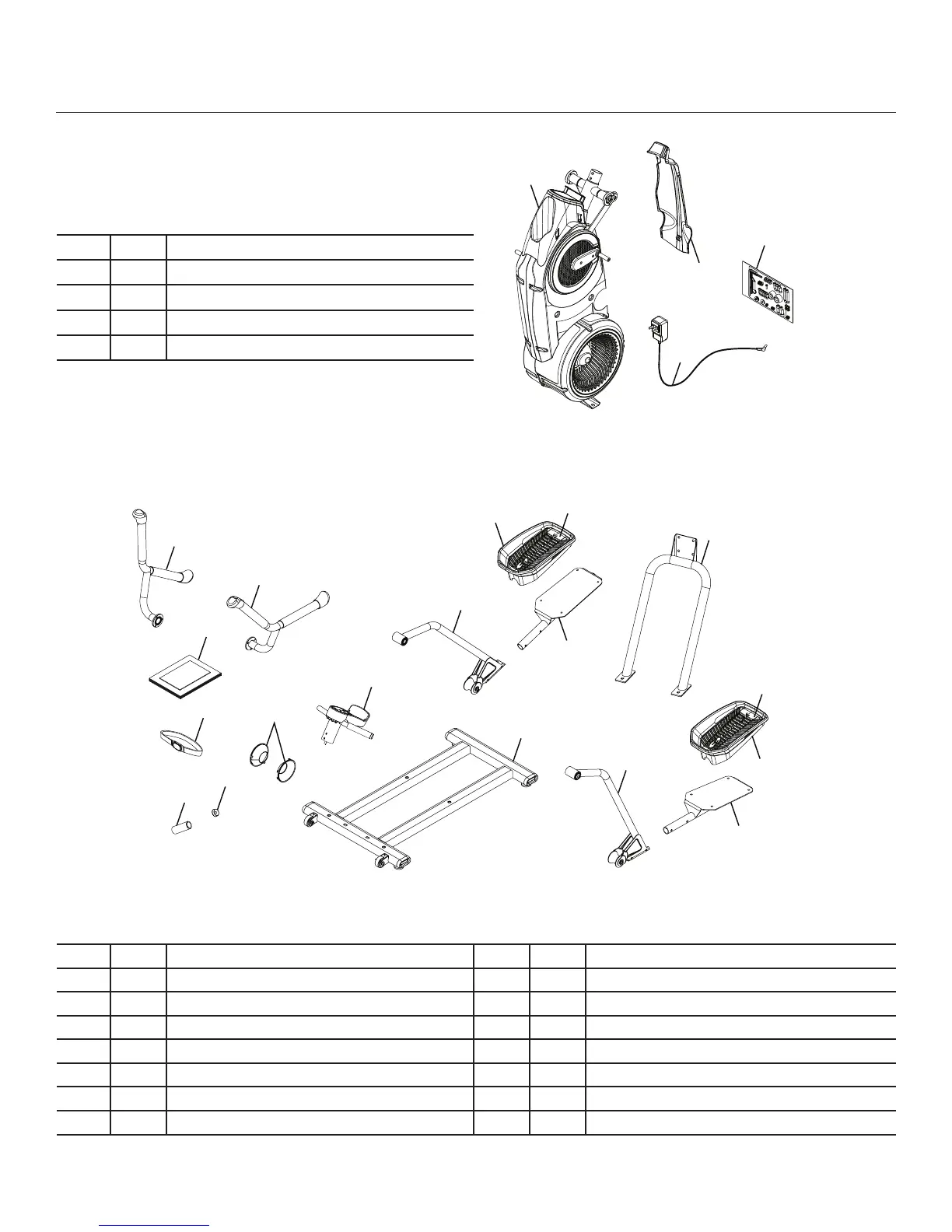

A decal has been applied to all right (“ R ”) and left (“ L ”) parts to assist with assembly.
Item Qty Description Item Qty Description
5 1 Upper Handlebar, Right 12 1 Stabilizer Assembly
6 1 Upper Handlebar, Left 13 1 Static Handlebar Assembly
7 2 Leg 14 2 Cap
8 2 Foot Pad 15 1 Static Handlebar Grip
9 2 Foot Pad Insert 16 1 Static Handlebar Cap
10 2 Pedal 17 1 Heart Rate Chest Strap
11 1 Rail Assembly 18 1 ManualKit
( 2 Boxes )
Box 1
Item Qty Description
1 1 Frame
2 1 Shroud, Rear
3 1 AC Adapter
4 1 Hardware Card
Parts
5
11
7
12
9
6
1
7
3
2
8
9
8
10
10
13
14
17
15
16
4
18
5
11
7
12
9
6
1
7
3
2
8
9
8
10
10
13
14
17
15
16
4
18
Box 2
