Assembly
Step 4: Assemble the Leg Extension
Parts
• LegExtension(#24)
• LegExtensionCrossTube(#25)
Hardware
• (2)3/8”x3”HexHeadBolt(#4)
• (4)3/8”Washers(#10)
• (2)3/8”Nut(#11)
Tools
• (2)AdjustableWrenches(notincluded)

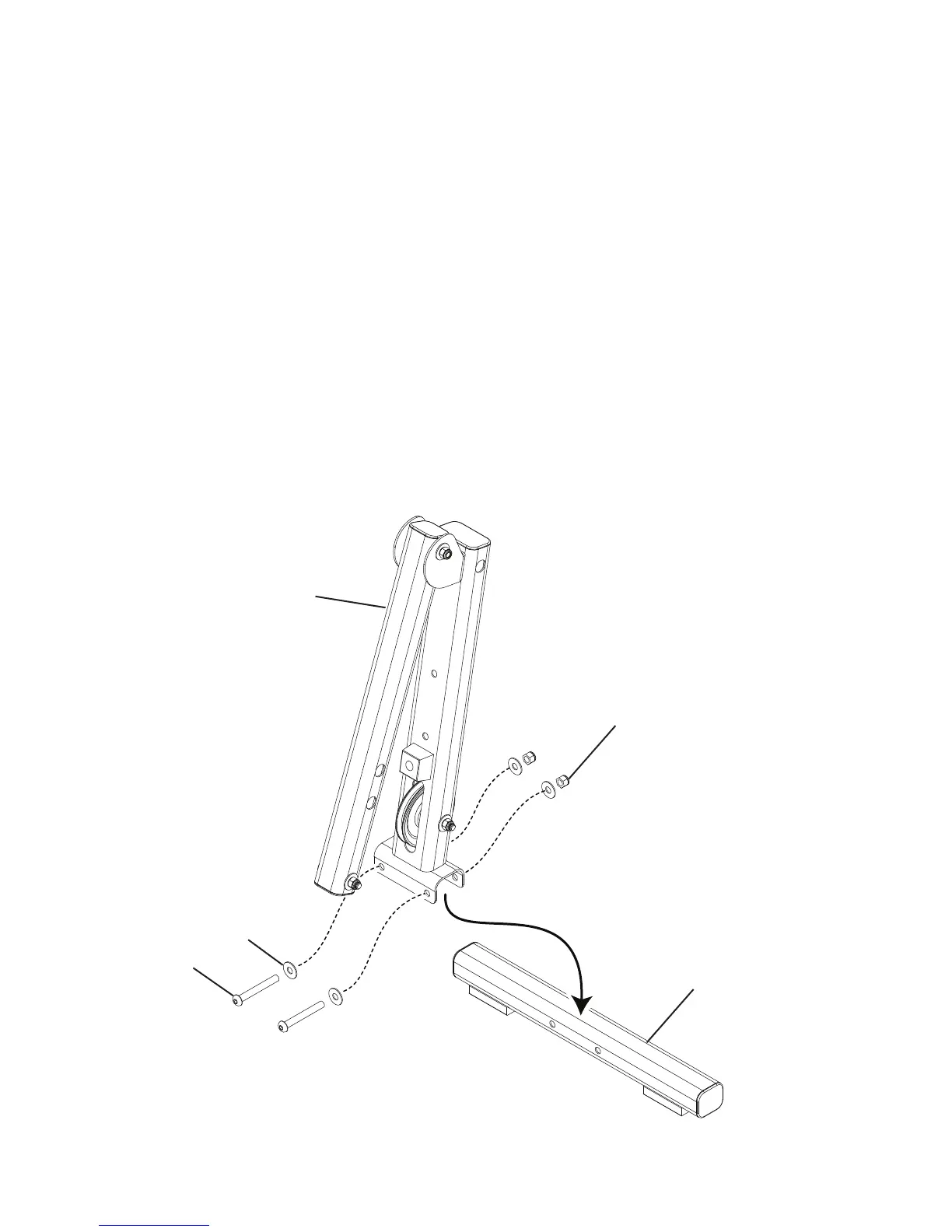

4-1 Set the bracket end of the Leg Extension onto the Leg Extension Tube and align the bolt holes.
4-2 Install and tighten the hardware.
Note:Donotunwrapthecablefromthepulley.
4
10
24
25
11
Assembly Manual
10
