9
Bowflex
®
TreadClimber
®
Service Manual

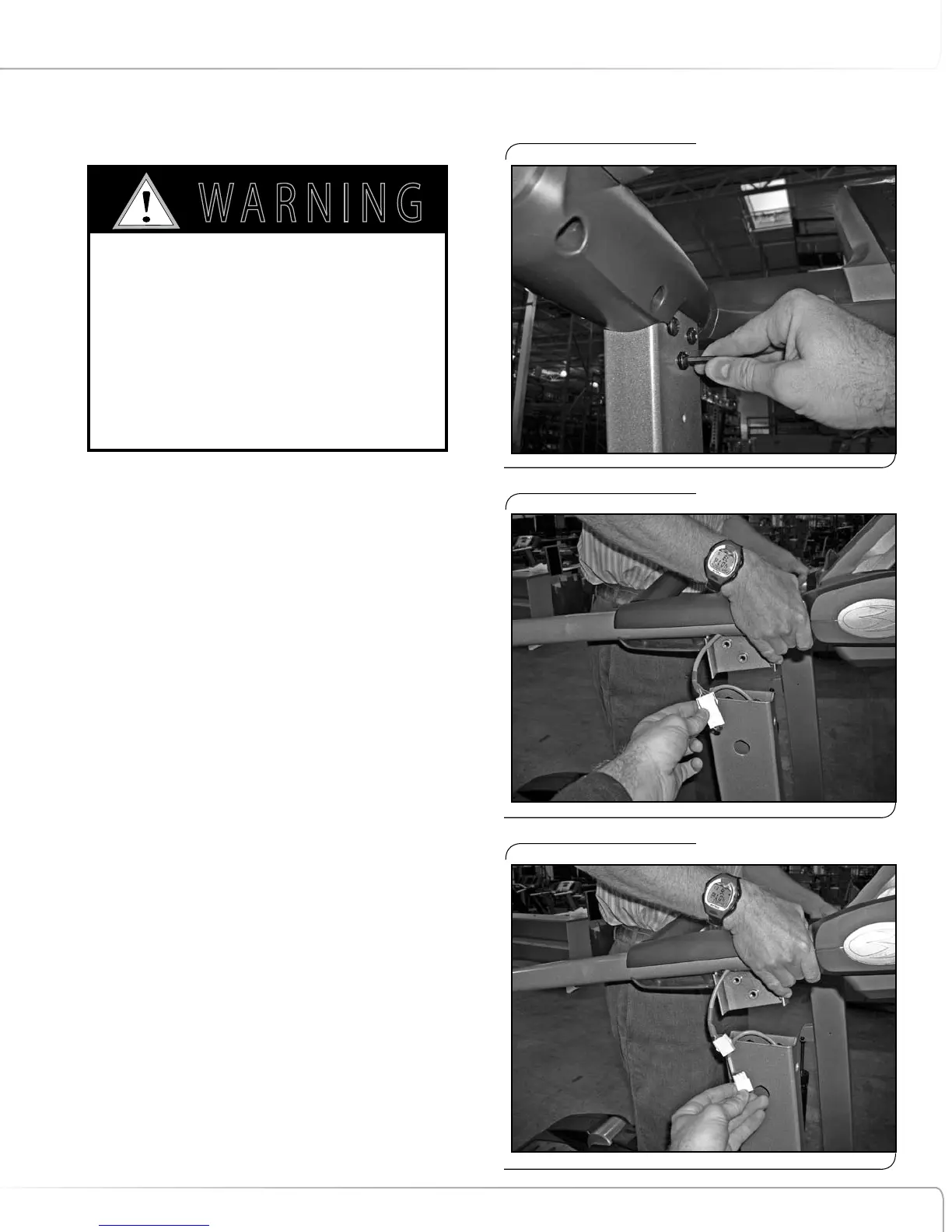

2-7 Once the cable connection is made, slide the
brackets on the handlebar into the tops of the
upright tubes.
NOTE: Be careful not to crimp or cut the wire
at at any point during this step.
2-8 Attach each handlebar to the uprights using the
5/16 x 1 inch button head bolts (4 per handlebar)
and 5/16 inch washers.
2-9 Tighten the bolts using the 3/16 inch hex key.
Tighten the front bolt first, followed by the 3 bolts
on the inside of the uprights.
2-10 Recalibrate machine according to Appendix 3.
Figure 4:
Figure 5:
Figure 6:
MECHANICAL SERVICE GUIDE
Use caution when connecting the wiring
harness to ensure that the wires do not
become pinched or come into contact
with any moving part. The TreadClimber®
fitness machine will not work and an
electric shock hazard may be present if
the wires become pinched.
7 ! 2 . ) . '
! 4 4 % . 4 ) / .
$ ! . ' % 2
)--%$)!4%!#4)/.2%15)2%$
# ! 5 4 ) / .
