MECHANICAL SERVICE GUIDE
10.0 - REPLACEMENT OF BELTS
Tools Needed:
• Phillips Screwdriver
• Flathead Screwdriver
• Allen Wrench
• 1/2 inch Wrench
• (2) 9/16 inch Wrench
NOTE: If using a powered driver, it must be on the
“LOW TORQUE” setting, otherwise it will
strip screws.
10-1 Unplug machine from wall outlet.
10-2 Wait 5-minutes after unplugging machine to
ensure there is no residual power.

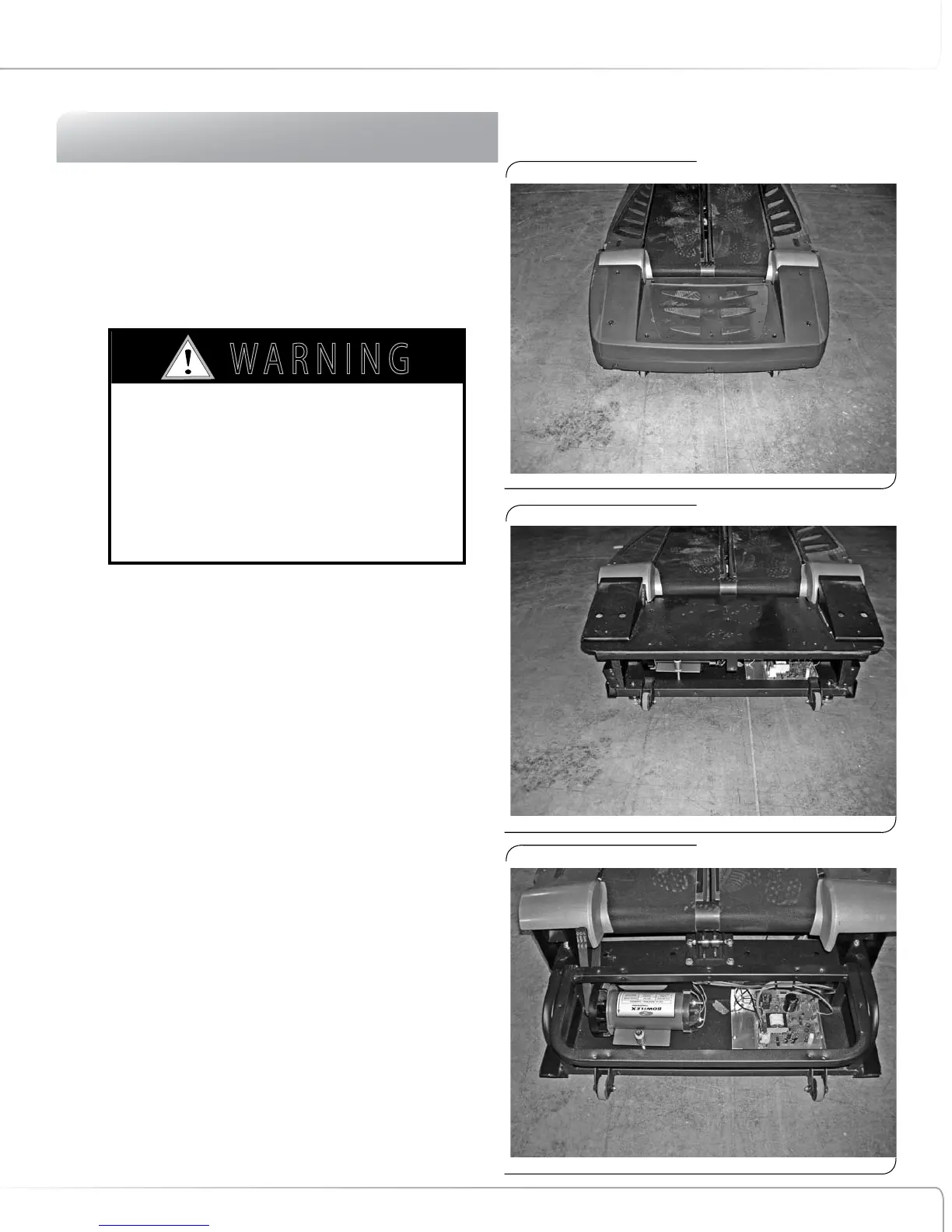

10-3 Remove rear step plastic cover (8 screws), right
and left rear base plastic covers (3 screws each),
and rear base plastic cover (5 screws). See
Figures 1 & 2.
10-4 Remove rear step cover (4 screws). See Figure 3.
10-5 Remove black hardware plugs in treadle plastic
covers with a Flathead screwdriver. Remove
left and right cast covers (2 screws each). See
Figures 4 & 5.
NOTE: Before removing cast covers, you may need
to loosen the first screw on the upper treadle
plastic cover to get the cast cover off.
AS LONG AS THE TREADCLIMBER
®
FITNESS
MACHINE IS PLUGGED INTO A POWERED OUTLET
AND THE POWER SWITCH IS ON, THE UNIT IS
RECEIVING POWER, EVEN IF THE DISPLAY IS
TURNED OFF. ALWAYS UNPLUG THE POWER CORD
FROM THE OUTLET AND WAIT 5-MINUTES BEFORE
PERFORMING REPAIRS OR MAINTENANCE.
7 ! 2 . ) . '
! 4 4 % . 4 ) / .
$ ! . ' % 2
)--%$)!4%!#4)/.2%15)2%$
# ! 5 4 ) / .
To Next Page
