MECHANICAL SERVICE GUIDE
9.0 - REPLACEMENT OF HYDRAULIC CYLINDERS
Tools Needed:
• 1/2 inch Wrench
NOTE: If using a powered driver, it must be on the
“LOW TORQUE” setting, otherwise it will
strip screws.
Hydraulic cylinders MUST be replaced in pairs.
9-1 Unplug machine from wall outlet.
9-2 Wait 5-minutes after unplugging machine to
ensure there is no residual power.
9-3 Remove bolts and washers attaching base of
hydraulic cylinders to machine base (see Figure 1 & 2).
9-4 Remove bolts attaching top of cylinders from left
and right uprights.
9-5 Install new cylinders, by attaching bolts to uprights.
9-6 Ease cylinders down to loop base of cylinders over
metal peg on each side of base (see Figure 3).
9-7 Re-install bolts and washers, attaching base of
cylinders to base of machine.
9-8 Recalibrate machine according to Appendix 3.

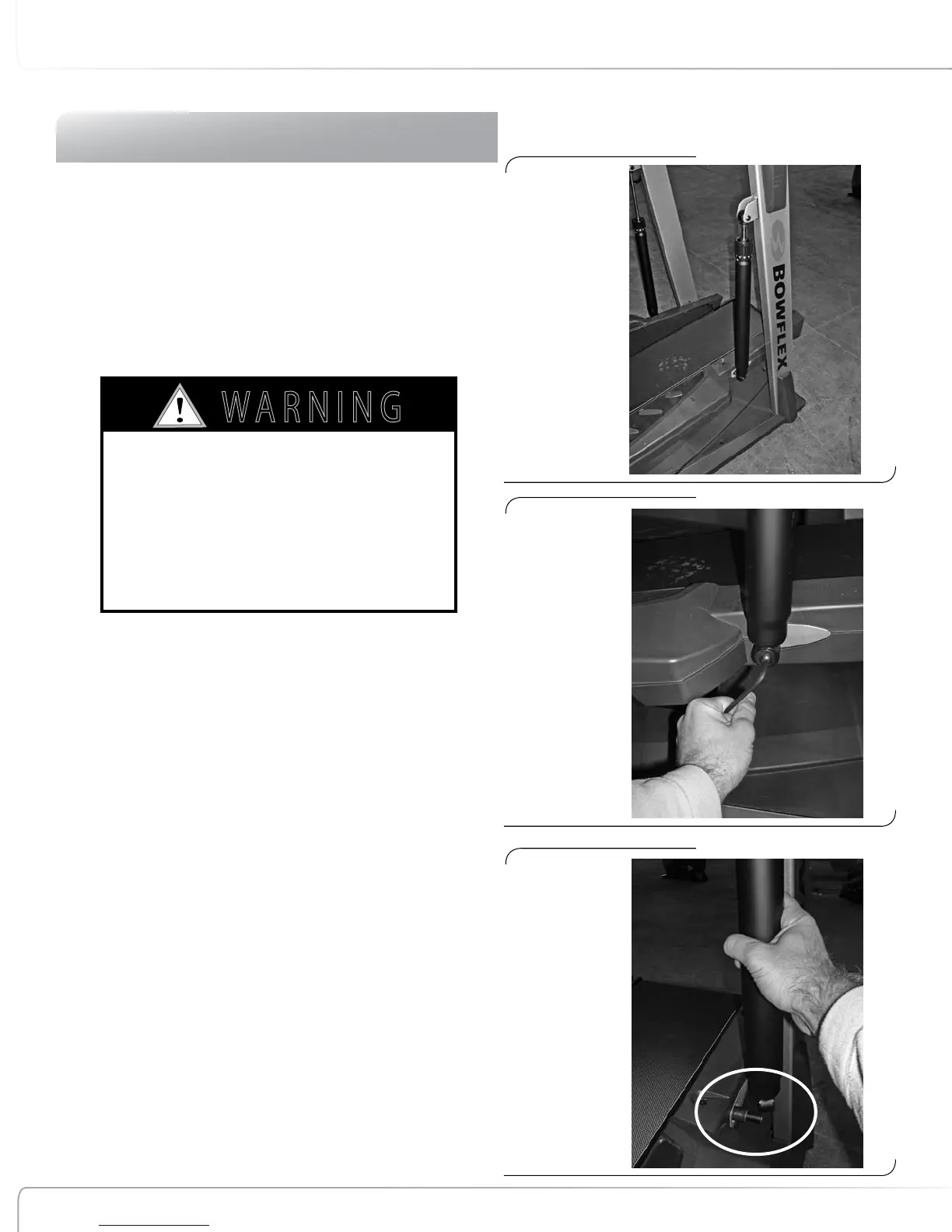

Figure 1:
Figure 2:
Figure 3:
AS LONG AS THE TREADCLIMBER
®
FITNESS
MACHINE IS PLUGGED INTO A POWERED OUTLET
AND THE POWER SWITCH IS ON, THE UNIT IS
RECEIVING POWER, EVEN IF THE DISPLAY IS
TURNED OFF. ALWAYS UNPLUG THE POWER CORD
FROM THE OUTLET AND WAIT 5-MINUTES BEFORE
PERFORMING REPAIRS OR MAINTENANCE.
7 ! 2 . ) . '
! 4 4 % . 4 ) / .
$ ! . ' % 2
)--%$)!4%!#4)/.2%15)2%$
# ! 5 4 ) / .
Metal Peg
