Service Manual
MECHANICAL SERVICE GUIDE

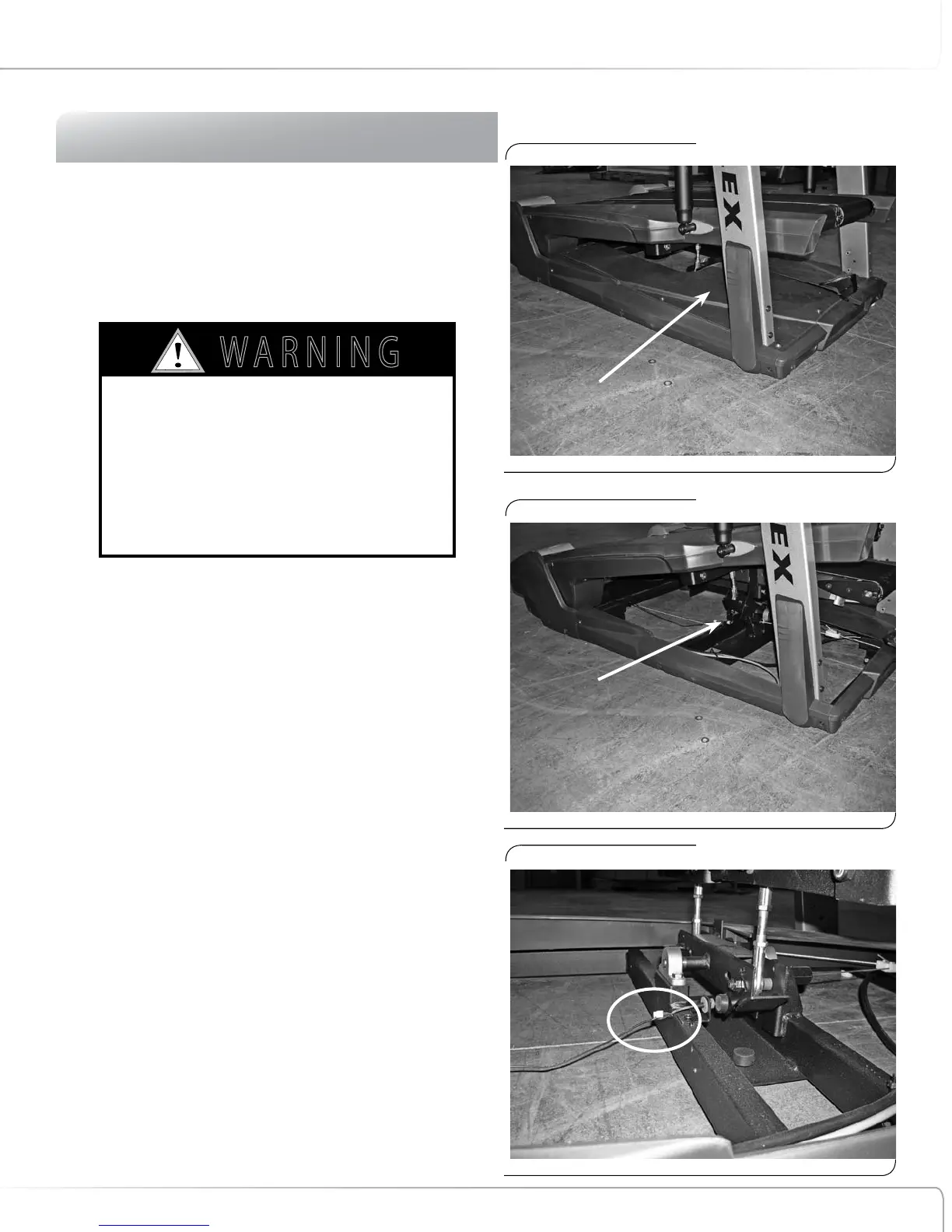

Figure 1:
Figure 2:
Figure 3:
7.0 - REPLACEMENT OF STEP SENSOR
Tools Needed:
• Phillips Screwdriver
NOTE: If using a powered driver, it must be on the
“LOW TORQUE” setting, otherwise it will
strip screws.
7-1 Unplug machine from wall outlet.
7-2 Wait 5-minutes after unplugging machine to
ensure there is no residual power.
7-3 Remove the right base plastic top cover by
removing 3 screws (see Figure 1).
7-4 Standing on the right side of the unit, the
step sensor should be accessible behind the
dependency teeter (see Figure 2).
7-5 Disconnect white cable connector from step
sensor wire that is attached to long black wire.
7-6 Disconnect step sensor plug from left rear drive
bracket (see Figure 3).
7-7 Insert new step sensor, connecting white cable
connectors, and making sure not to push sensor
plug to far through connector hole in left rear
drive bracket.
NOTE: The step sensor and grommet (red)
should be 1/8 inch or less from the
magnet on the teeter, but shouldn’t
come in contact with teeter or magnet.
AS LONG AS THE TREADCLIMBER
®
FITNESS
MACHINE IS PLUGGED INTO A POWERED OUTLET
AND THE POWER SWITCH IS ON, THE UNIT IS
RECEIVING POWER, EVEN IF THE DISPLAY IS
TURNED OFF. ALWAYS UNPLUG THE POWER CORD
FROM THE OUTLET AND WAIT 5-MINUTES BEFORE
PERFORMING REPAIRS OR MAINTENANCE.
7 ! 2 . ) . '
! 4 4 % . 4 ) / .
$ ! . ' % 2
)--%$)!4%!#4)/.2%15)2%$
# ! 5 4 ) / .
Top Base Plastic Cover
Step Sensor
Step Sensor Plug
