MECHANICAL SERVICE GUIDE
5.0 - REPLACEMENT OF INTERNAL WIRE IN RIGHT
UPRIGHT
Tools Needed:
• Phillips Screwdriver
• 3/16 inch Allen wrench
5-1 Unplug machine from wall outlet.
5-2 Wait 5-minutes after unplugging machine to
ensure there is no residual power.
5-3 TC5300 only:
Remove the right and left upper upright plastic
covers by removing 2 small screws from the
inside of each upright (see Figure 1, 2 and 3).
Also remove the right lower upright plastic cover
by removing the 2 screws from the inside lower
portion of the upright (see Figure 5 and 6).
5-4 Remove 4 button head bolts attaching console to
handlebars on both sides of machine (see
Figure 4). NOTE: 3 bolts are located on the inside
and 1 bolt is on the front side of the upright
support.
5-5 With the help of another, carefully lift console out
and detach cable connector running through right
upright (see Figure 7, 8 and 9).
5-6 Detach the cable connector at the base of the
right upright after it exists the lower hole on the
outside of the right upright (see Figure 10).

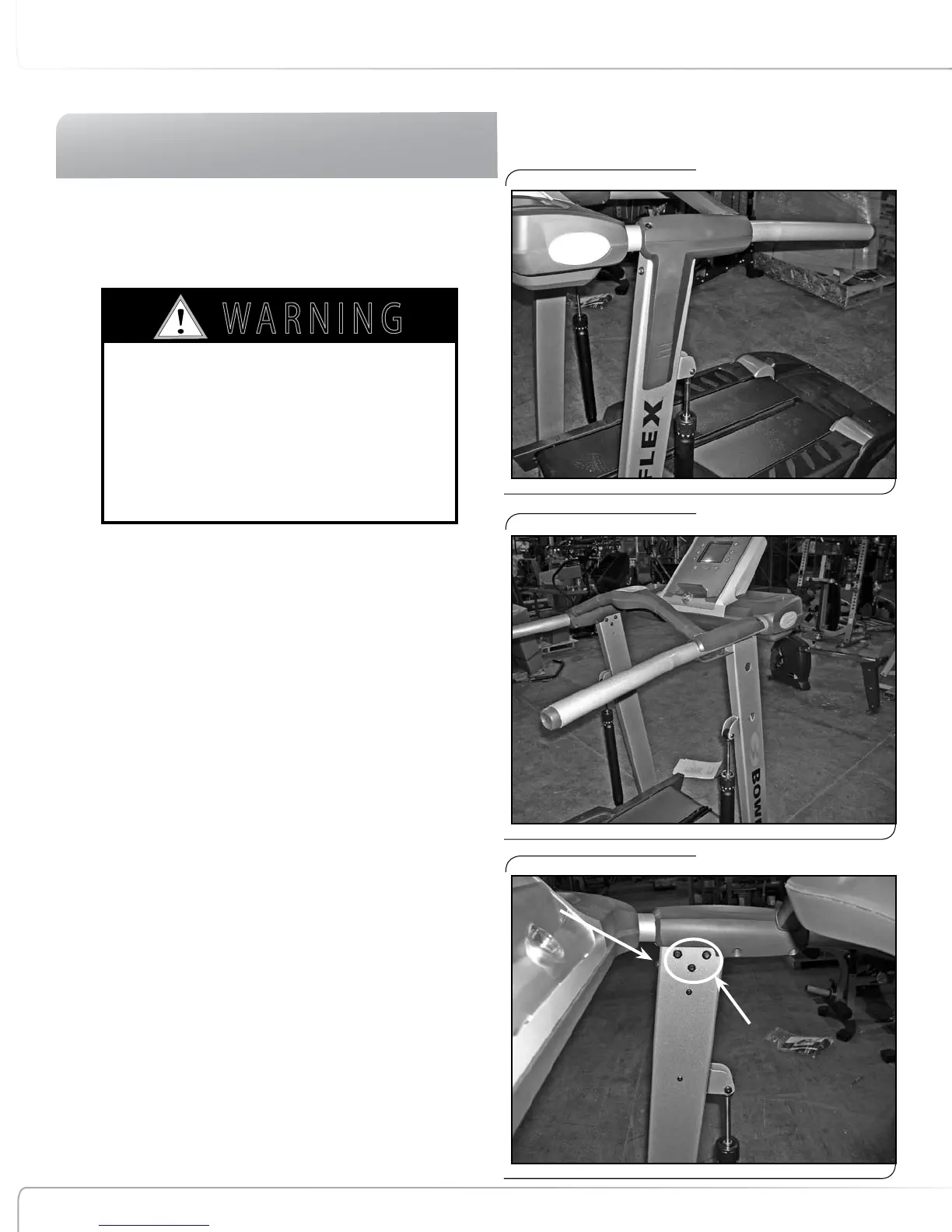

Figure 1:
Figure 2: Upright cover removed.
Figure 3:
AS LONG AS THE TREADCLIMBER
®
FITNESS
MACHINE IS PLUGGED INTO A POWERED OUTLET
AND THE POWER SWITCH IS ON, THE UNIT IS
RECEIVING POWER, EVEN IF THE DISPLAY IS
TURNED OFF. ALWAYS UNPLUG THE POWER CORD
FROM THE OUTLET AND WAIT 5-MINUTES BEFORE
PERFORMING REPAIRS OR MAINTENANCE.
7 ! 2 . ) . '
! 4 4 % . 4 ) / .
$ ! . ' % 2
)--%$)!4%!#4)/.2%15)2%$
# ! 5 4 ) / .
3 Bolts on inside of Upright Support
1 Bolt on front of Upright Support
