10
MECHANICAL SERVICE GUIDE

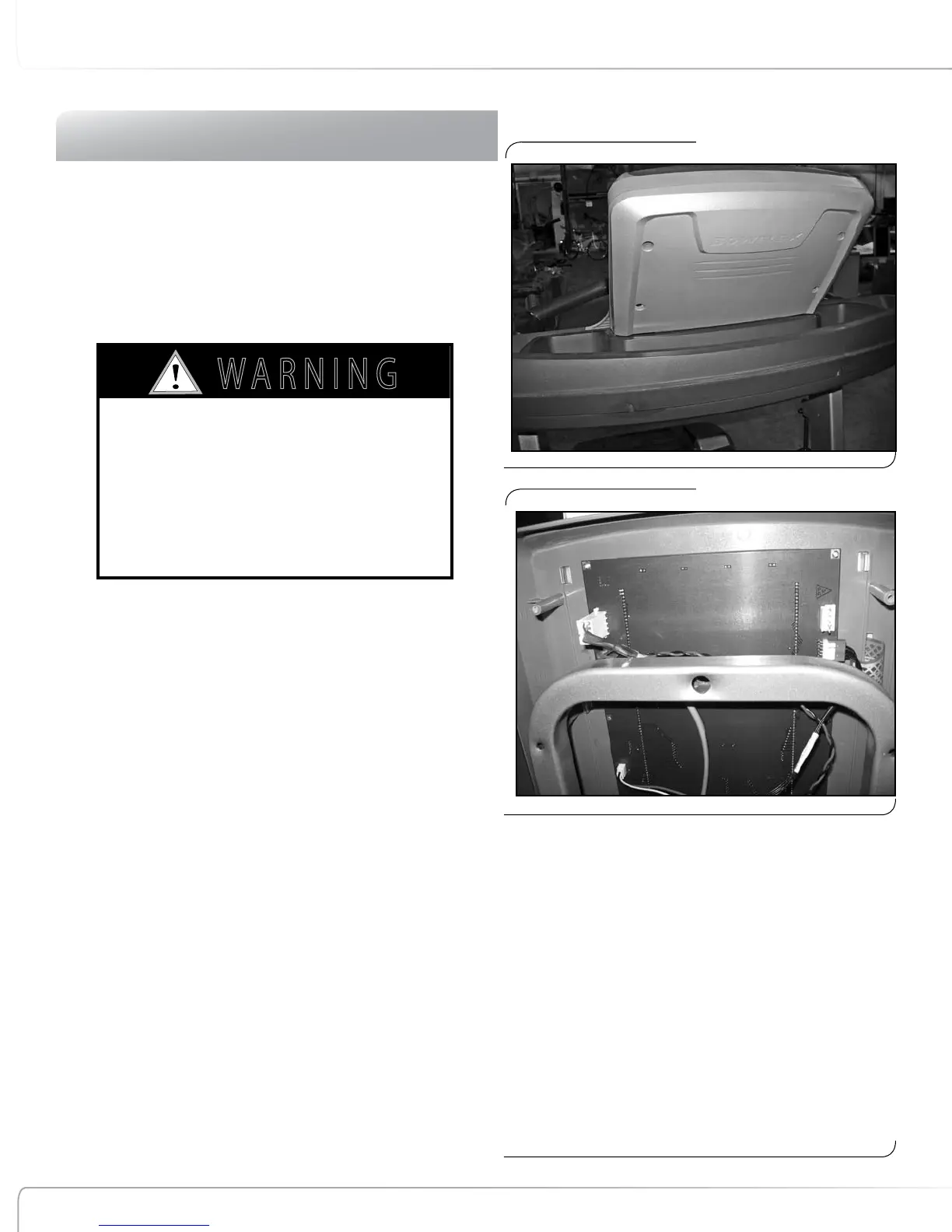

Figure 1:
Figure 2: Console Back Removed
3.0 - REPLACEMENT OF UPPER CONSOLE
Tools Needed:
• Small Screwdriver
• Phillips Screwdriver
NOTE: If using a powered driver, it must be on the
“LOW TORQUE” setting, otherwise it will strip
screws.
3-1 Unplug machine from wall outlet.
3-2 Wait 5-minutes after unplugging machine to ensure
there is no residual power.
3-3 Remove 4 screws from back of console and remove
the rear console plastic (see Figure 1 and 2).
3-4 Disconnect R.O.C. cable from upper right of console
and white 8-pin I/O cable from upper left. (see Figure 2).
Unscrew front console assembly. remove front console
assembly and replace. Re-attach white cable connector
and ROC cable connector.
3-5 Replace rear console cover.
3-6 Recalibrate machine according to Appendix 3.
AS LONG AS THE TREADCLIMBER
®
FITNESS
MACHINE IS PLUGGED INTO A POWERED OUTLET
AND THE POWER SWITCH IS ON, THE UNIT IS
RECEIVING POWER, EVEN IF THE DISPLAY IS
TURNED OFF. ALWAYS UNPLUG THE POWER CORD
FROM THE OUTLET AND WAIT 5-MINUTES BEFORE
PERFORMING REPAIRS OR MAINTENANCE.
7 ! 2 . ) . '
! 4 4 % . 4 ) / .
$ ! . ' % 2
)--%$)!4%!#4)/.2%15)2%$
# ! 5 4 ) / .
