Bowflex TC5300 - Replacement of Lock-Out Lever

30
13.0 - REPLACEMENT OF LOCK-OUT LEVER
Tools Needed:
• Phillips Screwdriver
• 7/16 inch wrench
NOTE: If using a powered driver, it must be on the
“LOW TORQUE” setting, otherwise it will strip
screws.
13-1 Unplug machine from wall outlet and from front of unit.
13-2 Wait 5-minutes after unplugging machine to ensure
there is no residual power.
13-3 Remove the front base plastic (4 screws) see
Figure 1.
13-4 Remove the right and left top base plastic (3 screws
each) see Figure 1.
13-5 Loosen the setscrew with a Phillips screwdriver
and pull cable through the plastic junction. See
Figure 3.
13-6 Remove the old lockout lever by removing 7/16 inch
bolt and retaining spring. Remove the cable and
fine adjustment assembly from the old lever. See
Figure 2, 4 and 5.
MECHANICAL SERVICE GUIDE

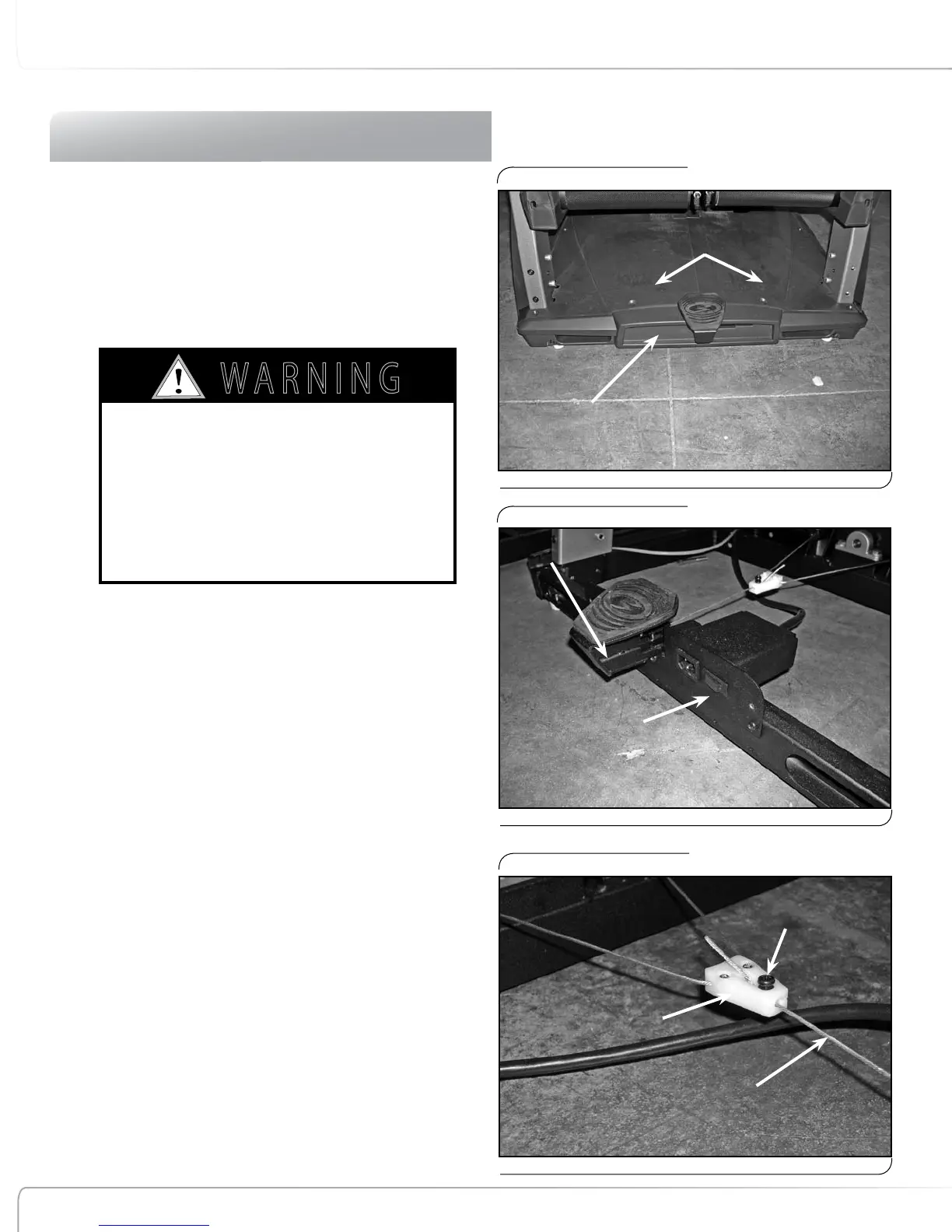

Figure 1:
Figure 2: Unlock Treadles Position
Figure 3: Major Adjustment
AS LONG AS THE TREADCLIMBER
®
FITNESS
MACHINE IS PLUGGED INTO A POWERED OUTLET
AND THE POWER SWITCH IS ON, THE UNIT IS
RECEIVING POWER, EVEN IF THE DISPLAY IS
TURNED OFF. ALWAYS UNPLUG THE POWER CORD
FROM THE OUTLET AND WAIT 5-MINUTES BEFORE
PERFORMING REPAIRS OR MAINTENANCE.
7 ! 2 . ) . '
! 4 4 % . 4 ) / .
$ ! . ' % 2
)--%$)!4%!#4)/.2%15)2%$
# ! 5 4 ) / .
Right & Left Top Base
Plastic Covers
Front Base
Plastic Cover
Treadle Lockout Lever
Treadle Lockout Lever
Faceplate
Setscrew
Junction Plastic
Cable
