19
Bowflex
®
TreadClimber
®
Service Manual
MECHANICAL SERVICE GUIDE

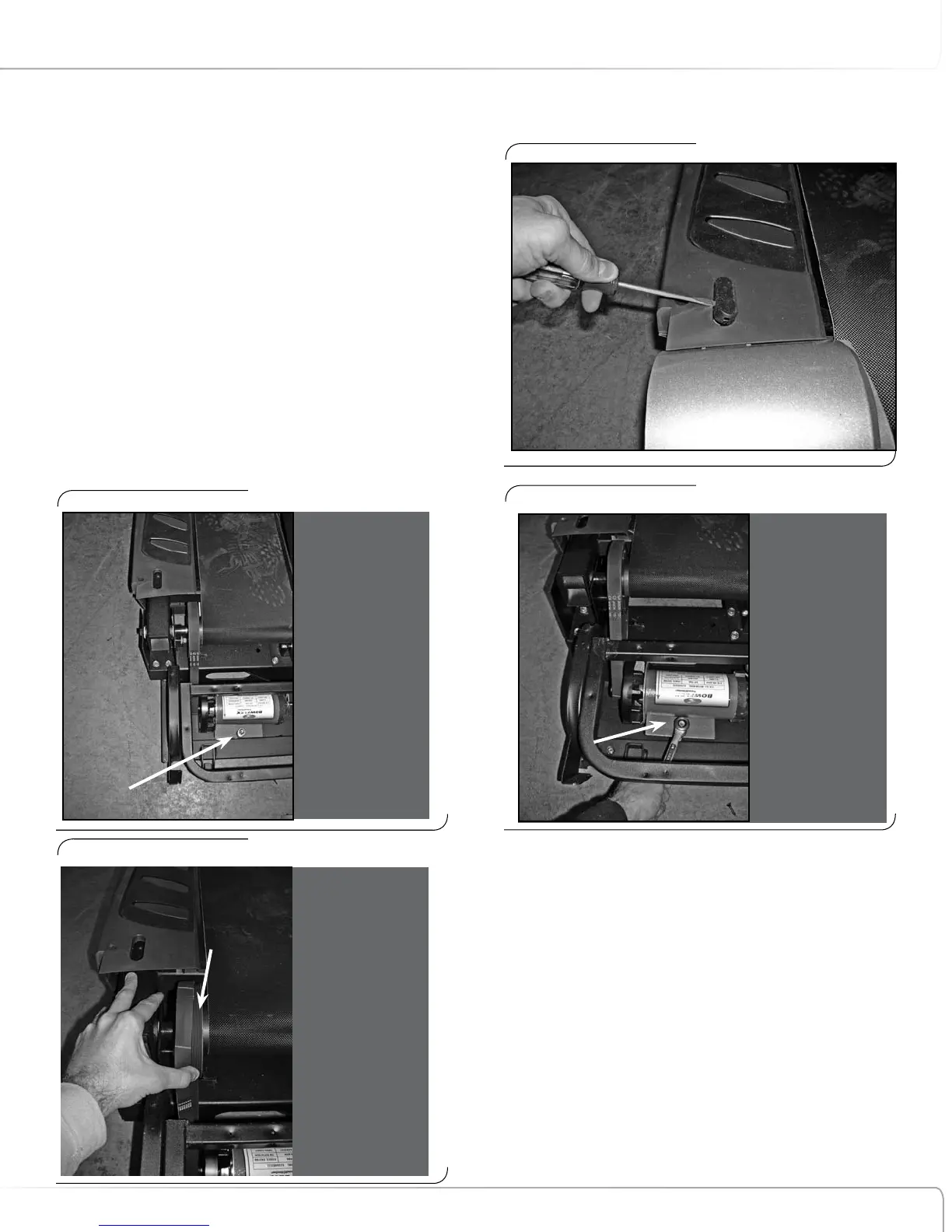

Figure 4:
Figure 6:
Figure 5:
Figure 7:
8-8 Ease new motor belt onto drive pulley and flywheel.
8-9 Once belt is tightly attached, re-tension the belt
by tightening tension bolt with a 1/2 inch wrench,
replace left cast cover, hardware plug, rear step,
rear plastic cover, and rear step plastic cover.
8-10 Recalibrate machine according to Appendix 3.
Motor Pan Bolt
Motor Pan
Bolt
Drive Pulley
