23
Bowflex
®
TreadClimber
®
Service Manual
10-17 Re-attach hydraulic cylinders to treadle frame.
10-18 Tension belts with Allen key (see Appendix 2).
10-19 Replace and tension motor belt (see Section 9.0
Replacing Motor Belt).
10-20 Replace cast covers and hardware plugs.
10-21 Replace rear step.
10-22 Replace 4 rear plastic covers.
10-23 Recalibrate machine according to Appendix 3.

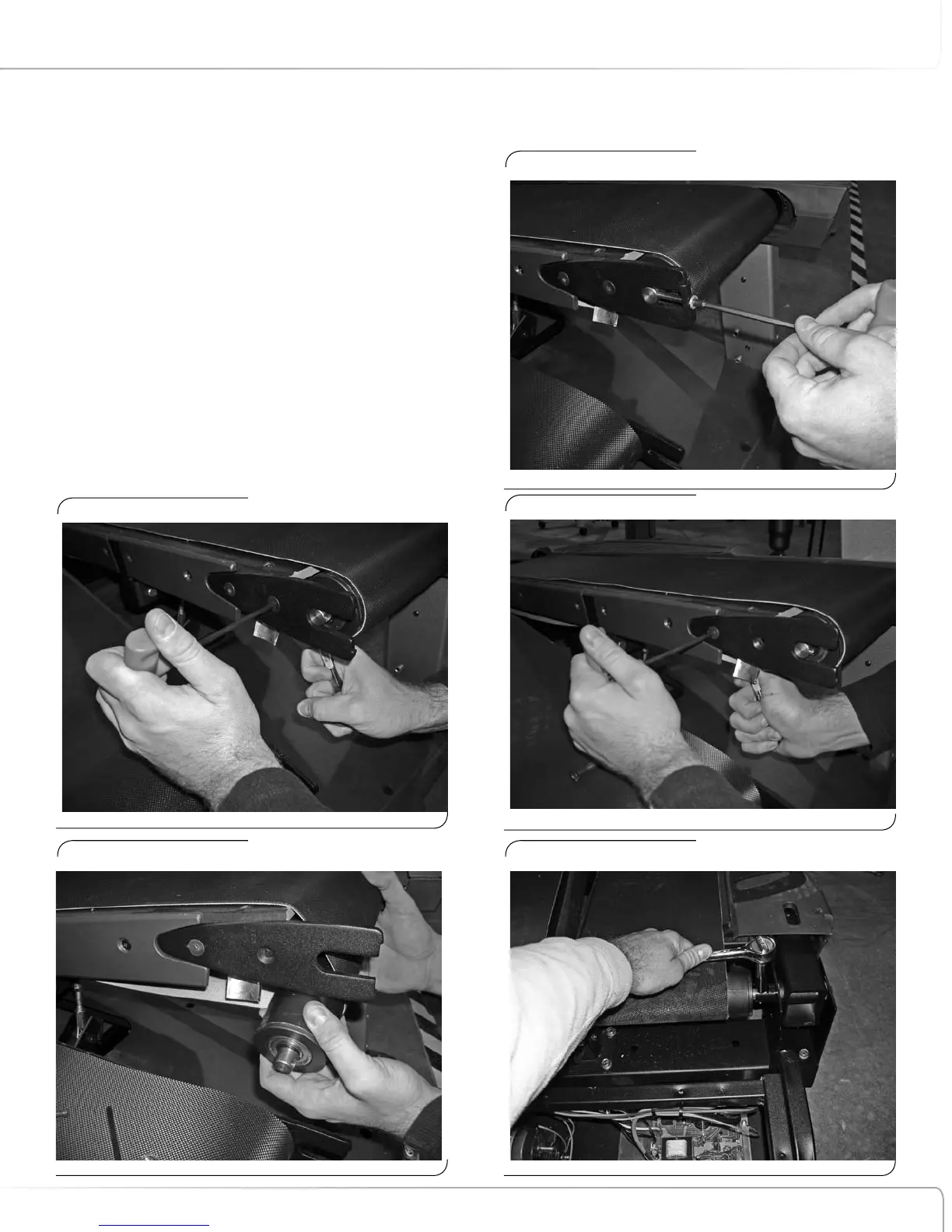

Figure 7:
Figure 8:
Figure 9:
MECHANICAL SERVICE GUIDE
Figure 10: Figure 11:
