40
Accessing the LED Board
Tools Needed:
• Phillips Screwdriver
• 1/2 inch wrench
NOTE: If using a powered driver, it must be on the “LOW
TORQUE” setting, otherwise it will strip screws.
Step 1 Unplug machine from wall outlet.
Step 2 Wait 5-minutes after unplugging machine to
ensure there is no residual power.

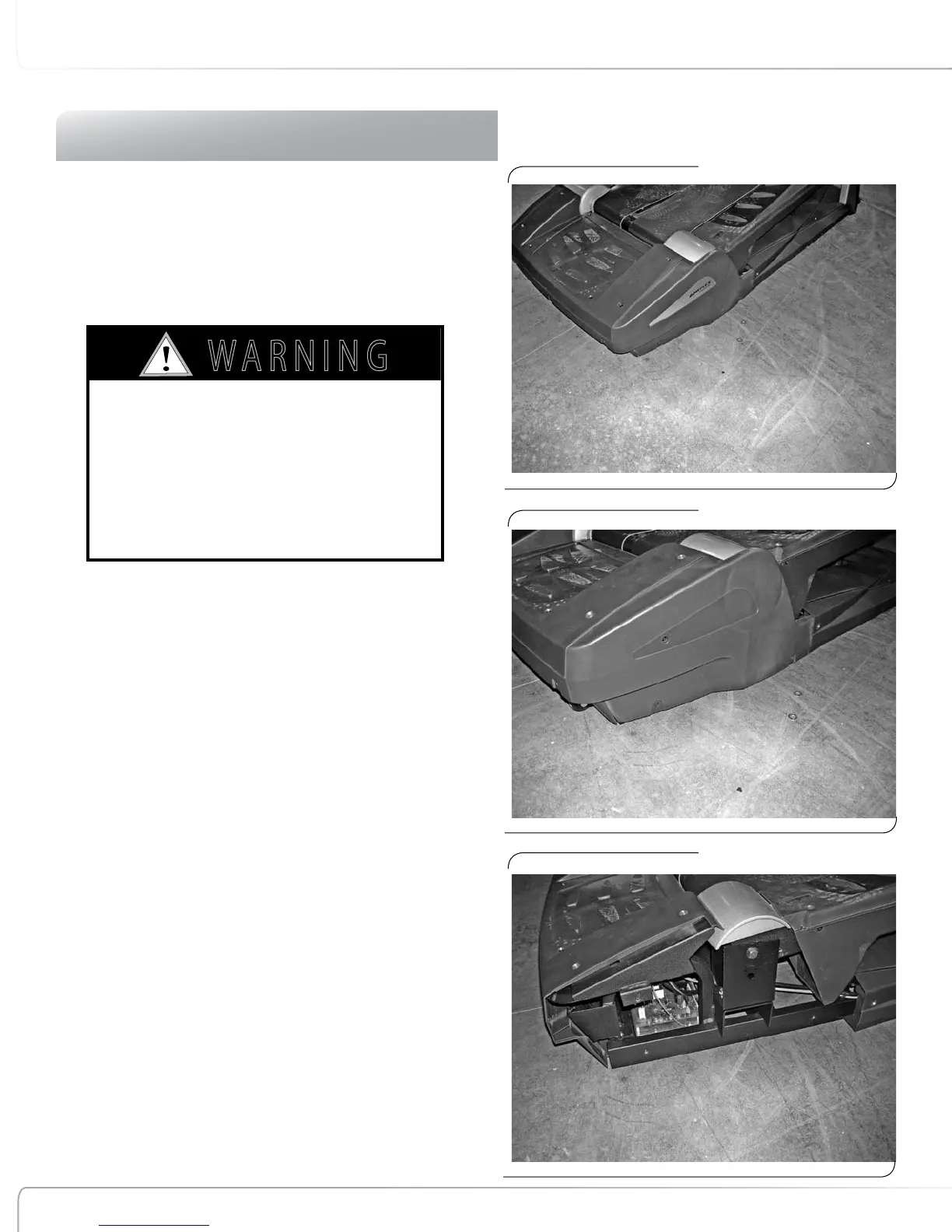

Step 3 Remove right rear base decal. See Figures 1.
Step 4 Remove right rear base plastic cover (3 screws).
See Figure 2 and 3.
Step 5 Refer to the LED Diagnostic chart on the
following pages to diagnosis LED lights.
TC5300/TC6000 DIAGNOSTICS
Figure 1:
Figure 2:
Figure 3:
AS LONG AS THE TREADCLIMBER® FITNESS
MACHINE IS PLUGGED INTO A POWERED OUTLET
AND THE POWER SWITCH IS ON, THE UNIT IS
RECEIVING POWER, EVEN IF THE DISPLAY IS
TURNED OFF. ALWAYS UNPLUG THE POWER CORD
FROM THE OUTLET AND WAIT 5-MINUTES BEFORE
PERFORMING REPAIRS OR MAINTENANCE.
7 ! 2 . ) . '
! 4 4 % . 4 ) / .
$ ! . ' % 2
)--%$)!4%!#4)/.2%15)2%$
# ! 5 4 ) / .
