7

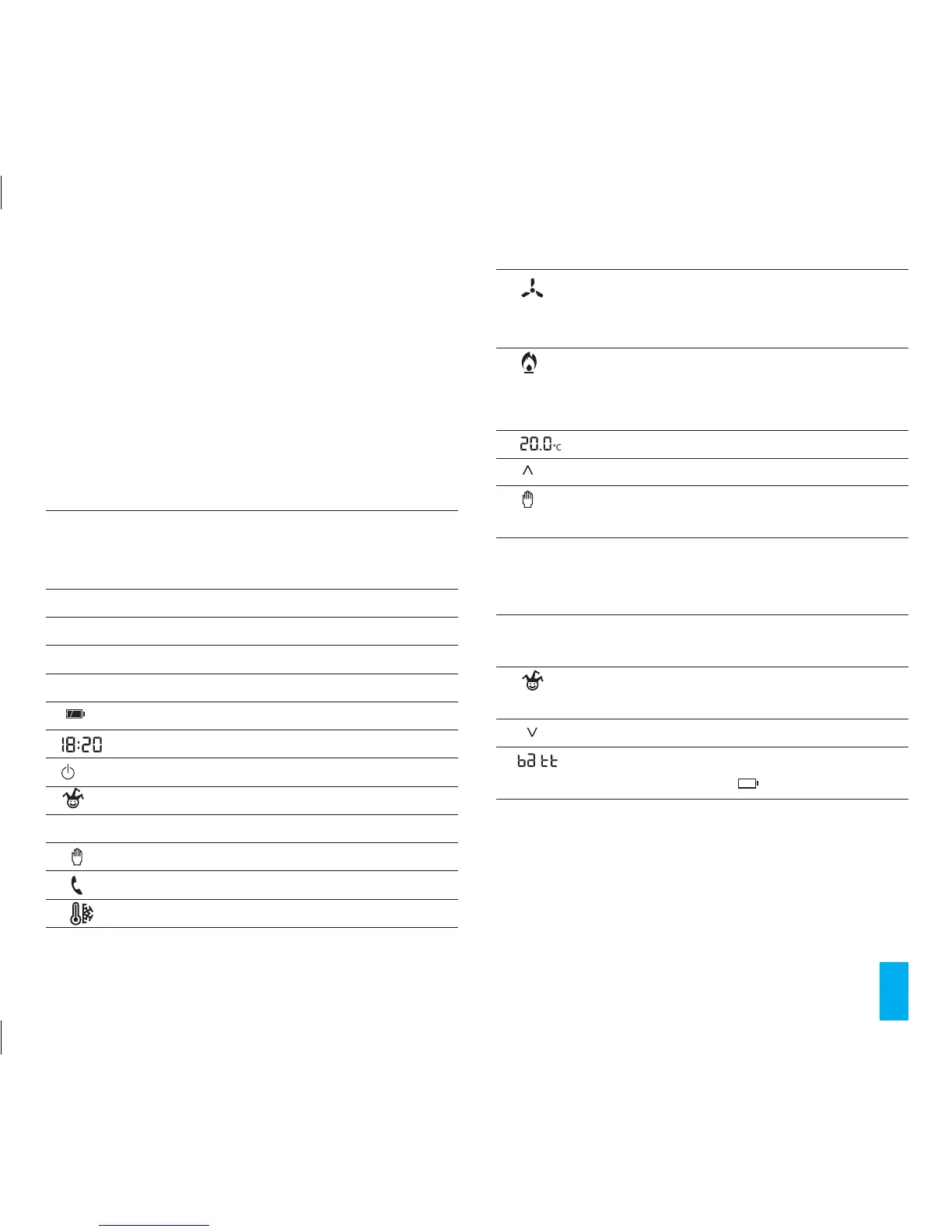

SYMBOLS AND EXTERNAL CONTROLS (see fig. 1)
ATTENTION. To turn on the backlight simply press any
key. To enter one of the selected functions (e.g. setting the
clock, etc.) the appropriate button will need to pressed
twice.
The backlight stays on for 15 seconds after the last press
of a button.
INFORMATION DISPLAYED
1
0 ÷ 23
Program display for the hours..
The flashing cursor indicates the hour corre-
sponding to the clock time.
2 Temperature range T1.
3 Temperature range T2.
4 Temperature range T3.
5 1÷7 Select the day.
6 Battery charge status.
7
Digital clock.
8 System bypass.
9 All-purpose programme activation.
10 Start-up and shut-down delay periods.
11 Manual operating mode.
12 Remote activation.
13 Protection against frost.
15 COOLING programme.
When the cooling system is in operation this icon is
animated.
15 HEATING programme.
When the heating system is in operation this icon is
animated.
16
Digital clock.
17 Button to increase temperature, time, etc.
18
Button to select MANUAL or AUTOMATIC oper-
ating mode.
19 Temperature sensor.
ATTENTION. Avoid touching the sensor so as not
to distort the temperature reading.
20 Tab for extracting the main unit of the thermo-
stat from the back-box.
21 ALL-PURPOSE or MANUAL TIMER-CONTROLLED
programme activation button.
22 Button to decrease temperature, time, etc.
23 When this warning appears, it means that the
batteries are exhausted
.
