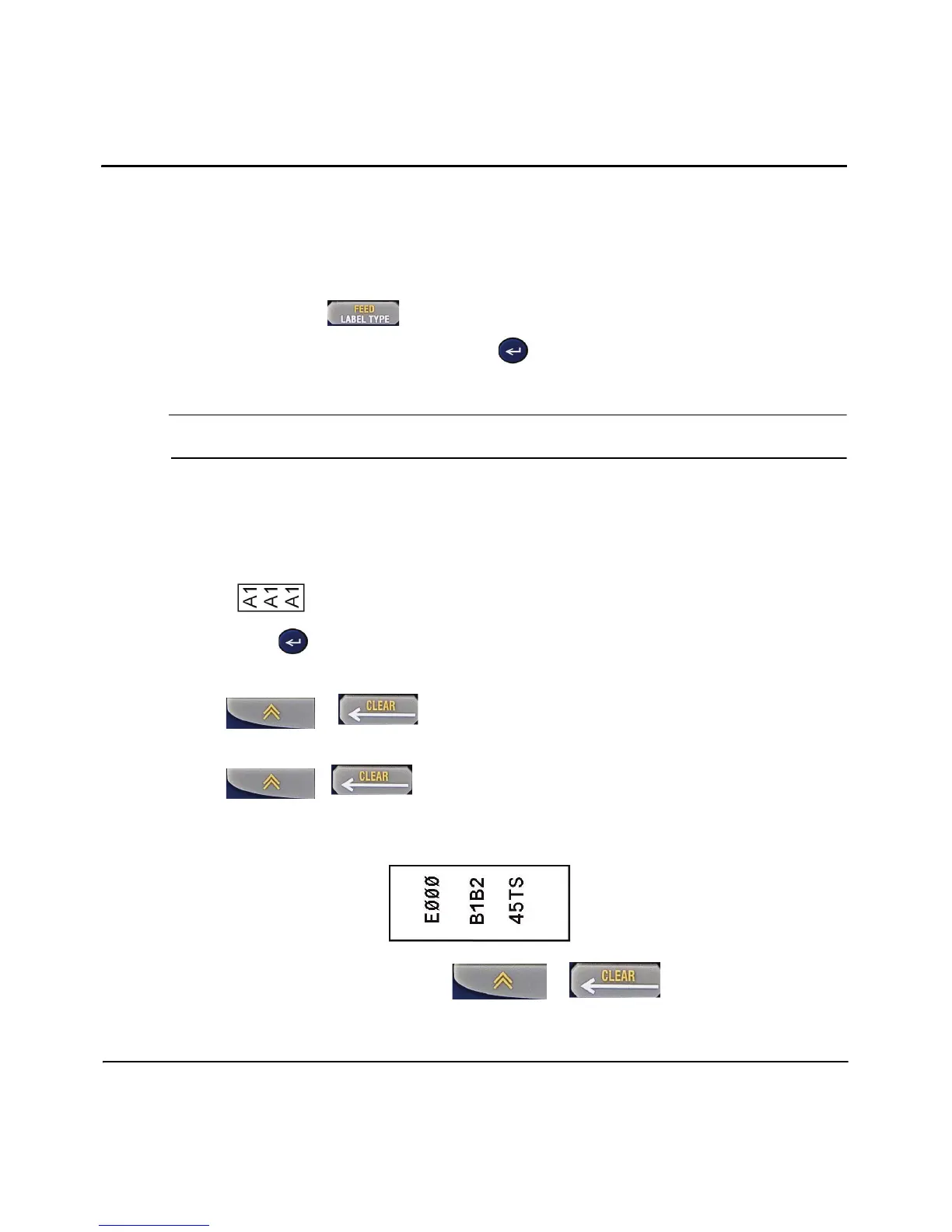

Brady BMP21 - Creating Terminal Block Labels without Serialization

Creating Fixed-Length label with Autosize
10 BMP21 User Guide
Creating Terminal Block Labels without Serialization*
*Use part numbers M21-375-499 or M21-500-499 when performing this procedure.
1. Press Label Type .
2. Select Terminal Block and press Enter .
3. Press
X until screen reads: Spacing = .2”.
Note: Press X to the flashing cursor and enter the desired spacing.
4. Press T to Serial, then X until the screen reads: OFF.
5. Press
T to # of Terminations, until the screen reads: 3 or Type: 3.
6. Press
T to Rotations, then X until the pictures displays a vertical
legend .
7. Press Enter .
8. Type: E000, then press Print.
9. Press + , then type: B1B2.
10. Press Print
11. Press + , then type: 45TS
12. Press Print
13. Cut the label.
14. Clear text from the screen: Press + .
