Braillo 200 - Return Springs, Adjustment

BRAILLO M NORWAY AS B 200
40
3.9 Return Springs, Adjustment

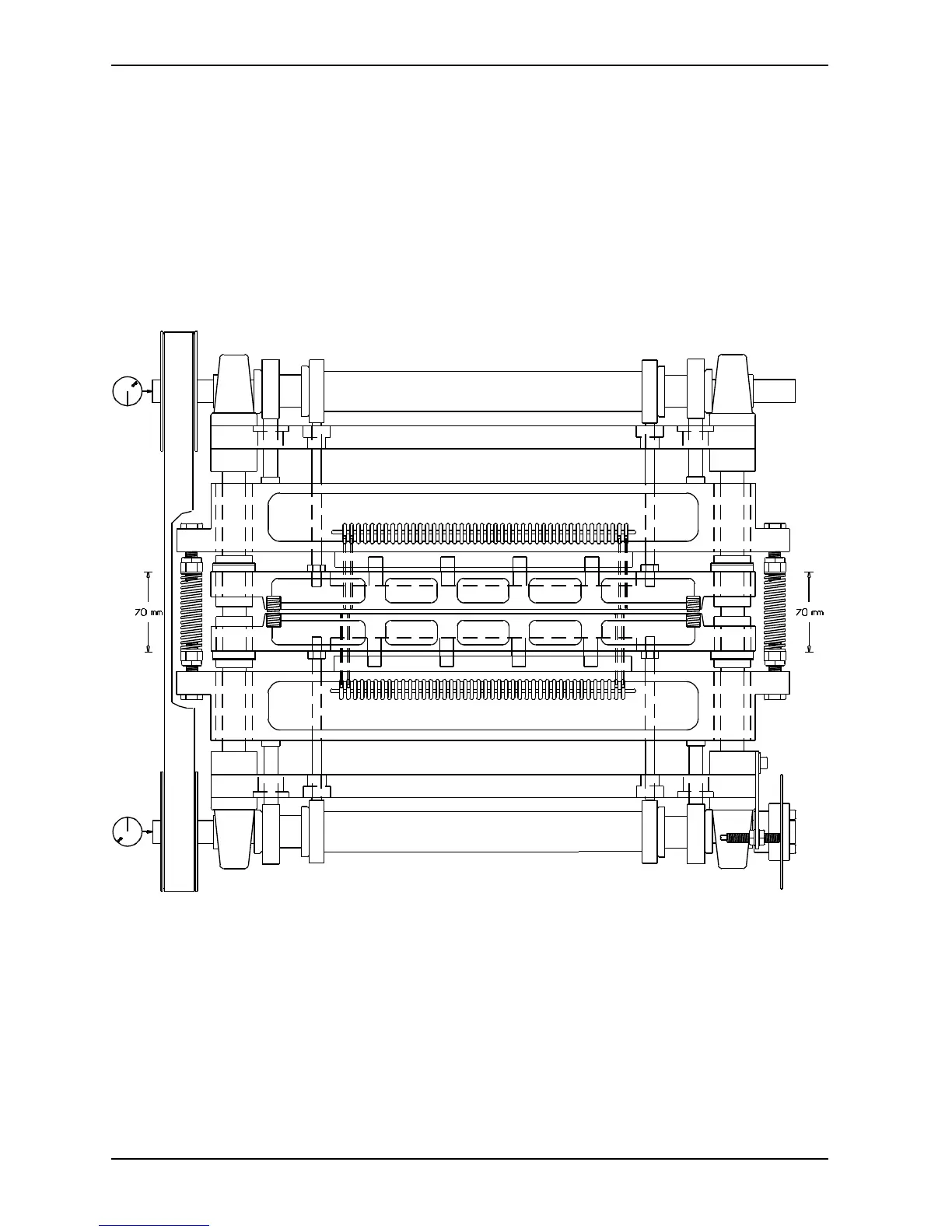

The adjustment has to be done when the shafts are in this position. See the marks at the end of the shafts
on the figure below.
