3.12 Main Sensor Wheel, Adjustment

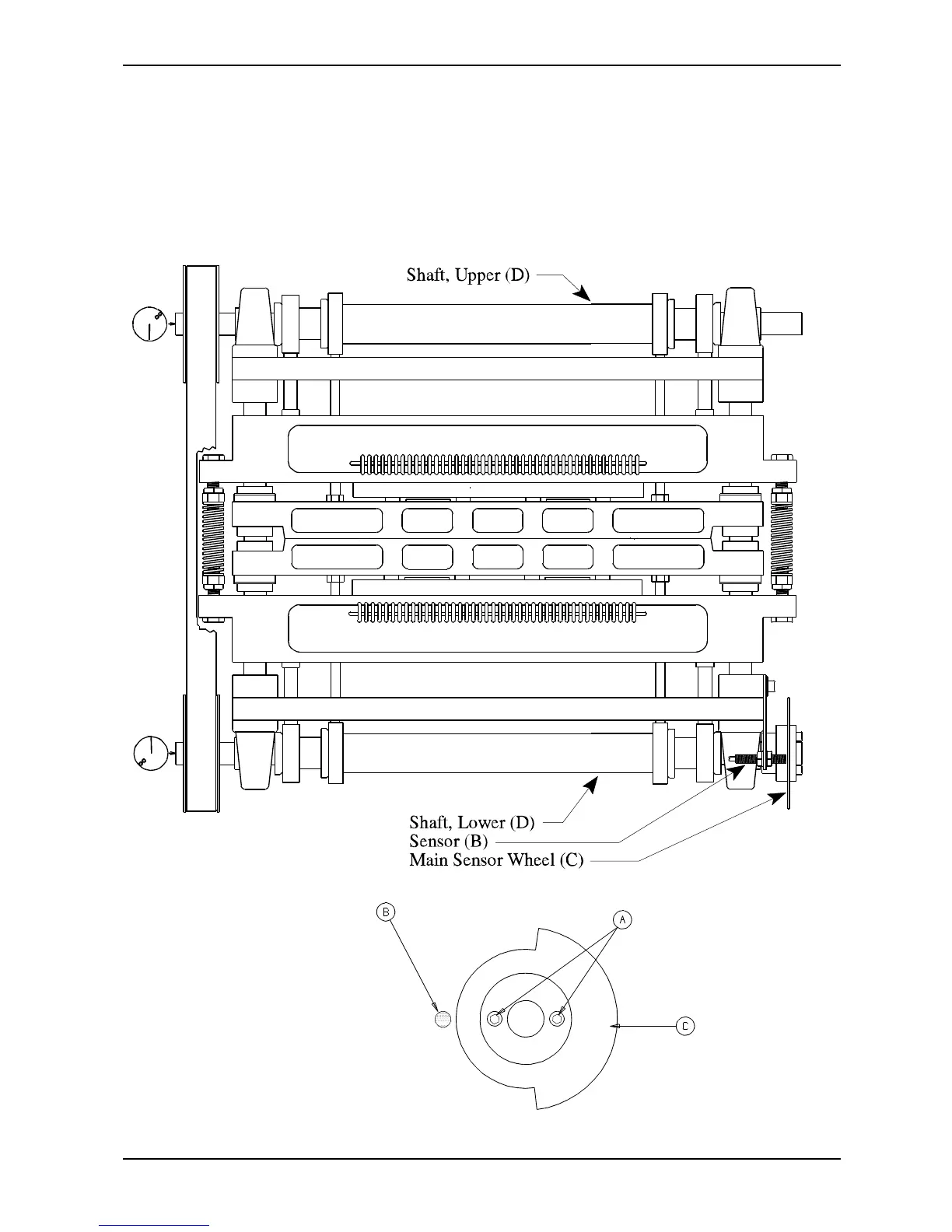

Turn the belt, so the marks at the end of the shafts (D), is pointing towards each other, as shown on the
figure below.
Loosen the screws (A), turn the sensor wheel (C), until the sensor (B) is situated in the middle of the open
part of the sensor wheel. See figure below.
