3.10 Eccentrics, Adjustment
After taking off the belt, it is necessary to align the eccentrics.

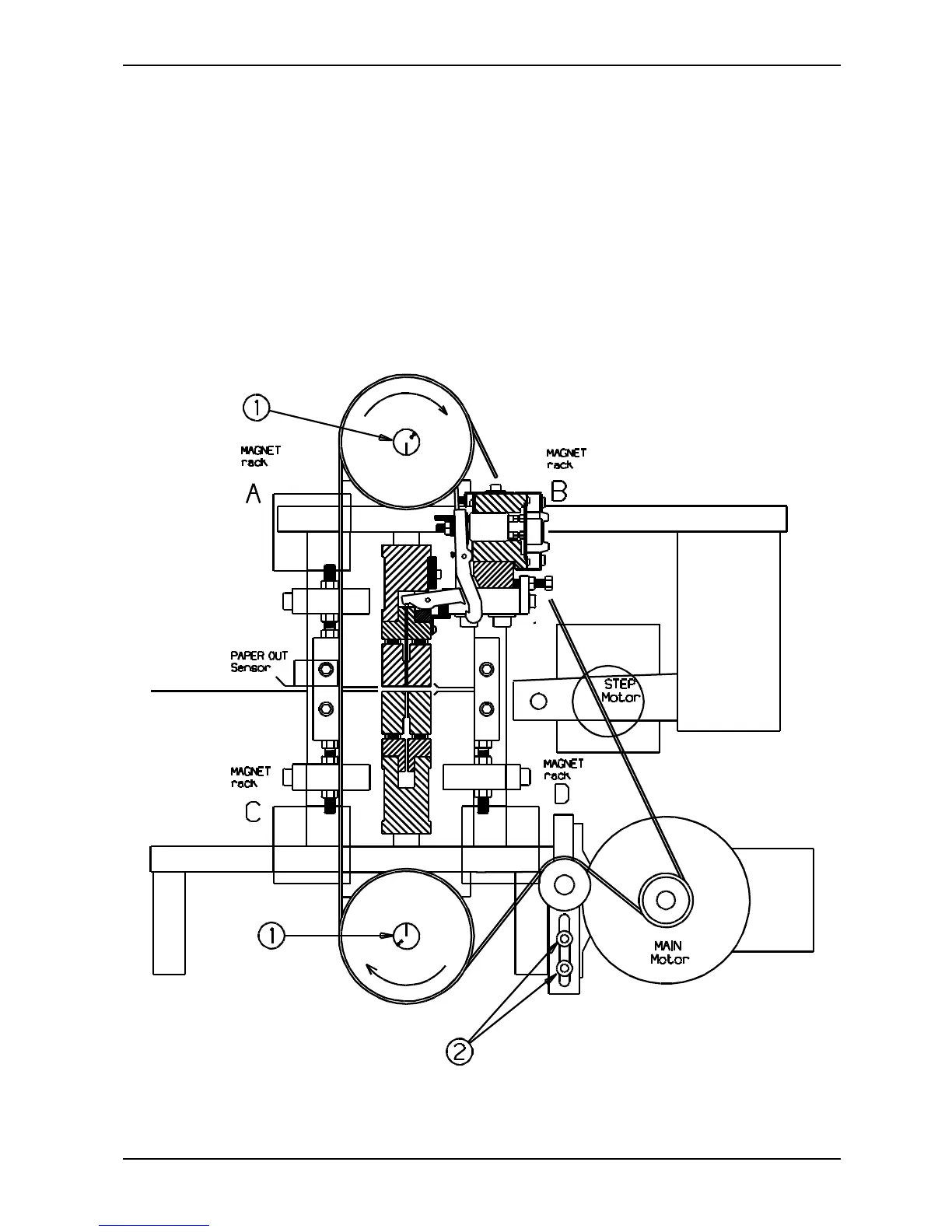

Put the belt back on, tighten it with the belt tightening wheel (2), and check that the marks at the end of
the shafts (1) are pointing towards each other. See figure below.
If the marks are not aligned like on the figure, it might be necessary to move the belt a notch or two on
one of the wheels.
