3.11 Paper Shoes, Adjustment
Place a sheet of paper between the paper shoes (P).

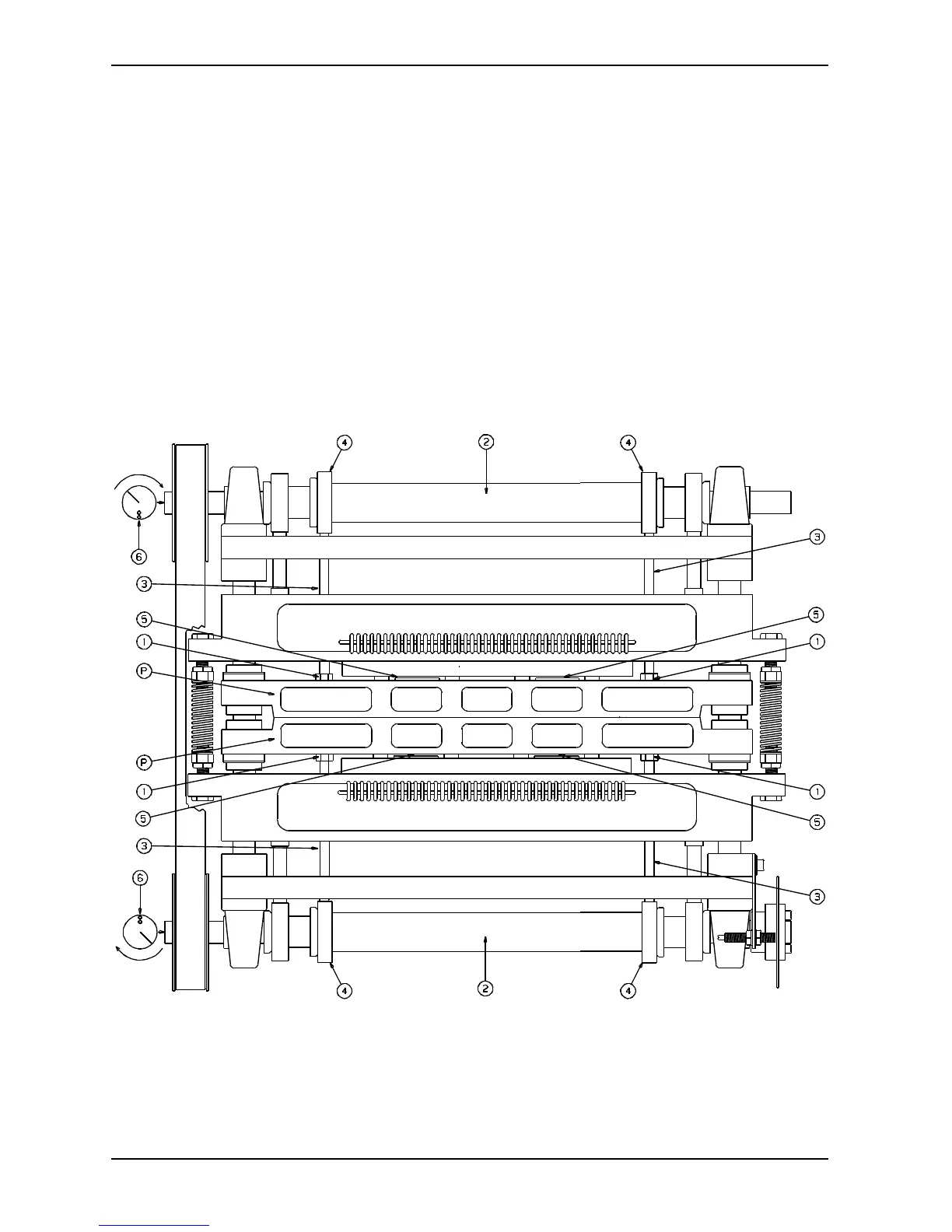

Turn the belt so the two points (6) at the end of the shafts (2) is pointing towards each other as shown on
the figure below.
Lock the shafts in this position with a wrench, e.g. at the end of the shaft (2).
Loosen the locking nuts (1), adjust the push rods (3) by turning them. Adjust it against the inner eccentric
bearing (4) until the paper shoes (P) have a light pressure on the paper.
Check that the gap (5) between the press plates and the beam above, is equal on both upper and lower
units.
Secure the push rods (3) with the locking nuts (1).
