3.13 Paper Feed Mechanism, Adjustment
An adjustment on the relation between the top margin and the bottom margin on a page which is full of
text, could be done like this:

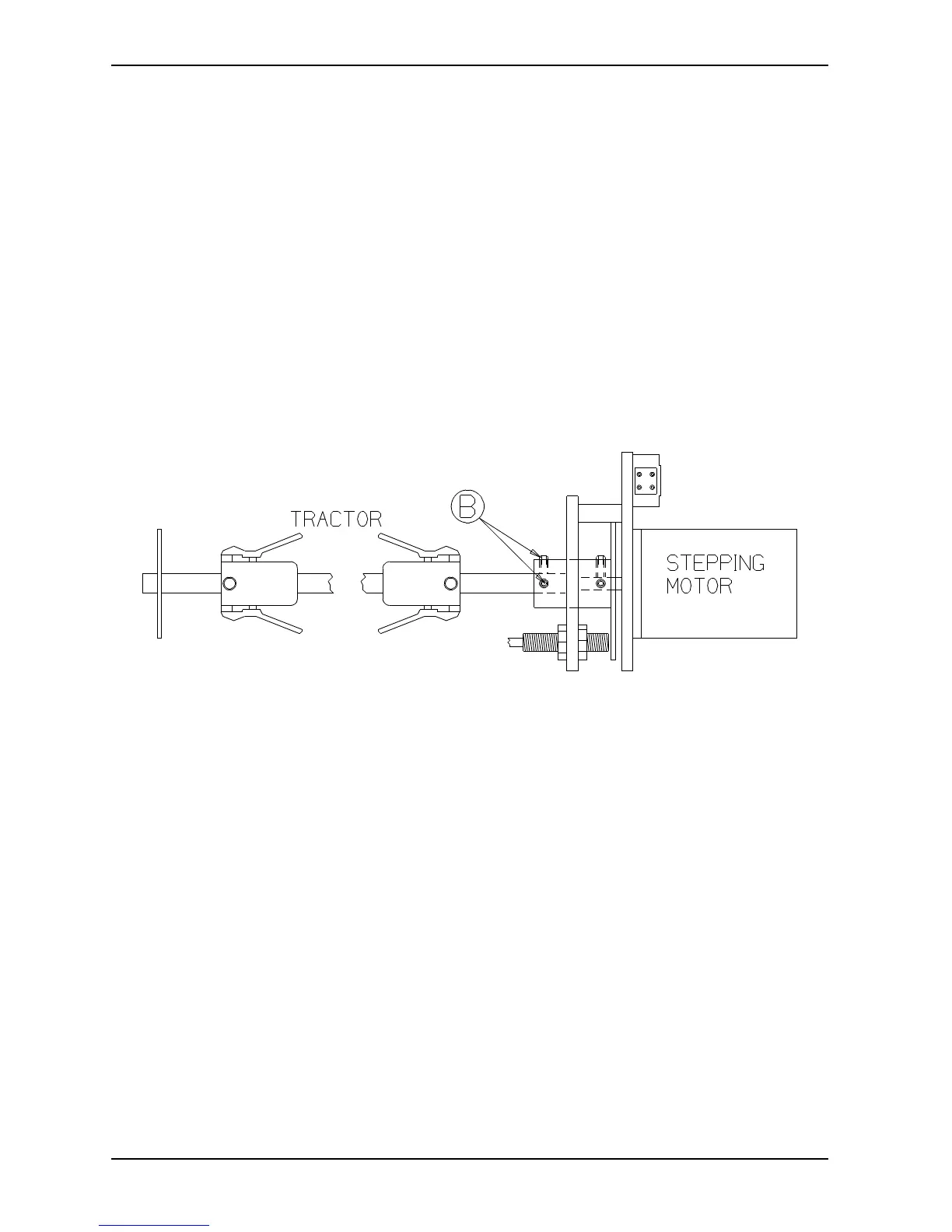

Loosen the tractor feed shaft by unscrewing the two left-hand screws (B) on the sensor wheel.
Note ! Do not loosen the screws for the stepping motor shaft.
Now the tractor feed shaft can be turned forward or backward until the paper is in the wanted position.
Note ! The marks to indicate the positioning of the paper on the paper guide, will not be accurate after
this adjustment.
