CHAPTER 6 HYDRAULIC SYSTEM
6
3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR

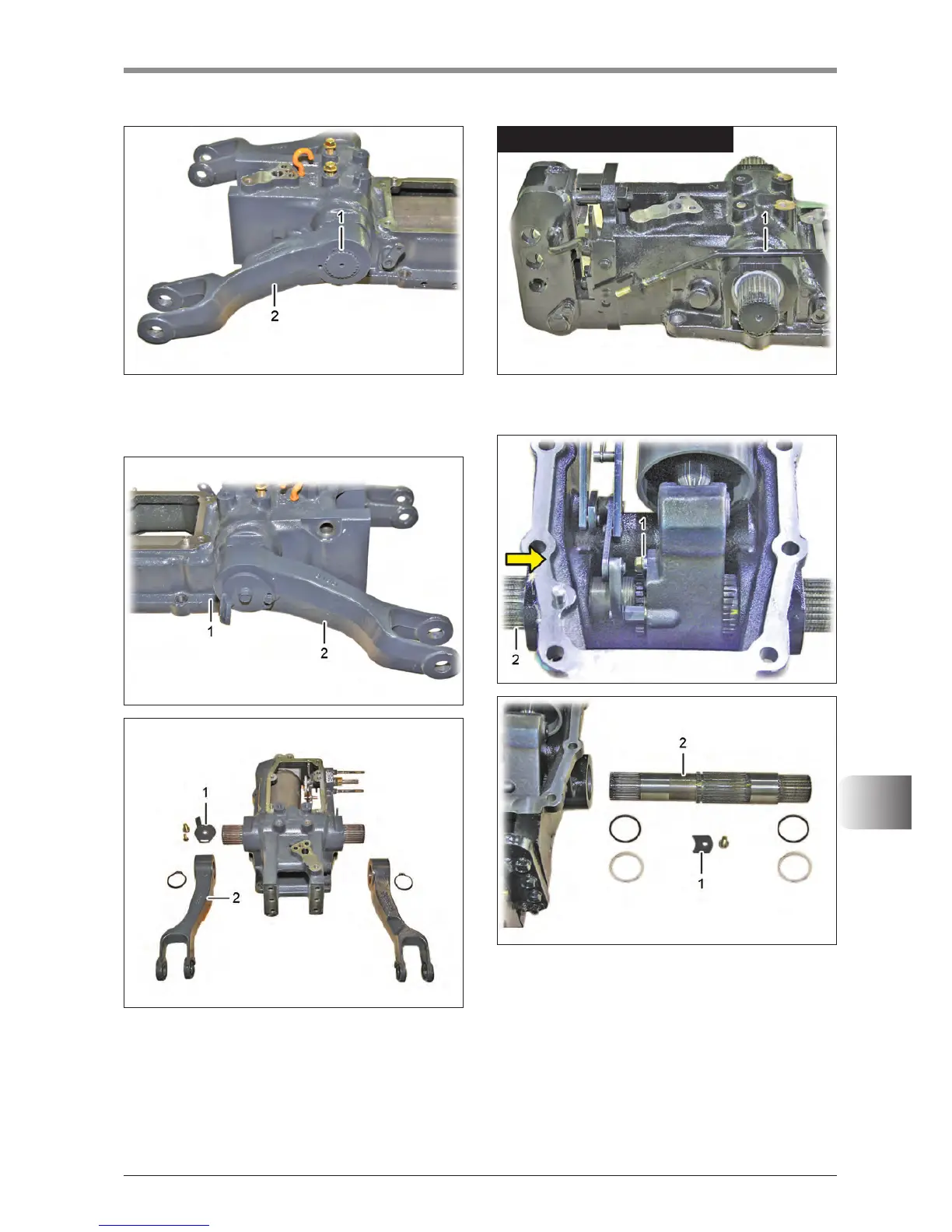

9. Pull out the snap ring (1) from the right side.
Then, disconnect the lift arm (2).
K42W622A
10. Remove the cam assembly (1) from the left side
and pull out the snap ring. Then, disconnect the
lift arm (2).
K20W6A19A
K20W6A20A
12. Unscrew the plate (1) and pull out the lift link
shaft (2) to the right.
K25W6A18B
11. Disconnect the draft control rod (1).
K42W623A
K42W624A
POSITION/DRAFT CONTROL TYPE
