The service menu shows the 10 most recent fault messages.
In the event of a locking fault, the settings menu and the re-
adout menu are blocked and only the service menu can be
opened. Pressing the ‘menu’ key directly opens the service
menu.
The service menu can be called up as follows:

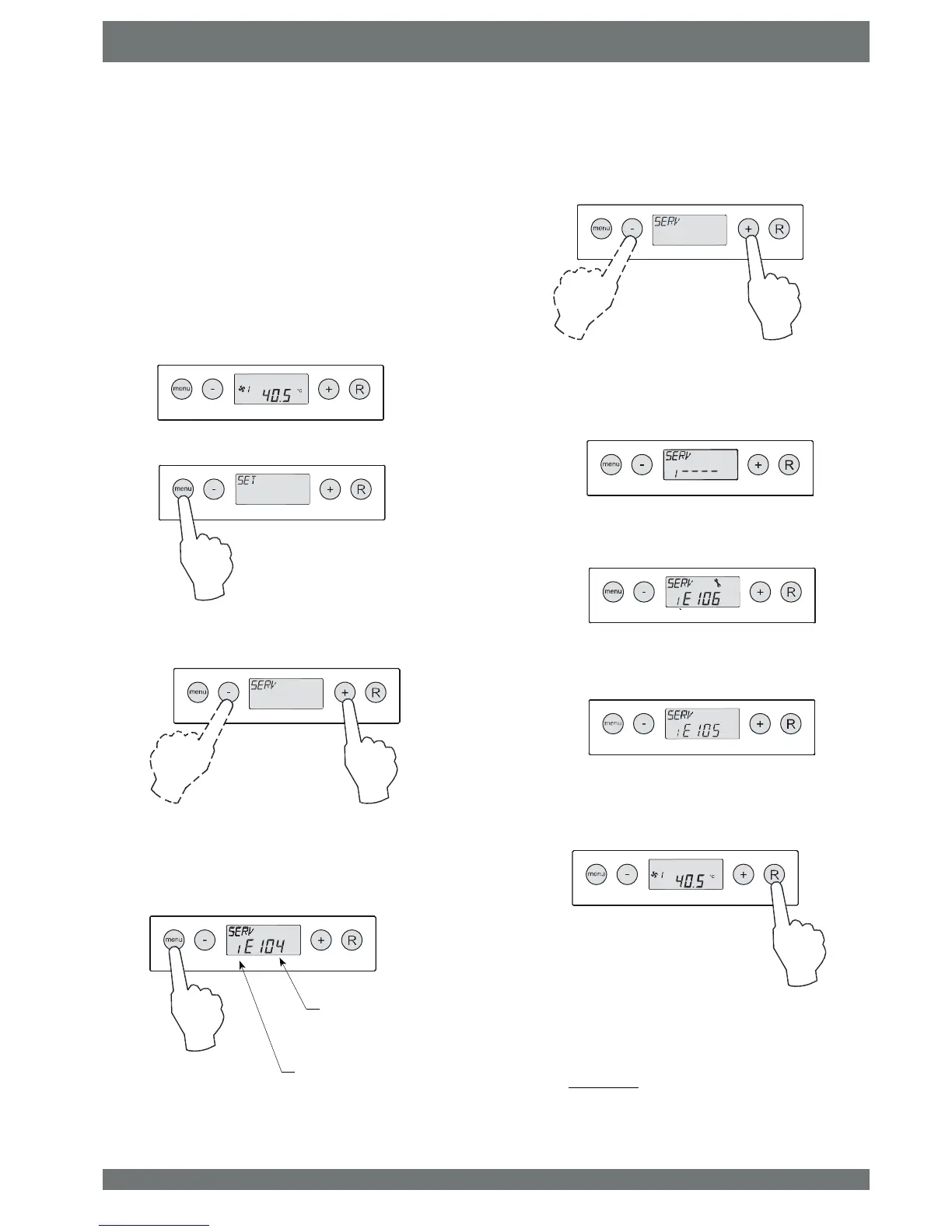

1. In operating mode, press the ‘MENU’key. The display now
shows the settings menu.
2. Use the ‘+’ and ‘-’ keys to go to the service menu.
3. Activate the service menu.
4. Use the ‘+’ and ‘-’ keys to scroll through the messages in
the service menu.
  'LVSOD\QRWDQ\IDXOWPHVVDJH
&XUUHQWIDXOWPHVVDJHVSDQQHURQGLVSOD\
-
Solved fault message (no spanner on
  GLVSOD\
5 Press the ‘R’ key twice to go to operating mode.
If no key is operated during 5 minutes, the appliance auto-
matically returns to operating mode.
All fault messages can be deleted by pressing the “R” key in
the service menu during 5 seconds; This is only possible when
there is no active fault!
6.5 Service menu
Fault code; for
fault code explanation
see §8.1 and § 8.2
1o. fauOt message
Settings menu
Operating mode
Service menu
Operating mode
2 x
