BRINKS BC40107 - Door Preparation and Latch Installation; Door Preparation; Door Jamb Preparation

2

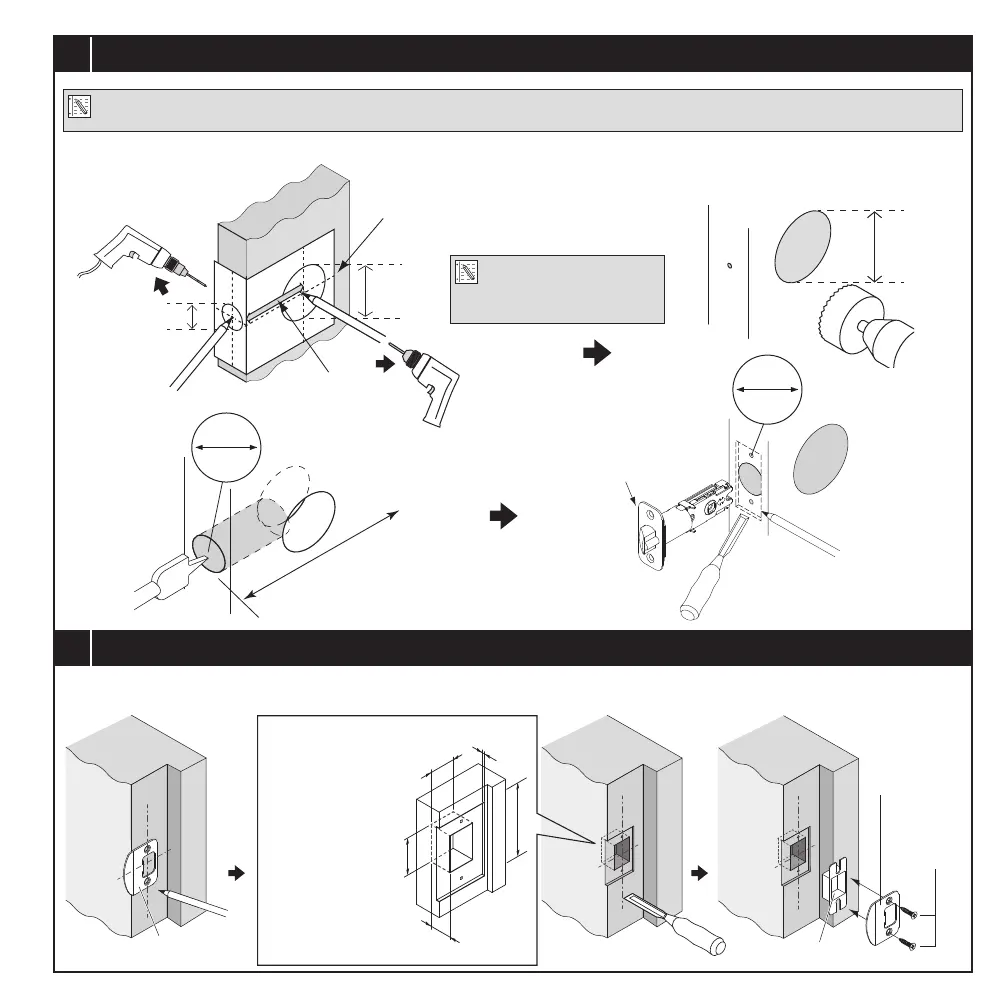

Door Jamb Preparation
Prepare the door jamb – use the strike plate as a template to drill 1/8" screw holes and chisel out the mortise. The
strike plate must t ush with the surface of the door jamb.
NOTE: If your door is pre-drilled, check the hole sizes to make sure they are the proper size. If they are the proper
size, skip to Step 3.
1
Door Preparation
Depth of latch hole
Outline
Faceplate (M)
Chisel 5/32” (4 mm) deep
NOTE: Drill from both
sides of the door to
prevent wood splitting.
Use the included template to mark the door and drill holes, and the latch (E) to chisel out the mortise.
Backset
Centerline
1"
25 mm
1"
(25 mm)
2-1/8"
(54 mm)
2-1/8"
(54 mm)
a.
c. d.
b.
Door jamb hole dimension:
a. 1/2" (13 mm)
b. 1-1/4" (32 mm)
c. 1" (25 mm)
Strike dimension:
d. 1/8" (3 mm)
e. 2-5/16" (58 mm)
f. 1/8" (3 mm) X 2
Strike Plate
(K)
Dust box (L)
Strike Plate (K)
c
b
a
d
e
Strike
Screws
(EE) (2)
1/8"
3 mm
2X
PAGE 3
