BRINKS BC40107 - Set Exterior Spindle (Left Hand); Set Interior Spindle (Left Hand)

6C

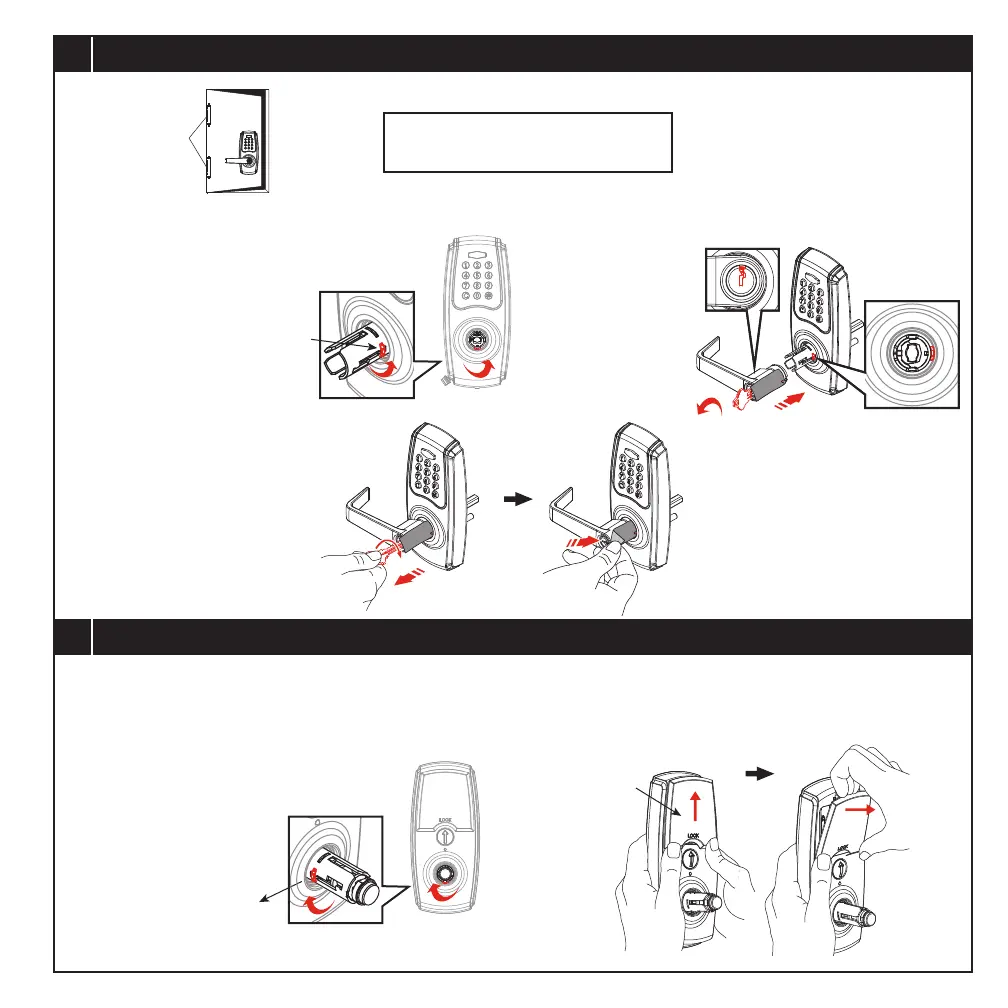

Setting the Exterior Spindle — (Left Hand Door)
6D
Setting the Interior Spindle — (Left Hand Door)
90°
90°
C1. Rotate the exterior spindle counter-clockwise
90 degrees until it clicks into place.
The lever catch will
face away from the
hinges of the door.
C2. Align the exterior lever assembly with the spindle.
Rotate the key 90 degrees counter-clockwise. Insert
the lever onto the
spindle until it
clicks into place
on the lever
catch.
C3. Rotate the key 90 degrees
clockwise back to its home
position and remove.
Remove the label.
Lever catch away
from hinges
Exterior
Assembly (C)
D1. Rotate the interior spindle clockwise 90 degrees
until it clicks into place. The lever catch will face
away from the hinges of the door.
D2. Remove the battery cover (I) from the interior assembly
(G) by lifting it up and pulling out from its top and set it
aside.
Hinges
Left Hand
Door
Interior
Assembly (G)
Battery
Cover (I)
Lever catch
away from
hinges
After installation, the exterior lever will
point towards the hinges of the door.
PAGE 7
