BRINKS BC40107 - Set Exterior Spindle (Right Hand); Set Interior Spindle (Right Hand)

6A

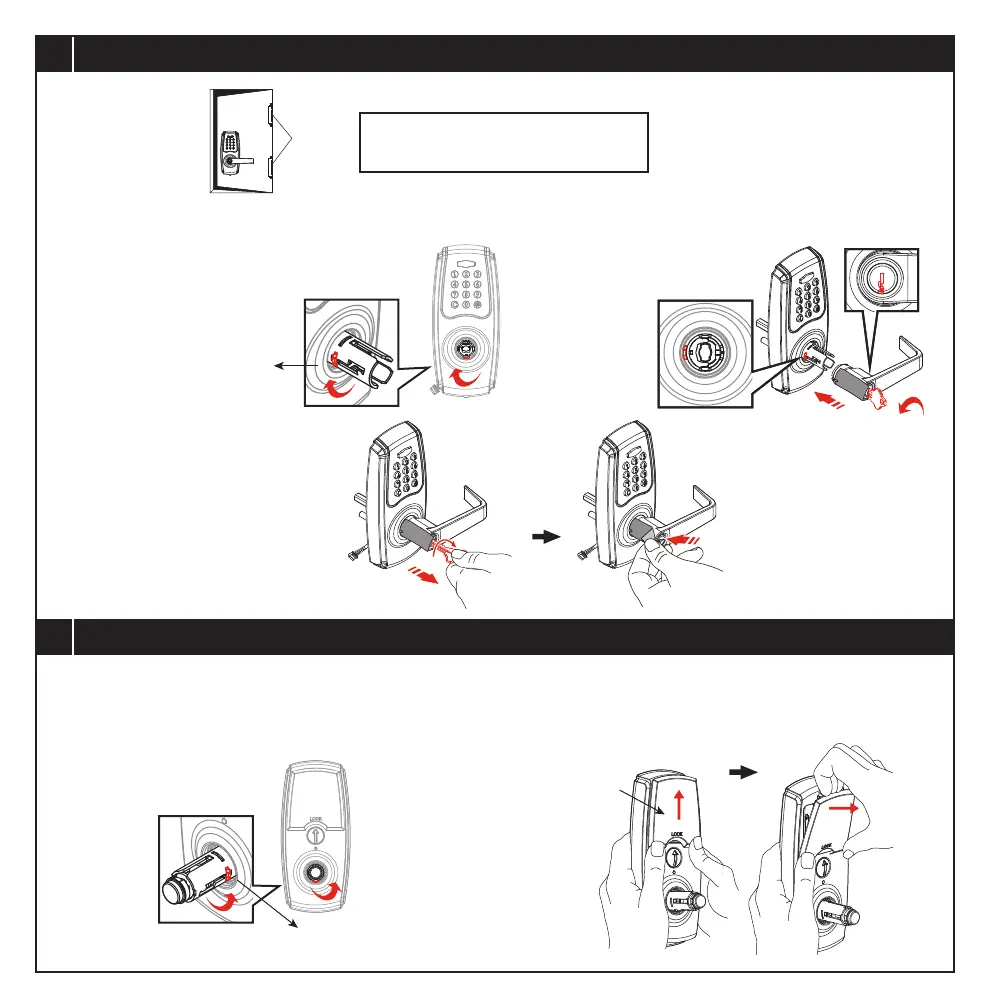

Setting the Exterior Spindle — (Right Hand Door) Note: If you have a left hand door skip to page 7.
6B
Setting the Interior Spindle — (Right Hand Door)
A1. Rotate the exterior spindle clockwise
90 degrees until it clicks into place.
The lever catch will
face away from the
hinges of the door.
A2. Align the exterior lever assembly with the spindle.
Rotate the key 90 degrees counter-clockwise.
Insert the lever onto the spindle
until it clicks into
place on the
lever catch.
A3. Rotate the key 90 degrees
clockwise back to its home
position and remove.
Remove the label.
After installation, the exterior lever will
point towards the hinges of the door.
Hinges
Right Hand
Door
Lever catch
away from
hinges
Interior
Assembly (G)
Battery
Cover (I)
Exterior
Assembly (C)
90°
90°
B1. Rotate the interior spindle counter-clockwise
90 degrees until it clicks into place. The lever
catch will face away from the hinges of the door.
B2. Remove the battery cover (I) from the interior assembly
(G) by lifting it up and pulling out from its top and set it
aside.
Lever catch away
from hinges
PAGE 6
