Be sure the bevelled face of the latch bolt
is towards the door jamb.
4

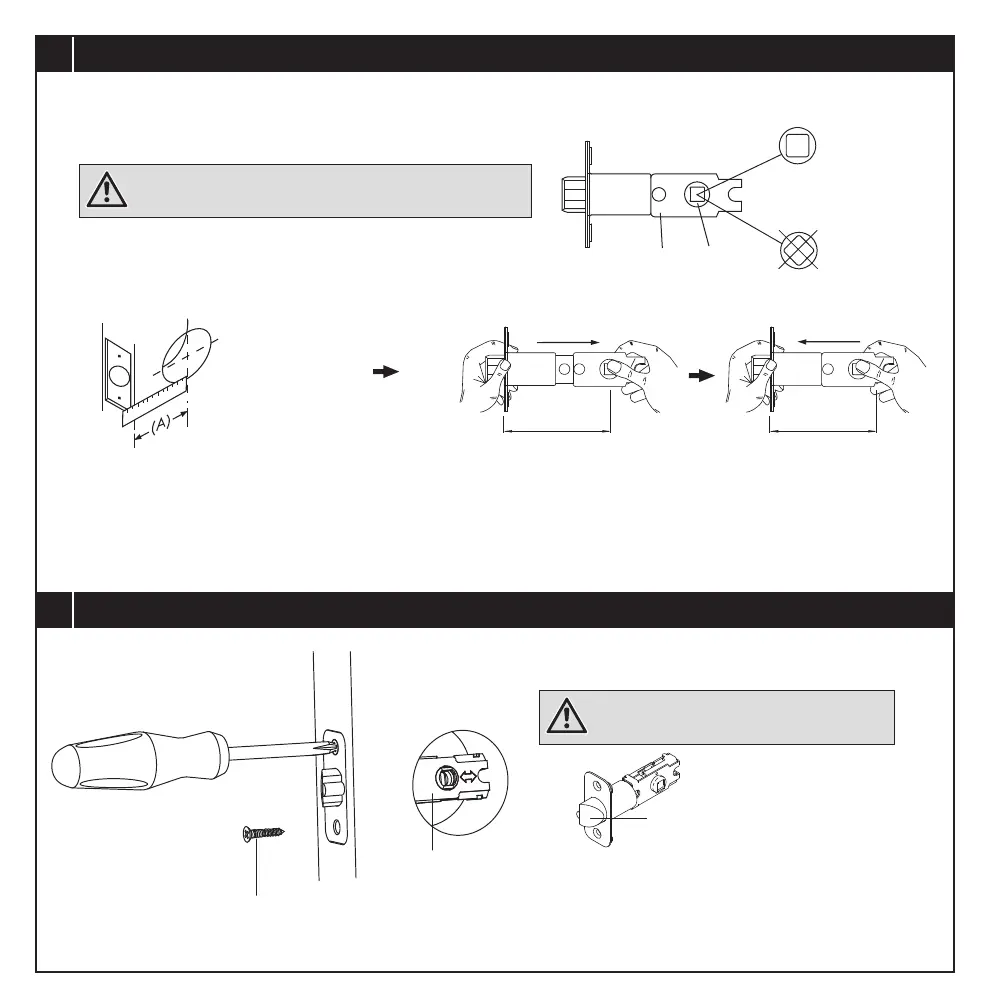

Install the Latch
CAUTION:
Be sure the latch cam is upright before making any backset adjustment.
3
Select the Proper Latch Backset
2-3/8" (60 mm)2-3/4" (70 mm)
2-3/8" - or - 2-3/4"
60 mm - or - 70 mm
a. c.
a. Backset is the distance from the door edge to the center of the 2-1/8" (54 mm) hole on the door face.
b. The latch (E) can be adjusted to t either a 2-3/8" (60 mm) or a 2-3/4" (70 mm) Backset by sliding the Cam
with the square hole towards or away from the latch. The 2-3/8" Backset is common for residential doors.
Sleeve Cam
Latch (E)
Right
Wrong
Latch Screws (EE)
Bevelled face of the bolt
a. Insert the latch into the 1" hole in the door edge as
shown.
b. Insert two Latch Screws (EE) through the holes in the
faceplate and tighten rmly.
Latch (E)
PAGE 4
