5

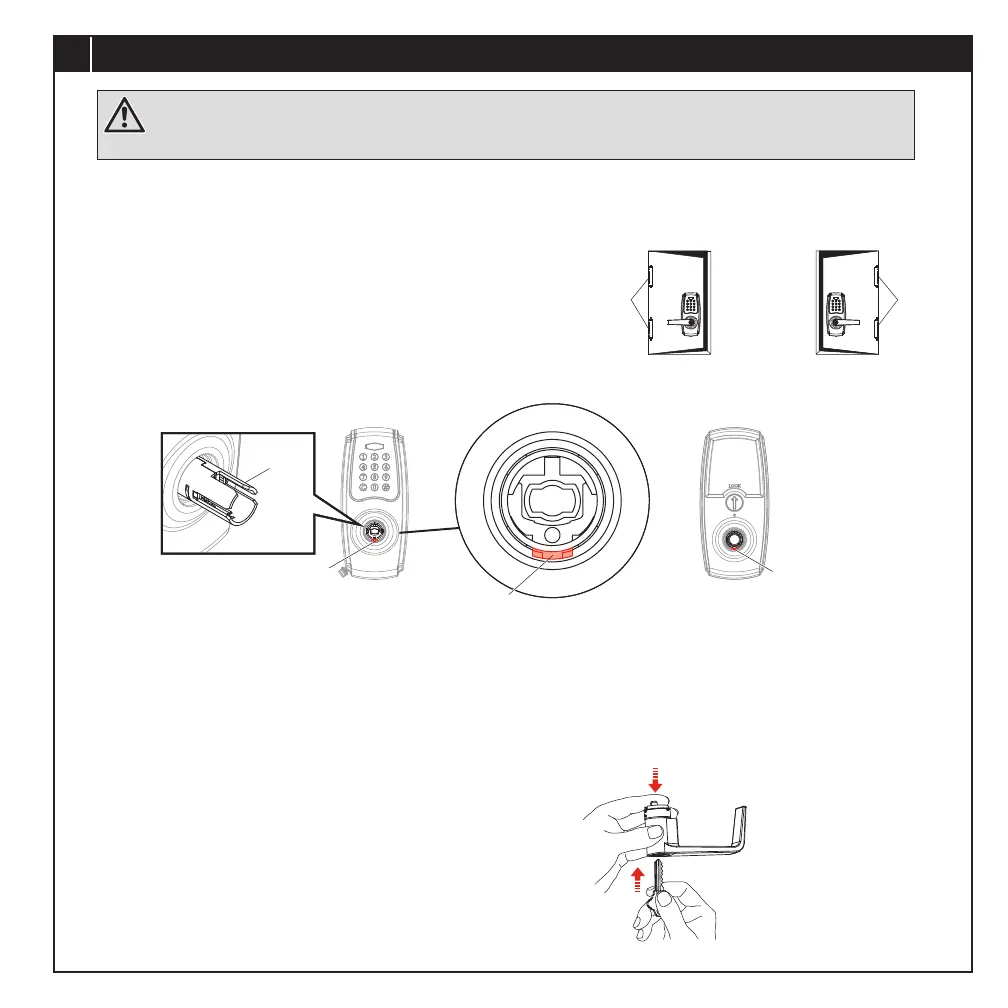

Preparation for Installation
5A. Determine the Handing of the Door
A1. As you stand outside the room looking at the exterior
face of the door:
• If the hinges are on the left, it is a Left Hand door.
• If the hinges are on the right, it is a Right Hand door.
The lever can be installed on doors that swing into a room
or swing out of a room.
A2. This leverset is packaged with the exterior & interior spindles in the neutral position (non-handed) with the lever
catch facing down.
A3. Both spindles must be set to the correct handed position in Step 6 before installation.
5B. Insert Key in Exterior Lever Assembly
B1. The exterior lever (J) has the cylinder (B) and collar (N) pre-installed. Insert the key (A) while holding the lever and
cylinder tailpiece together to prevent accidental component removal.
Do not remove the label on the lever until after installation.
HingesHinges
Exterior
Right Hand DoorLeft Hand Door
Spindle
Lever Catch
Lever Catch
Hold lever and tailpiece
to insert key
CAUTION:
DO NOT PROCEED WITH INSTALLATION WITHOUT SETTING THE EXTERIOR & INTERIOR
SPINDLES FOR THE HAND OF YOUR DOOR!
Lever Catch
PAGE 5
