6D
Setting the Interior Spindle — (Left Hand Door) (continued)
7

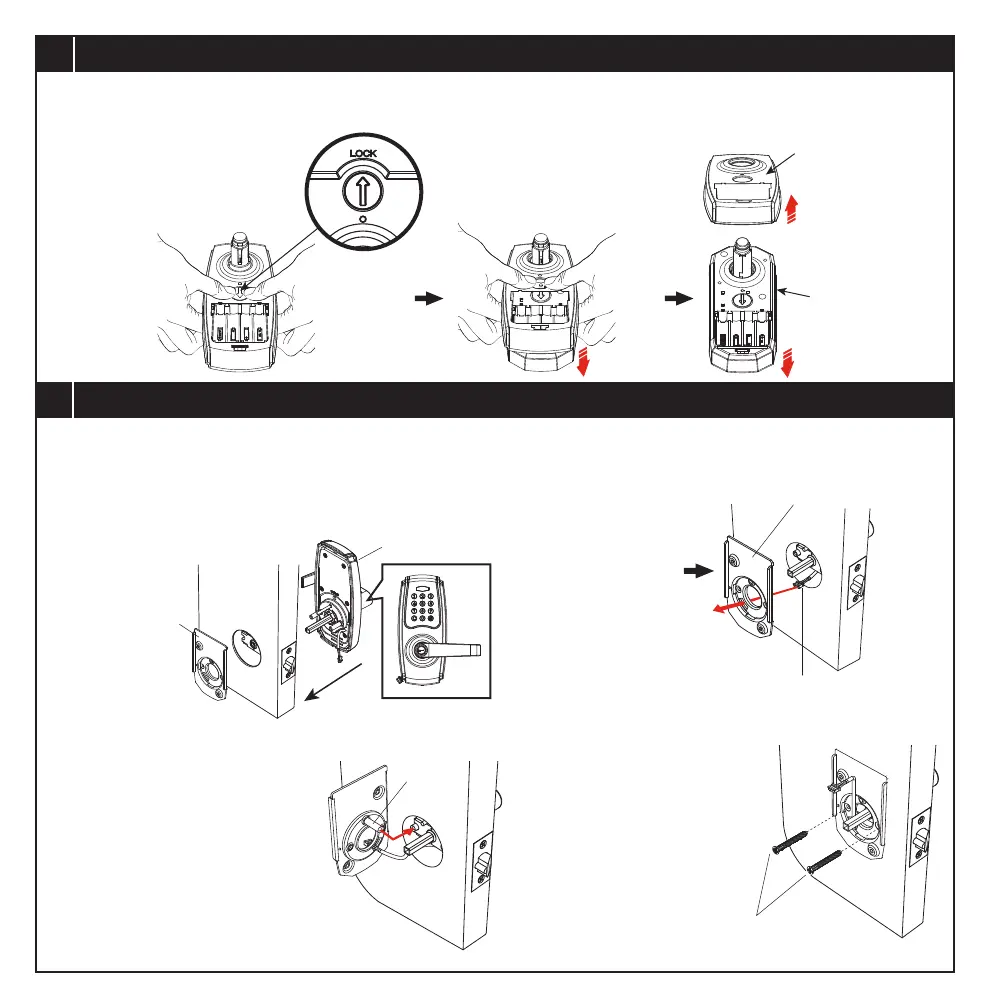

Installing the Exterior Assembly
(Right Hand door installation shown below)
A. Place the exterior assembly (C) against the exterior
face of the door while inserting its square drive
spindle through the square hole in the latch cam.
Run the power cable (D)
under the latch.
B. Insert the power cable though the slot in the
mounting plate (F).
C. Orient the alignment
post of the mounting
bracket with the
corresponding post on
the exterior assembly
and press the mounting
bracket against the
interior door face.
D. Insert two mounting plate
screws (BB) through the holes
in the mounting plate and
engage the screw posts of the
exterior assembly. Tighten
rmly. Check to make sure
that the exterior assembly
does not look crooked with
respect to the door.
3. Remove the decorative cover (H) from the interior
assembly by pressing on the interior turn switch
with your thumbs and
separating the cover
from the body. Set
cover aside.
4. Separate the decorative cover and set it aside with
the battery cover.
Interior
Assembly (G)
Interior Turn
Switch
Press
Decorative
Cover (H)
Power Cable (D)
Mounting
Plate (F)
Alignment
Post
Mounting Plate (F)
Mounting Plate
Screws (BB) [2]
Exterior
Assembly (C)
PAGE 8
