BRINKS BC40107 - Install Interior Assembly

Proceed to the User Guide for programming the lockset.
Interior
Assembly (G)
8
Installing the Interior Assembly

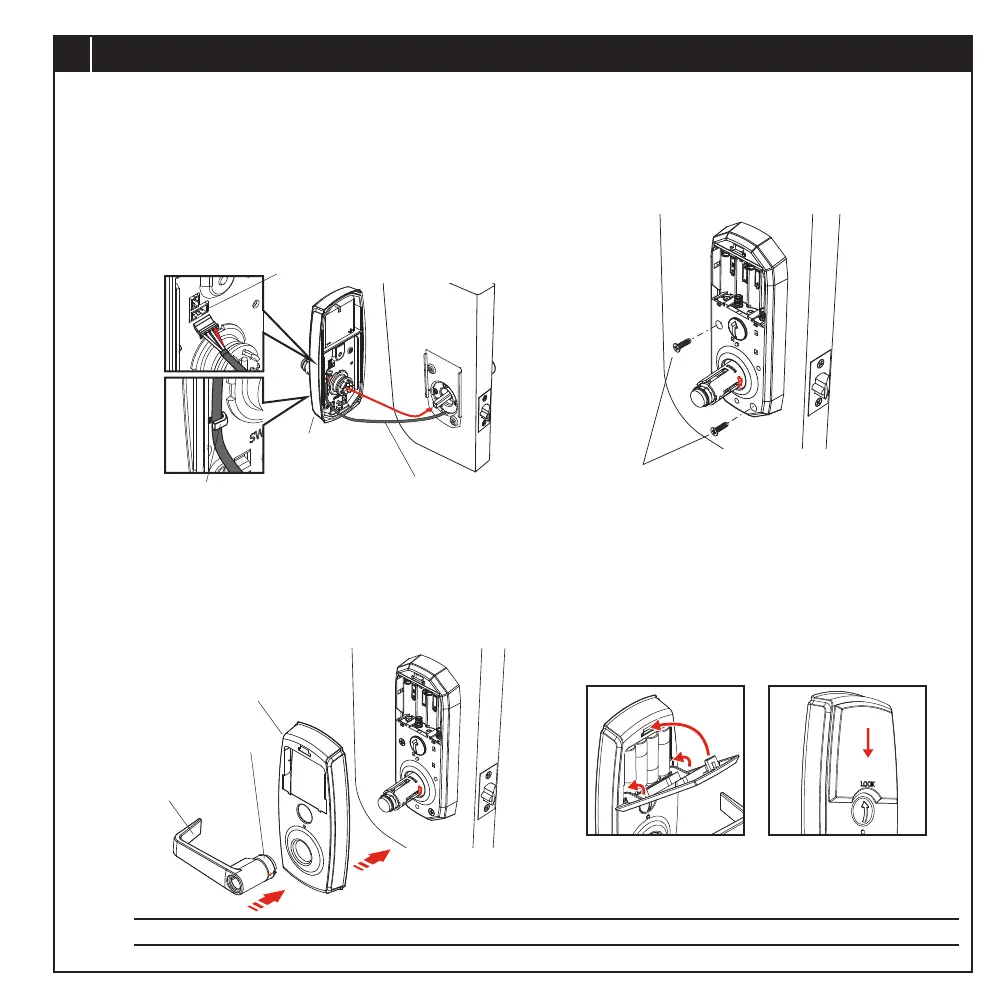

A. Insert power cable (D) rmly into the connector port
on the interior assembly (G). Secure the cable in the
cable guard. Align the square hole in the interior
assembly with the square drive spindle of the exterior
assembly and press the interior assembly against the
interior door face.
B. Insert two battery compartment screws (DD) and
tighten rmly.
C. Align and press the decorative cover (H) onto the
interior assembly. Make sure that the collar (N) is
placed correctly on the interior lever (J) and install
the interior lever assembly onto the interior spindle
until it clicks into place. The lever will point towards
the hinges.
D. Insert four new alkaline AA batteries in the battery
compartment. Install the battery cover (I) by hooking
the bottom into the corresponding slots in the interior
assembly. Rotate it up and let it drop down into place.
Decorative Cover (H)
Collar (N)
Interior
Lever (J)
Battery Compartment Screws (DD) [2]
Install batteries Install battery cover
Power Cable (D)
Connector Port
Cable Guard
PAGE 9
