C. Position the back and sides of the dispenser at least 4 inches (10 cm) from a walls to permit free
air circulation between the walls and the water dispenser.
4 in. (10 cm)
2. Connect to the Cold Water Supply
CAUTION: DO NOT CONNECT THIS WATER
LINE TO A HOT WATER SUPPLY LINE.
The water supply to the unit MUST be
from the COLD WATER LINE. Using
HOT WATER will severely damage
your filters.
A. Turn o and then disconect the current cold
water supply line.
B. Connect the Feedwater Adapter (C) to the
cold water supply line.
C. Connect the cold water supply line on top of
the Feedwater Adapter (C).
NOTE: An extra adapter nut is included on
top of the Feedwater Adapter (C)
to attach to a 3/8 in. or 1/2 in. feed
plumbing line.
D. Cut the non-elbow-connector end of the
Shuto Valve Tube (A) as instructed on page
6, under “Cutting Tubing.”

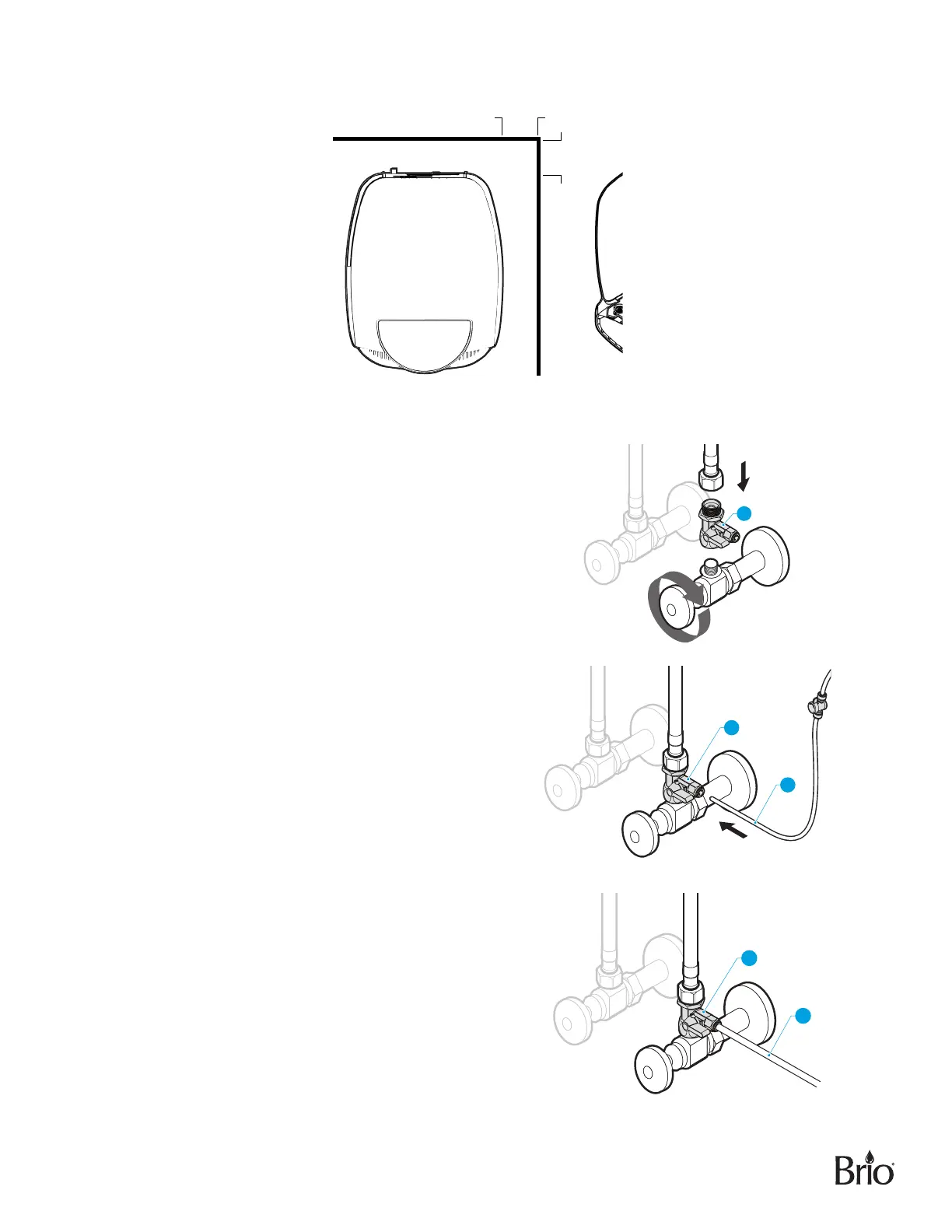

E. Insert the cut end of the Shuto Valve Tube
(A) straight into the Feedwater Adapter (C)
as indicated in the line drawing. Ensure
the shuto valve lever is perpendicular to
the tube. This will prevent any water from
entering the dispenser.
F. Gently tug on the Shuto Valve Tube (A)
to ensure a secure connection with the
Feedwater Adapter (C).
C
C
A
C
A
To Next Page
