Model 621 User’s Manual APPENDIX D – MONITOR PORT
Bristol Instruments, Inc. 35
APPENDIX D – MONITOR PORT
The Monitor Port on the rear panel of the 621 Laser Wavelength Meter provides a
combination of analog and digital signals for observing the interference fringe signals and
measurement timing signals using an oscilloscope. The Monitor Port uses a 9-pin,
female, D-sub style connector shown in Figure D-1 and with a pinout described in the
table below.

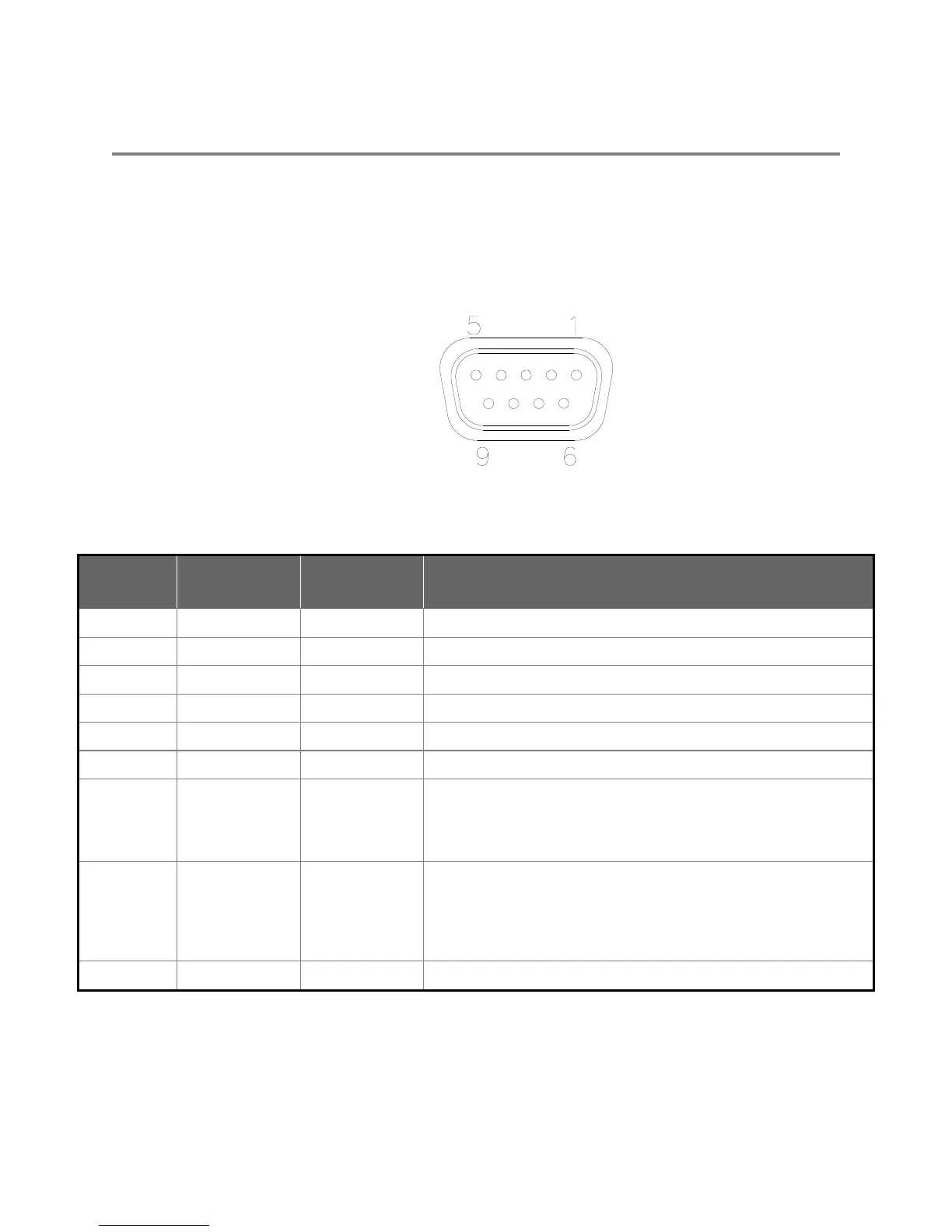

Figure E-1: Monitor Port
Pin
Number
Signal
Name
Signal Type
Description
1
REFERENCE
Analog
Reference laser sinusoidal interference fringe signal.
2
INPUT
Analog
Input laser sinusoidal interference fringe signal.
3
N/C
4
N/C
5
GROUND
-
Circuit ground.
6
N/C
7
TRIGGER
TTL
Scanning Window Trigger is a digital pulse with a duration that
defines the maximum measurement interval for the
interferometer scan. It goes active (H=active) during the
allowed measurement interval.
8
ZOP
TTL
Zero Optical Path (ZOP) is a digital signal that indicates the
location (timing) of equal path length in the arms of the
interferometer. For scans of one direction, a positive edge
indicates ZOP. For scans of the other direction, a negative
edge indicates ZOP.
9
N/C
