Model 621 User’s Manual USING THE LASER WAVELENGTH METER
Bristol Instruments, Inc. 18
Intensity Meter
Graphically displays the relative intensity of the laser under test.
Status Bar
The Status bar is located at the bottom of the Wavelength Screen and the Trend
Screen. It provides information about the current state of the instrument as
described below (from left to right).
Connection status – Either connected or disconnected.
Resolution – The Display Resolution setting of the collected data. The
options are Auto or a fixed number of digits.
Averaging – Either “Off” or the number of samples being averaged.
Logging – The downloading icon is gray when logging status is inactive, and
green when logging status is active.

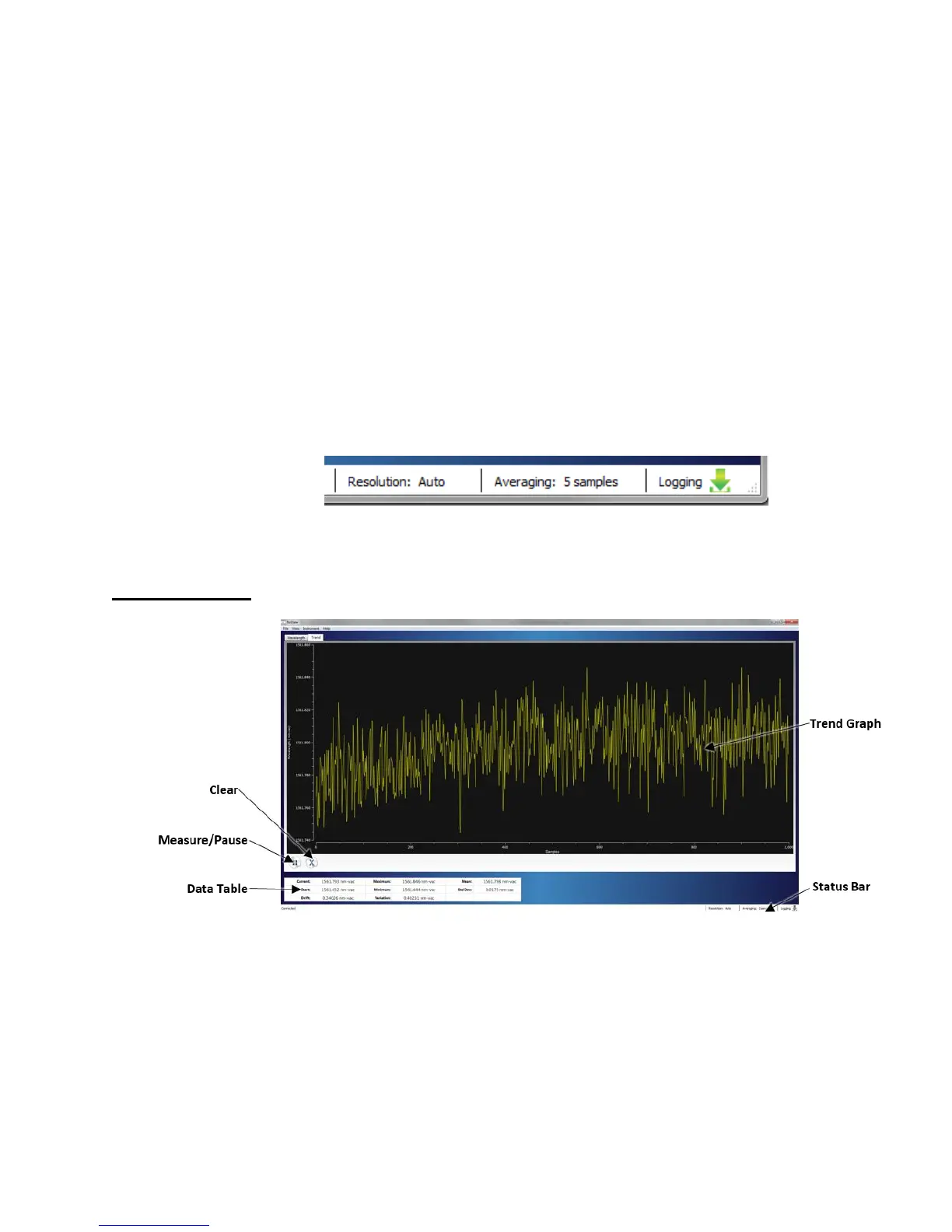

Figure 5.4: Status Bar
Trend Screen
Figure 5.5: Trend Screen
