Broadcom 96xx User Guide
Broadcom
®
96xx PCIe 4.0, 24G SAS MegaRAID
and eHBA Tri-Mode Storage Adapters

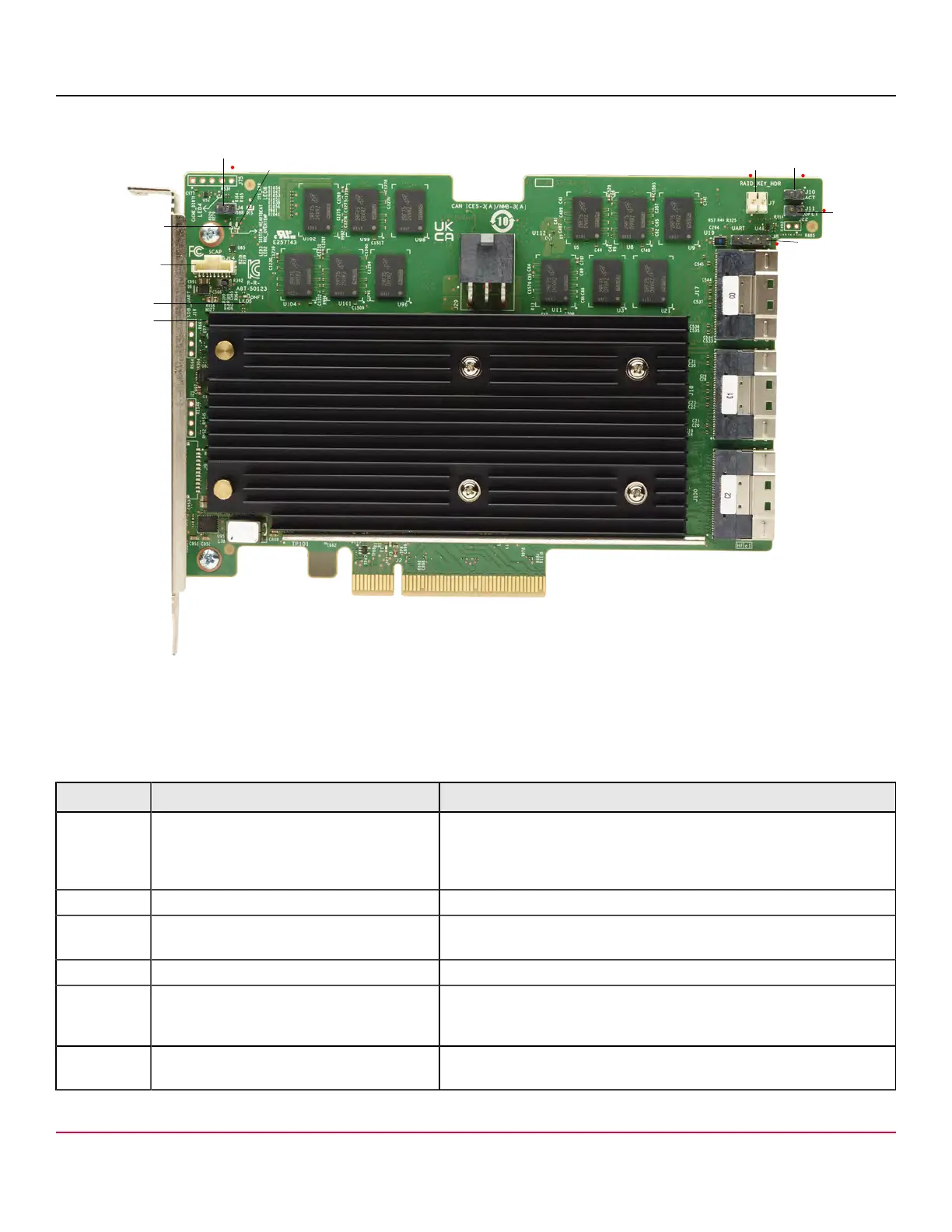

Figure 6: Card Layout for the MegaRAID 9670-24i Tri-Mode Storage Adapter
LED2
LED3
J8
J2
J18
J17
J29
J100
J14
J11
J10J7
LED5
LED6
J4
The following table describes the headers and connectors on the adapter.
Table 22: Headers and Connectors
Connector Type Description
J2 Standard edge card connector The interface between the storage adapter and the host system.
With the PCIe interface, this connector provides power to the board and
an I
2
C interface connected to the I
2
C bus for the Intelligent Platform
Management Interface (IPMI).
J4 Default SBR header 2-pin connector. Reserved for Broadcom use.
J7 Advanced software options hardware key
header
2-pin connector.
Enables support for selected advanced features.
J8 Onboard serial UART connector 4-pin connector. Reserved for Broadcom use.
J10 Global HDD activity LED header 2-pin connector.
Connects to an LED that indicates activity on the drives connected to
the adapter.
J11 Global drive fault LED header 2-pin connector.
Connects to an LED that indicates whether a drive is in a fault condition.
Broadcom
96xx-MR-HBA-Tri-Mode-UG108
33
