Broadcom 96xx User Guide
Broadcom
®
96xx PCIe 4.0, 24G SAS MegaRAID
™
and eHBA Tri-Mode Storage Adapters
Table 30: LED Designations
LED Type Description
LED2 Yellow IOC overtemperature Stays on solid to indicate that the SAS4024 IOC temperature sensor is over the temperature
threshold. When the device is in the proper temperature range, this LED is off. This LED resides
on the nonheat-sink side of the board.
LED3 Green system heartbeat Indicates that the SAS4024 IOC is operating normally. This LED resides on the nonheat-sink
side of the board.
eHBA 9600-16i Adapter – Connector and LED Designations
The adapter is a 155.52 (±0.13) mm × 68.77 (±0.13) mm board. The component height on the top and bottom of the
adapter complies with the PCIe specification.

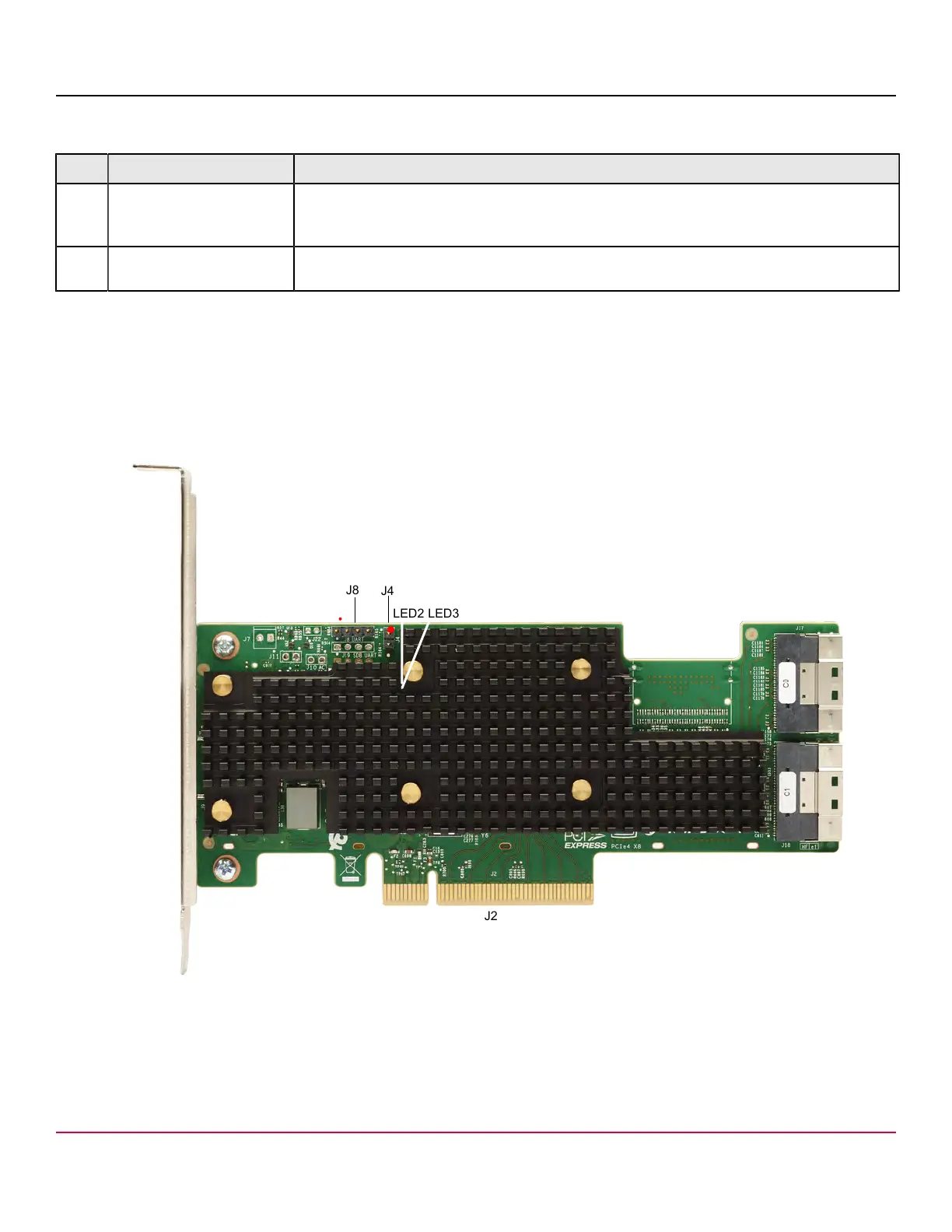

Figure 11: Card Layout of the eHBA 9600-16i Tri-Mode Storage Adapter
J2
LED3
LED2
J4
J8
J17
J18
The following table describes the connectors on the adapter.
Broadcom
96xx-MR-HBA-Tri-Mode-UG108
41
