Broadcom 96 Series User Manual

Broadcom 96xx User Guide Broadcom
®
96xx PCIe 4.0, 24G SAS MegaRAID
™
and eHBA Tri-Mode Storage Adapters

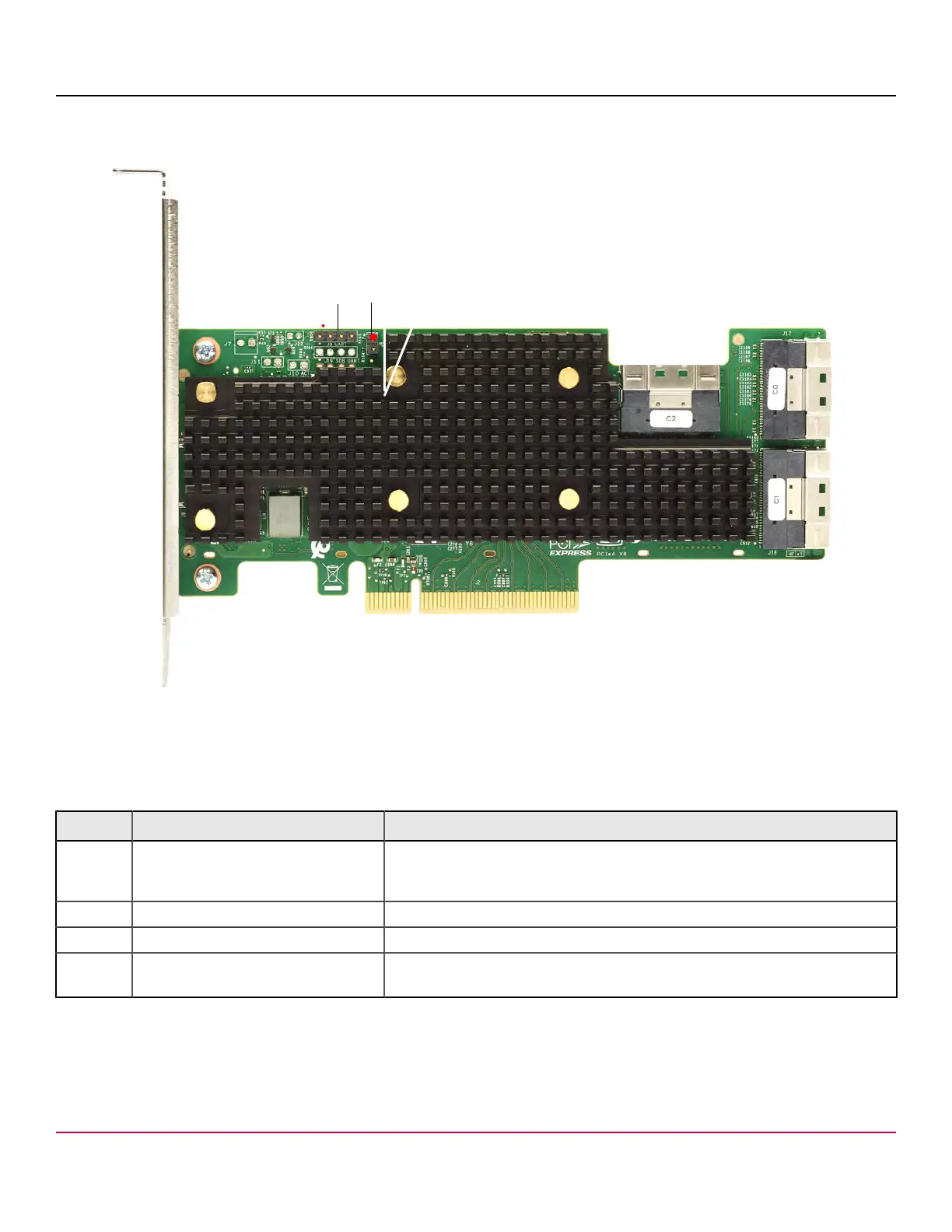

Figure 10: Card Layout of the eHBA 9600-24i Tri-Mode Storage Adapter
J2
LED3
LED2
J4
J8
J26
J17
J18
The following table describes the connectors on the adapter.
Table 29: Headers and Connectors
Connector Type Description
J2 Standard edge card connector The interface between the storage adapter and the host system.
With the PCIe interface, this connector provides power to the board and an I
2
C
interface connected to the I
2
C bus for the IPMI.
J4 Default SBR header 2-pin connector. Reserved for Broadcom use.
J8 Onboard serial UART connector 4-pin connector. Reserved for Broadcom use.
J17, J18,
J26
Storage interface connectors Three SFF-8654 8-port internal connectors.
Connect the adapter by cable to the storage devices.
The following table describes the LEDs on the adapter.
Broadcom 96xx-MR-HBA-Tri-Mode-UG108
40
