Broadcom 96xx User Guide Broadcom
®
96xx PCIe 4.0, 24G SAS MegaRAID
™
and eHBA Tri-Mode Storage Adapters
Table 34: LED Designations
LED Type Description
LED2 Yellow IOC overtemperature Stays on solid to indicate that the SAS4016 IOC temperature sensor is over the temperature
threshold. When the device is in the proper temperature range, this LED is off. This LED resides
on the nonheat-sink side of the board.
LED3 Green system heartbeat Indicates that the SAS4016 IOC is operating normally. This LED resides on the nonheat-sink
side of the board.
eHBA 9600W-16e Adapter – Connector and LED Designations
The adapter is a 167.51 (±0.13) mm × 68.78 (±0.13) mm board. The component height on the top and bottom of the
adapter complies with the PCIe specification.

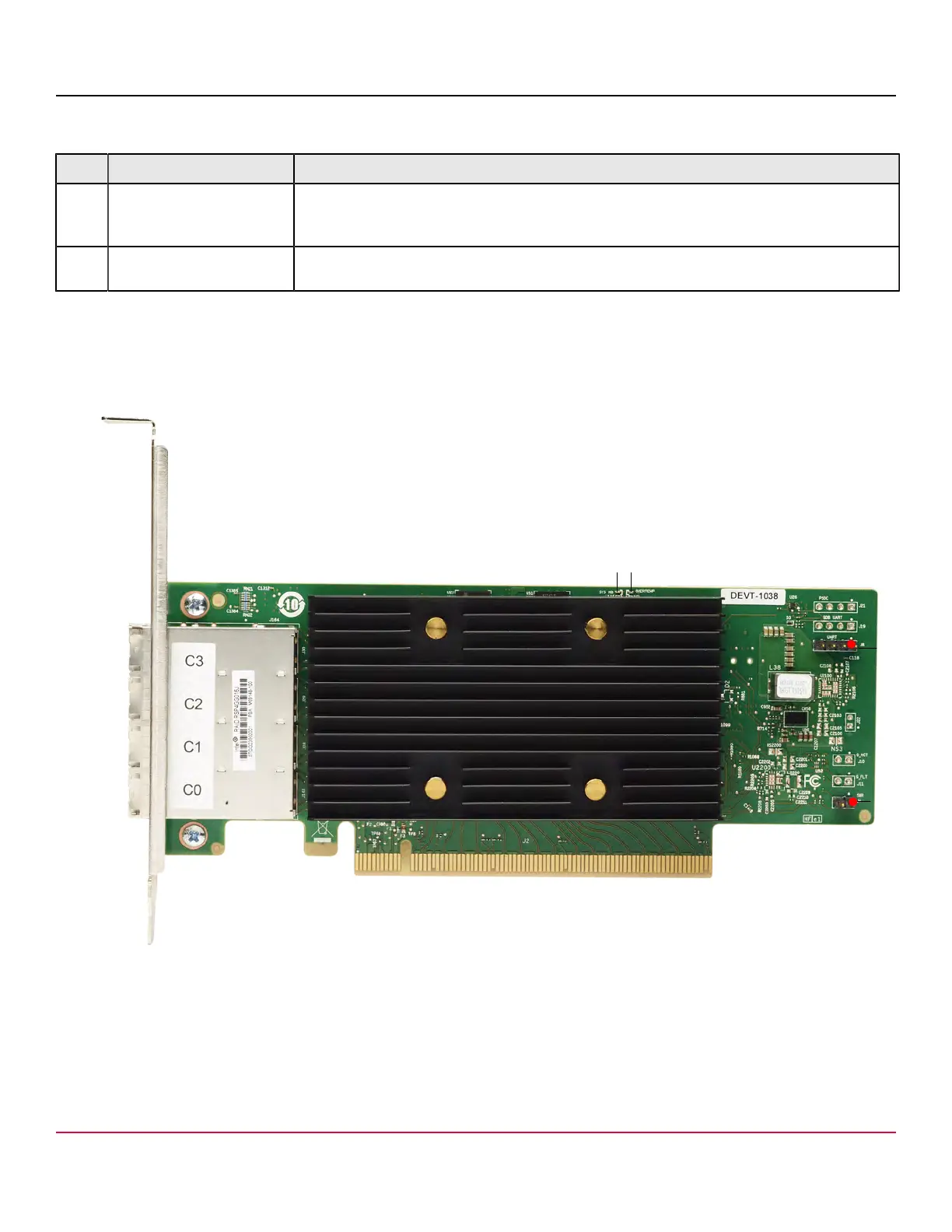

Figure 13: Card Layout of the eHBA 9600W-16e Storage Adapter
J4
J8
LED2LED3
J2
J164
J28
J29
J30
The following table describes the headers and connectors on the adapter.
Broadcom 96xx-MR-HBA-Tri-Mode-UG108
44
