Broadcom 96 Series User Manual

Broadcom 96xx User Guide Broadcom
®
96xx PCIe 4.0, 24G SAS MegaRAID
™
and eHBA Tri-Mode Storage Adapters

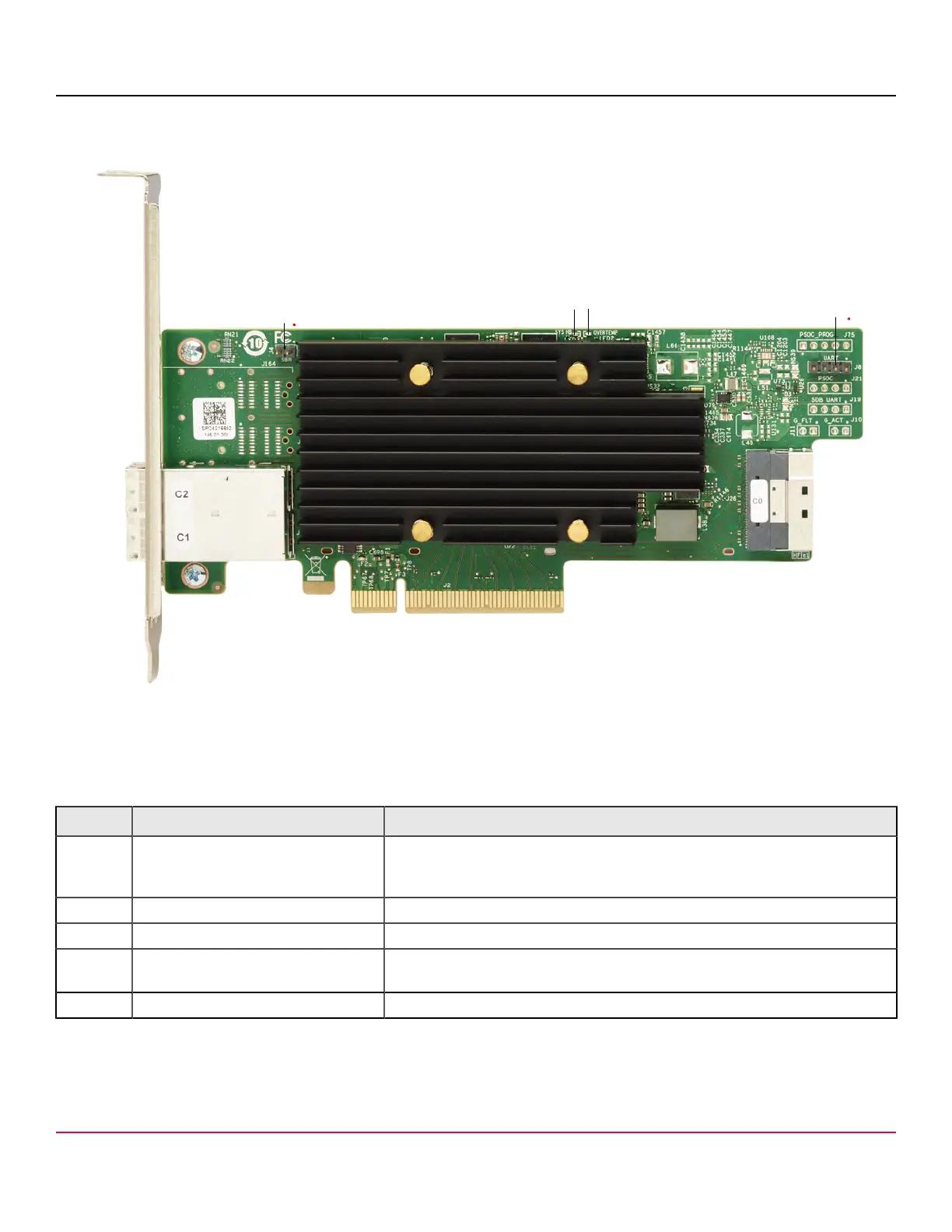

Figure 12: Card Layout of the eHBA 9600-8i8e Tri-Mode Storage Adapter
J2
J26
J28
J4
J8
LED3 LED2
J163,
The following table describes the connectors on the adapter.
Table 33: Headers and Connectors
Connector Type Description
J2 Standard edge card connector The interface between the storage adapter and the host system.
With the PCIe interface, this connector provides power to the board and an I
2
C
interface connected to the I
2
C bus for the IPMI.
J4 Default SBR header 2-pin connector. Reserved for Broadcom use.
J8 Onboard serial UART connector 4-pin connector. Reserved for Broadcom use.
J26 Storage interface connector One SFF-8654 8-port internal connector.
Connect the adapter by cable to the storage devices.
J163, J28 Storage interface connectors Two SFF-8674 4-port external connectors.
The following table describes the LEDs on the adapter.
Broadcom 96xx-MR-HBA-Tri-Mode-UG108
43
