Broadcom 96xx User Guide
Broadcom
®
96xx PCIe 4.0, 24G SAS MegaRAID
™
and eHBA T
ri-Mode Storage Adapters
Cable 05-60005-00

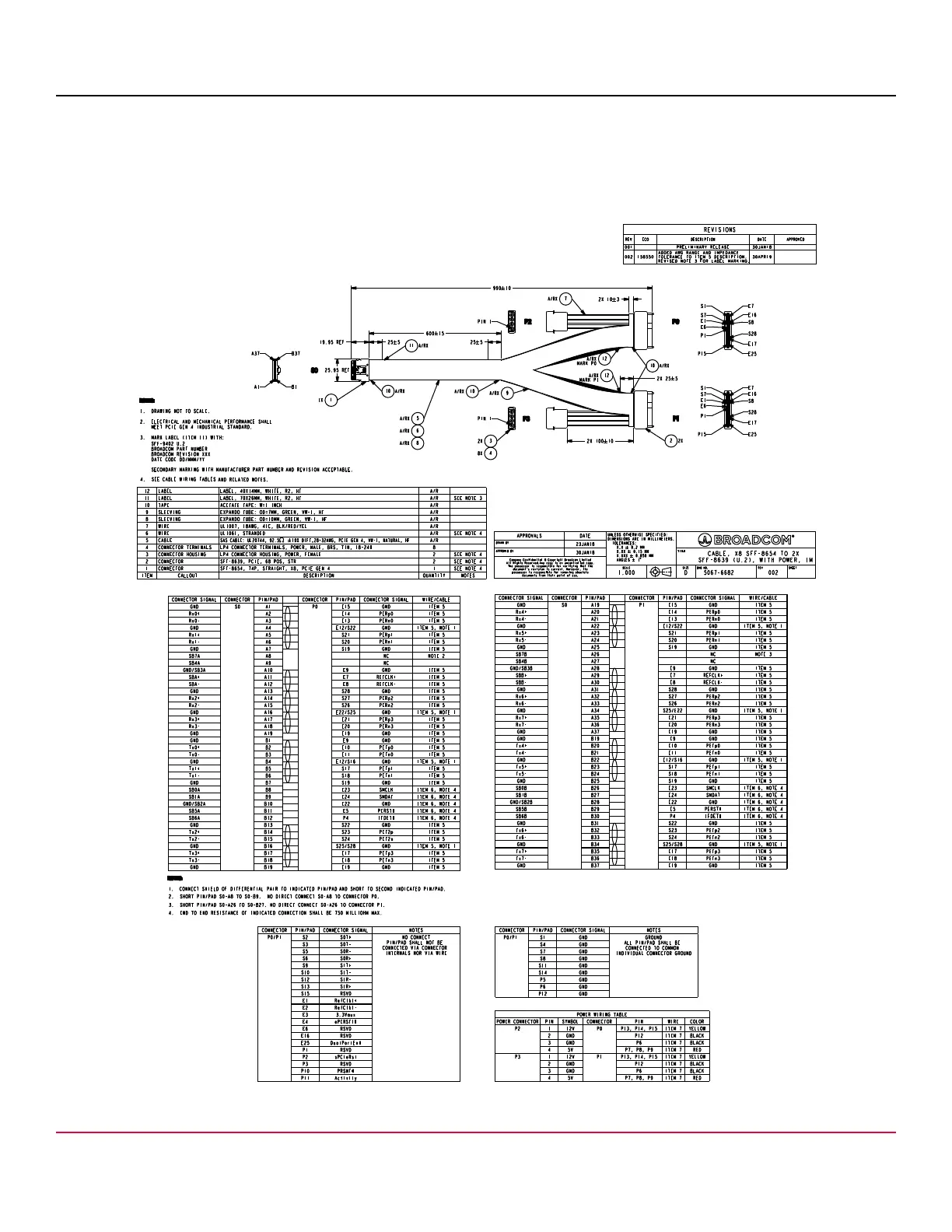

The following figure shows the drawing and pinout for Broadcom cable 05-60005-00, a x8 SFF-8654 to 2 U.2 SFF-8639
connection.
Figure 19: Cable 05-60005-00 Drawing and Pinout
Broadcom
96xx-MR-HBA-T
ri-Mode-UG108
58
57
59
