Broadcom 96 Series User Manual

Broadcom 96xx User Guide Broadcom
®
96xx PCIe 4.0, 24G SAS MegaRAID
™
and eHBA Tri-Mode Storage Adapters

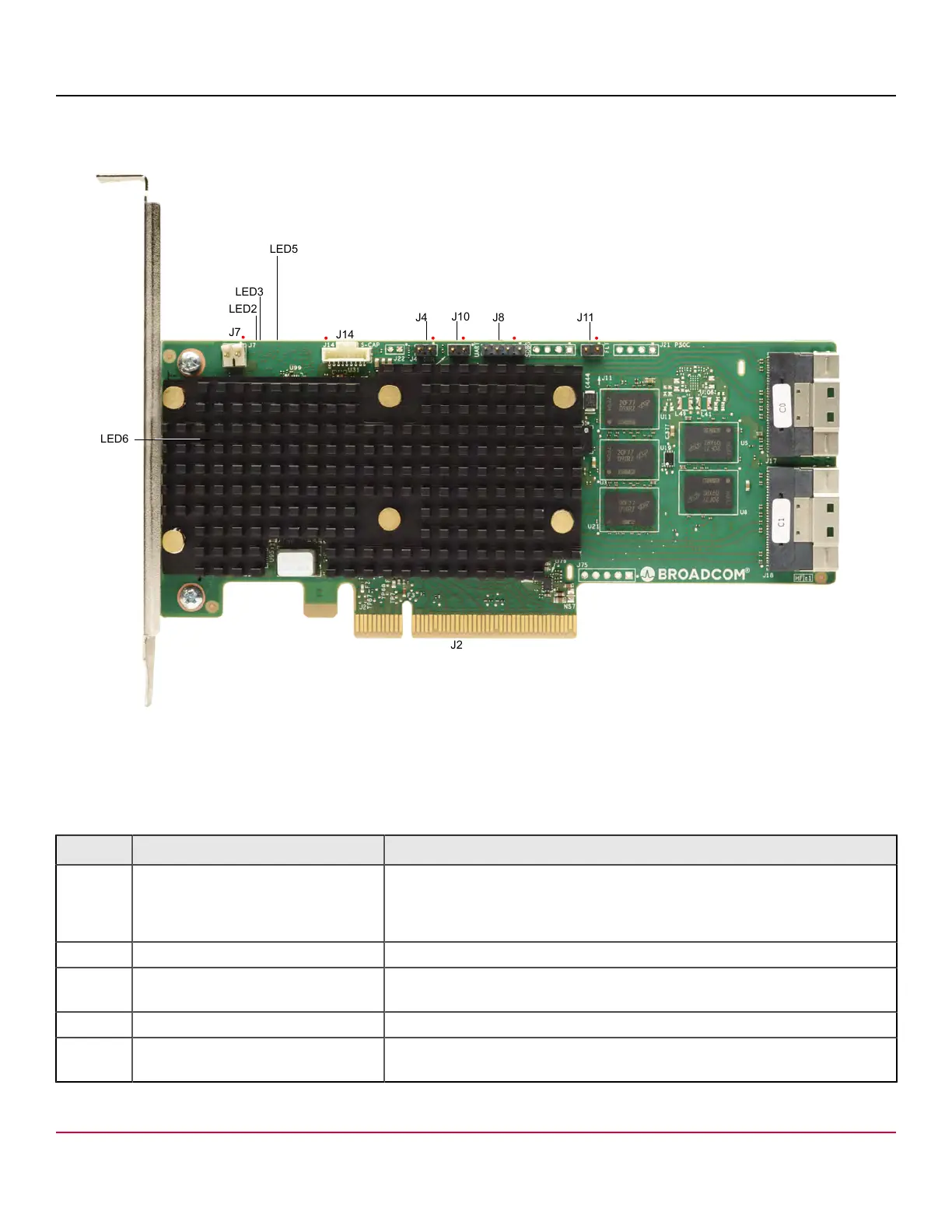

Figure 8: Card Layout for the MegaRAID 9660-16i Tri-Mode Storage Adapter
J17
J18
J7
J14
LED5
LED3
LED2
LED6
J11J4
J10
J8
J2
The following table describes the headers and connectors on the adapter.
Table 25: Headers and Connectors
Connector Type Description
J2 Standard edge card connector The interface between the storage adapter and the host system.
With the PCIe interface, this connector provides power to the board and an
I
2
C interface connected to the I
2
C bus for the Intelligent Platform Management
Interface (IPMI).
J4 Default SBR header 2-pin connector. Reserved for Broadcom use.
J7 Advanced software options hardware
key header
2-pin connector.
Enables support for selected advanced features.
J8 Onboard serial UART connector 4-pin connector. Reserved for Broadcom use.
J10 Global HDD activity LED header 2-pin connector.
Connects to an LED that indicates activity on the drives connected to the adapter.
Broadcom 96xx-MR-HBA-Tri-Mode-UG108
36
