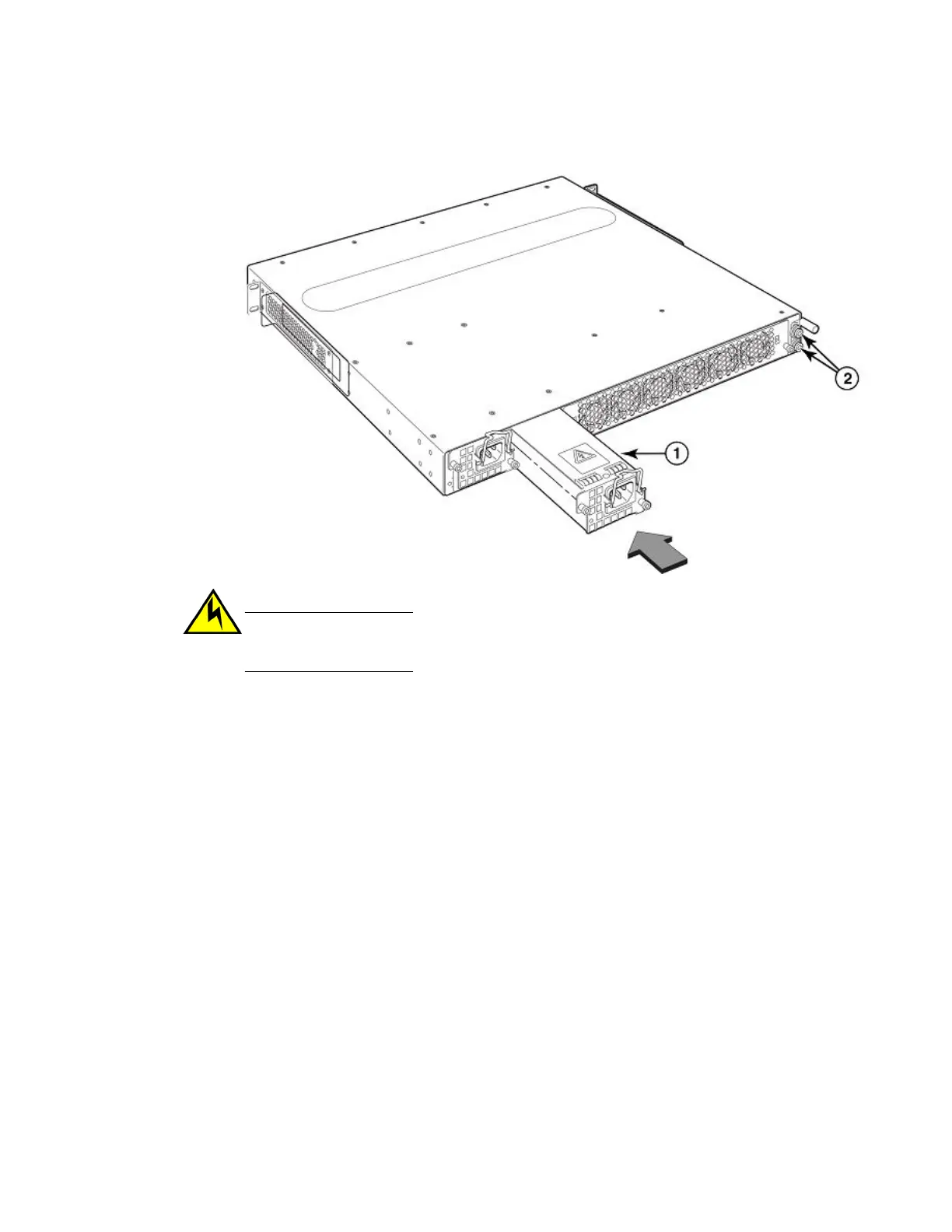

FIGURE 51 Power supply installation
CAUTION
Carefully follow the mechanical guides on each side of the power supply slot and make sure
the power supply is properly inserted in the guides. Never insert the power supply upside
down.
4. Tighten the two power supply locking screws located at the top left and bottom right hand corner of
the power supply.
5. Connect the power cord to the power supply.
Removing the DC power supply
Required tools
You will need the following tool to perform this procedure:
• #2 Phillips-head screwdriver
The following procedures are required when removing an DC power supplies from devices.
1. Remove the wires from your DC power source.
2. Unscrew the two assembly screws to unlock the DC wiring assembly (Required tools) and remove
the adapter.
3. Loosen the wire tightening screws to remove the wires (Required tools) from the DC wiring
assembly.
Removing the DC power supply
84 Brocade NetIron CES 2000 Series and NetIron CER 2000 Series Hardware Installation Guide
53-1003823-01
