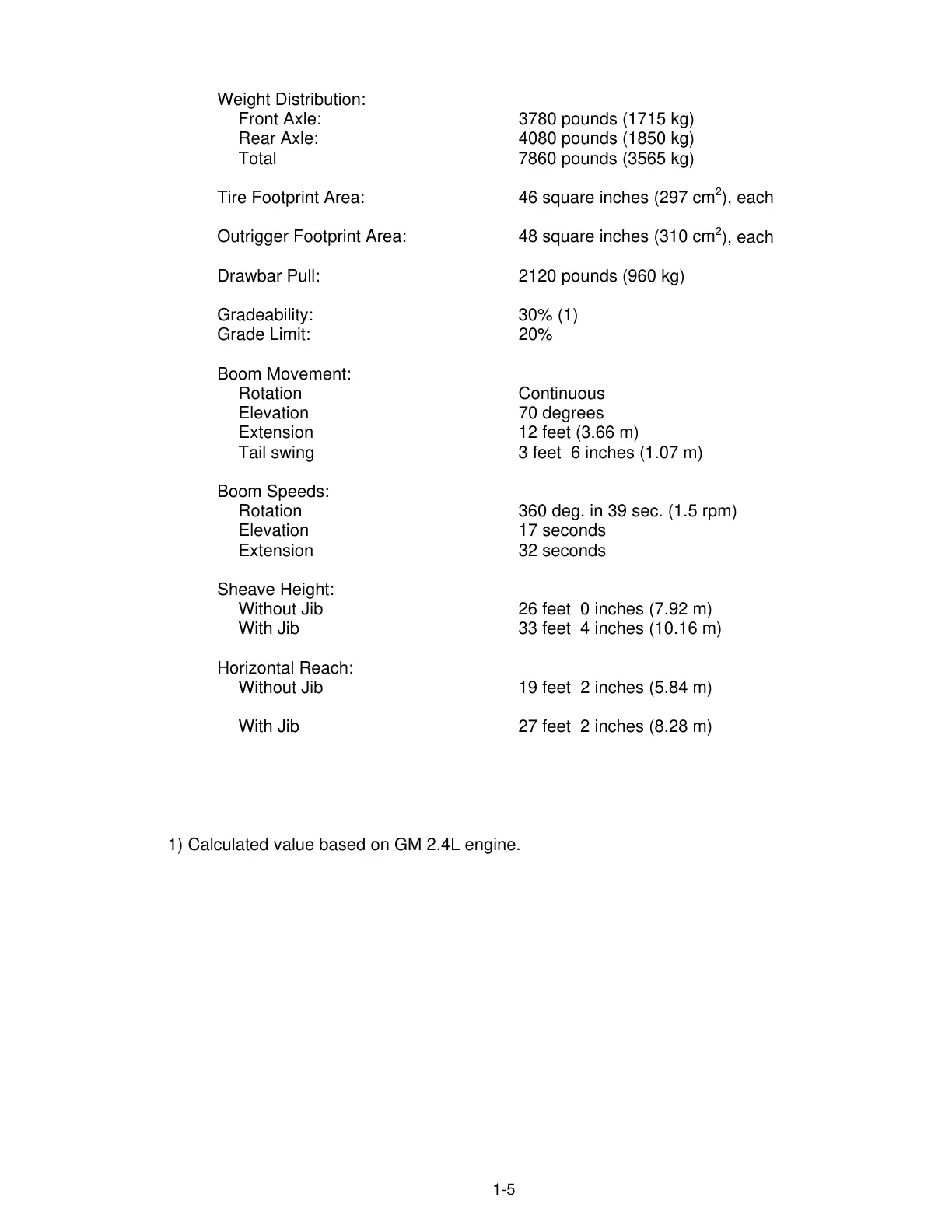

1-5
Weight Distribution:
Front Axle: 3780 pounds (1715 kg)
Rear Axle: 4080 pounds (1850 kg)
Total 7860 pounds (3565 kg)
Tire Footprint Area: 46 square inches (297 cm
2
), each
Outrigger Footprint Area: 48 square inches (310 cm
2
), each
Drawbar Pull: 2120 pounds (960 kg)
Gradeability: 30% (1)
Grade Limit: 20%
Boom Movement:
Rotation Continuous
Elevation 70 degrees
Extension 12 feet (3.66 m)
Tail swing 3 feet 6 inches (1.07 m)
Boom Speeds:
Rotation 360 deg. in 39 sec. (1.5 rpm)
Elevation 17 seconds
Extension 32 seconds
Sheave Height:
Without Jib 26 feet 0 inches (7.92 m)
With Jib 33 feet 4 inches (10.16 m)
Horizontal Reach:
Without Jib 19 feet 2 inches (5.84 m)
With Jib 27 feet 2 inches (8.28 m)
1) Calculated value based on GM 2.4L engine.
