Appendix I - DVE-50A Probe Clip
Probe Clip DVE-50A is supplied with the DV1 Optional Temperature Probe. It is used to attach the
RTD temperature probe to the LV/RV Guard Leg or 600mL low form Grin beaker. Figure I-1 is a
view of the Probe Clip, showing the hole into which the RTD probe is inserted, and the slot which
ts onto the LV/RV guard leg. When inserting the RTD probe into the Probe Clip, the upper part
of the Clip is compressed by squeezing the points shown in Figure I-1.
RTD Probe
Hole
Squeeze Here when
installing RTD
Temperature Probe

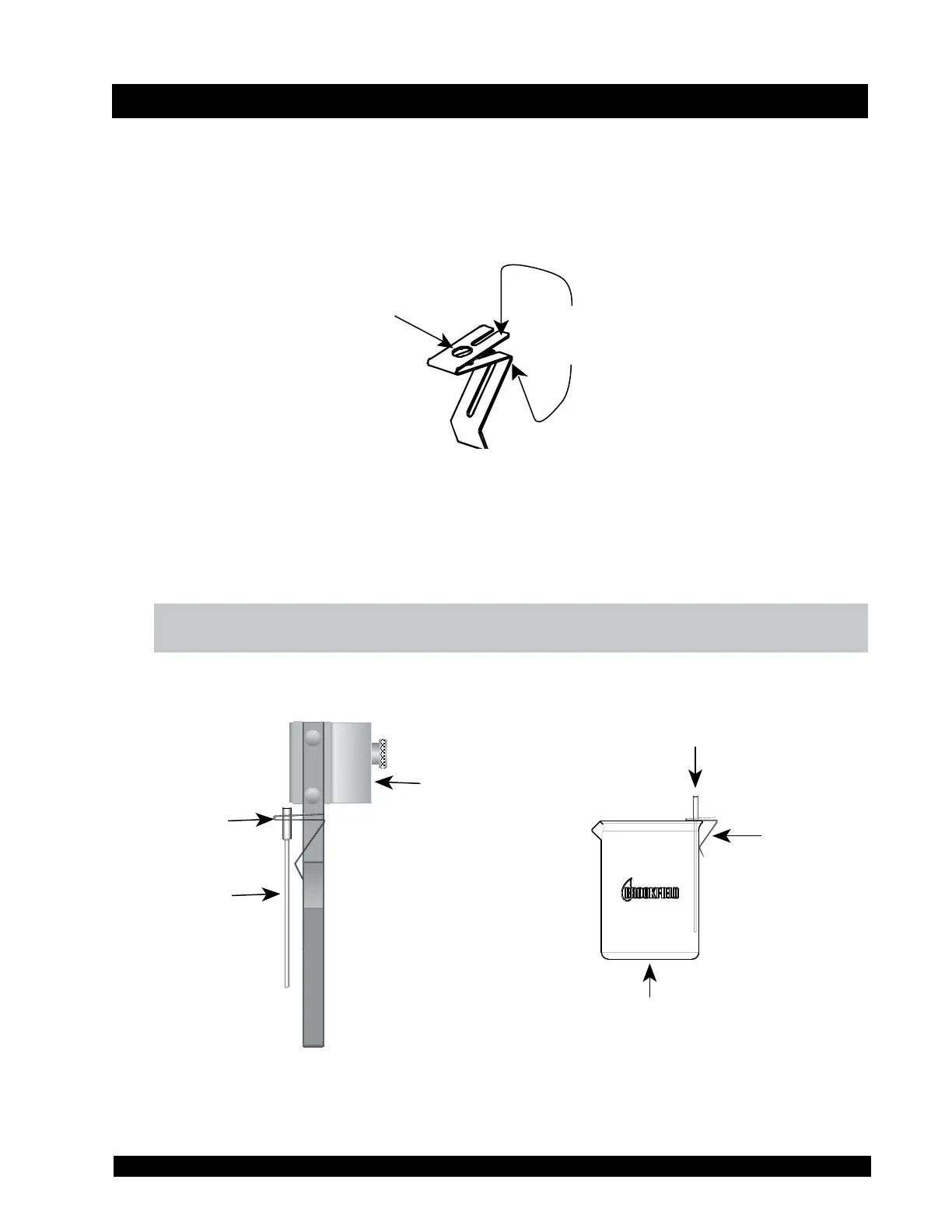

Figure I-1
Figure I-2 shows the Probe Clip (with RTD temperature probe installed) mounted on the guard leg.
Figure I-3 shows the Probe Clip mounted in a 600mL low form Grin beaker. is mounting may
be used with LV, RV, HA and HB series instruments.
NOTE: e RTD probe must be parallel to the beaker wall so as not to interfere with the
viscosity measurement.
Guard Leg
DVE-50A
Probe Clip
RTD Temperature
Probe
Brookfield 600 mL Low Form
Griffin Beaker
DVE–50
Probe Clip
RTD Temperature Probe
Figure I-2 Figure I-3

Brookfield DV1 Specifications

General

Speed Range	0.3 to 100 rpm
Display	LCD
Number of Speeds	18
Power Supply	100-240 VAC, 50/60 Hz
Viscosity Range	1 to 2, 000, 000 cP
Temperature Measurement	Optional
Accuracy	±1% of full scale range
Repeatability	+/- 0.2%
