Models 5800-S
Installation and Operation Manual
X-TMF-5800S-MFC-eng
PN 541-C-051-AAG
November, 2008
17
Length: 3 m; part number 124-Z-236-AAA
Length: 6 m; part number 124-Z-237-AAA
Length: 12 m; part number 124-Z-610-AAA
THERMAL SIDE
Sub-D 15-pin female
READ-OUT SIDE
Sub-D 15-pin male

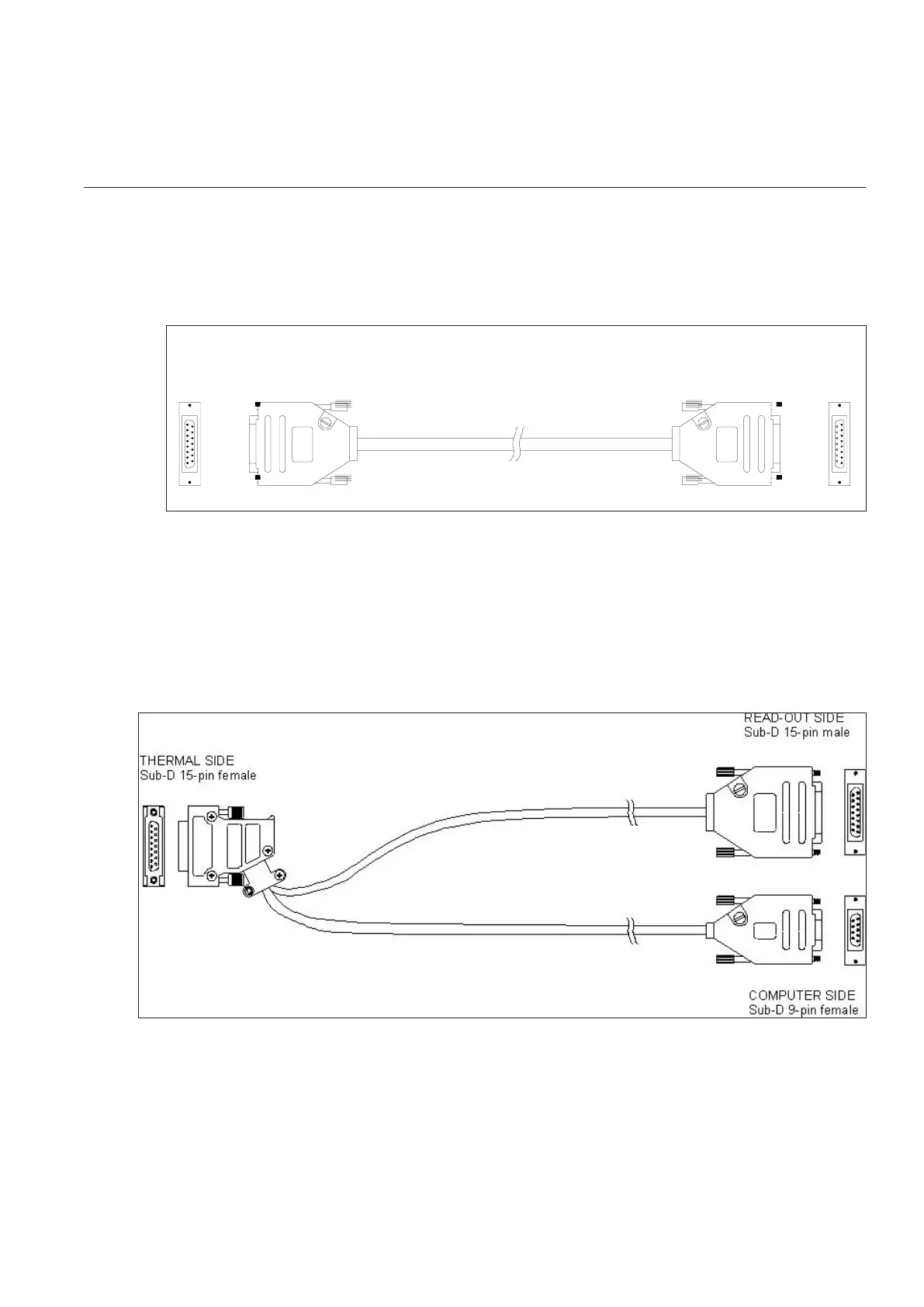

Figure 2-5: TMF/C to Read-out cable
If no digital communication is required, a split cable can be supplied to
interconnect the Brooks Microprocessor Control & Read-out Unit, the
Smart Mass Flow Meter/Controller and computer (see figure 2-5):
Length: 3 m; part number 124-Z-893-AAA
Length: 6 m; part number 124-Z-894-AAA
Length: 12 m; part number 124-Z-895-AAA
Figure 2-6: TMF/C Read-out and pc
NOTE: Special cables can be supplied multidrop (RS-485) installations
are required.
For detailed information about the cable connections, see table 2-3.
Section 2: Installation
