Brooks Smart Series User Manual

Installation and Operation Manual
X-TMF-5800S-MFC-eng
PN 541-C-051-AAG
November, 2008
Models 5800-S
32

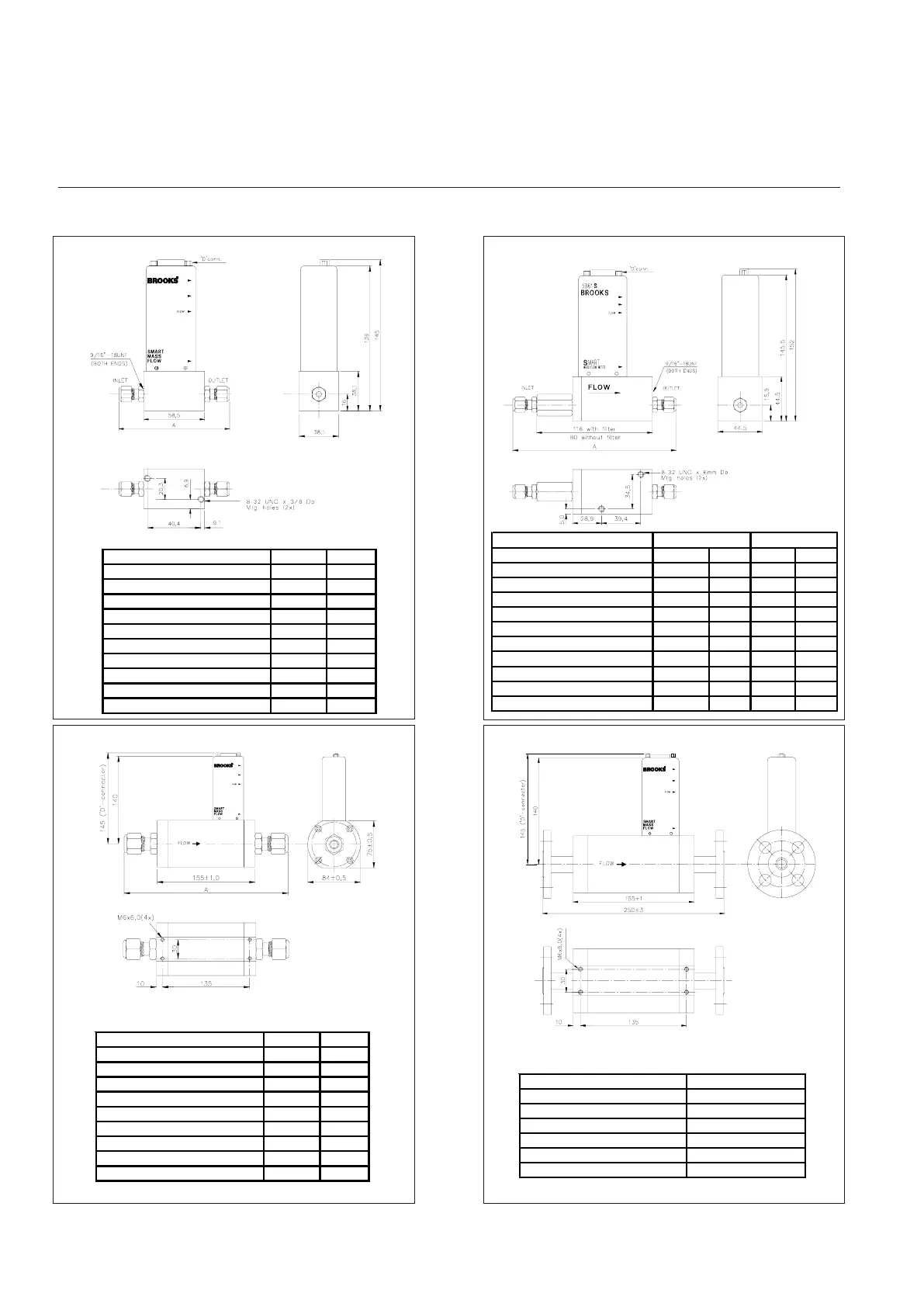

Appendix B: Dimensional drawings
Model 5860S
Model 5863S
Model 5861S
Model 5863S
5860S CONNECTIONS A
(
mm
)
Inches
9/16-18 UNF
(
no ada
p
ters
)
59 2,31
3/8" TUBE COMPR. 113 4,45
1/4" TUBE COMPR. 110 4,33
1/8" TUBE COMPR. 105 4,15
1/4" VCR 106 4,19
1/4" VCO 98 3,87
1/4" NPT 99 3,89
6mm TUBE COMPR. 110 4,33
10mm TUBE COMPR. 113 4,45
1/4" BSP 99 3,89
5861S CONNECTIONS
Filters >> ex c l. incl. exc l. inc l.
9/16-18 UNF
(
no 80 116 3,15 4,57
1/4" TUBE COMPR. 131 167 5,17 6,59
3/8" TUBE COMPR. 134 170 5,29 6,71
1/4" VCR 128 164 5,03 6,45
1/2" VCO 131 167 5,15 6,57
1/4" VCO 120 156 4,71 6,13
1/4" NPT 120 156 4,73 6,15
6mm TUBE COMPR. 131 167 5,17 6,59
10mm TUBE COMPR. 134 170 5,29 6,71
1/4" BSP 120 156 4,73 6,15
A
(
mm
)
In c h es
5863S CONNECTIONS A
(
mm
)
Inches
1/2" TUBE COMPR. 223 8,78
3/4" TUBE COMPR. 223 8,78
1" TUBE COMPR. 232 9,12
1/2" VCR 210 8,28
1/2" VCO 206 8,1
3/4" VCO 213 8,38
0.5", 1", 1.5" NPT OR
1- 1/16"-12
(
no ada
p
ters
)
155 6,1
FLENS 255 10,04
CONNECTIONS
DIN DN15 PN40
DIN DN25 PN40
DIN DN40 PN40
DIN DN50 PN40
ANSI 0.5" 150 LBS
ANSI 0.5" 300 LBS
ANSI 1.5" 300 LBS
ANSI 2" 150 LBS
ANSI 2" 300 LBS
ANSI 1" 300 LBS
ANSI 1" 150 LBS
ANSI 1.5" 150 LBS
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Brooks Smart Series Specifications

General

Category	Measuring Instruments
Communication Protocol	RS-485, Modbus
Power Supply	24 VDC
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 70°C
