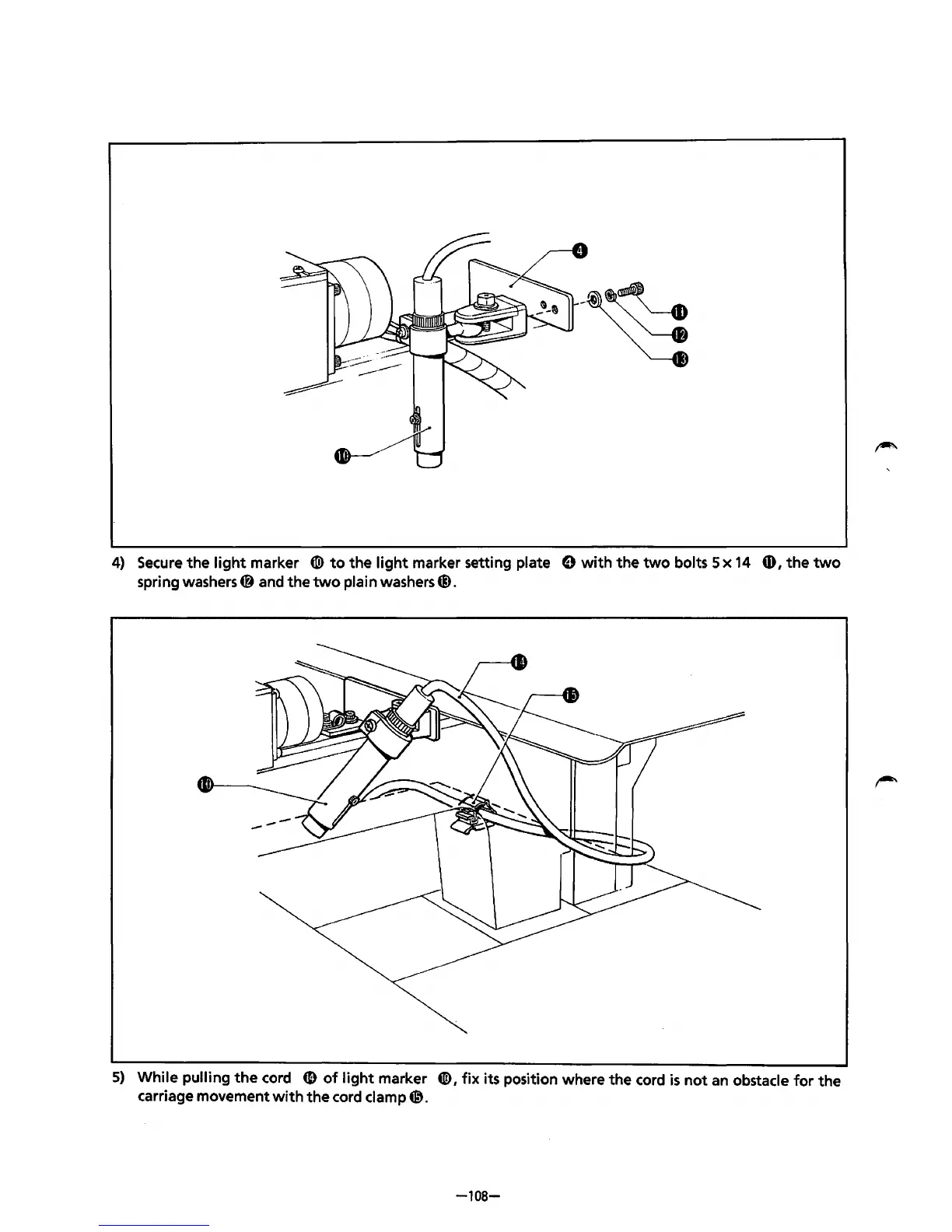

4) Secure the light marker CD) to the light marker setting plate 0 with the two bolts Sx 14 40, the two
spring washers CD and the two plain washers Q).
5) While pulling the cord 4D of light marker @,fix its position where the cord is not an obstacle for the
carriage movement
with the cord clamp@.
-108-
