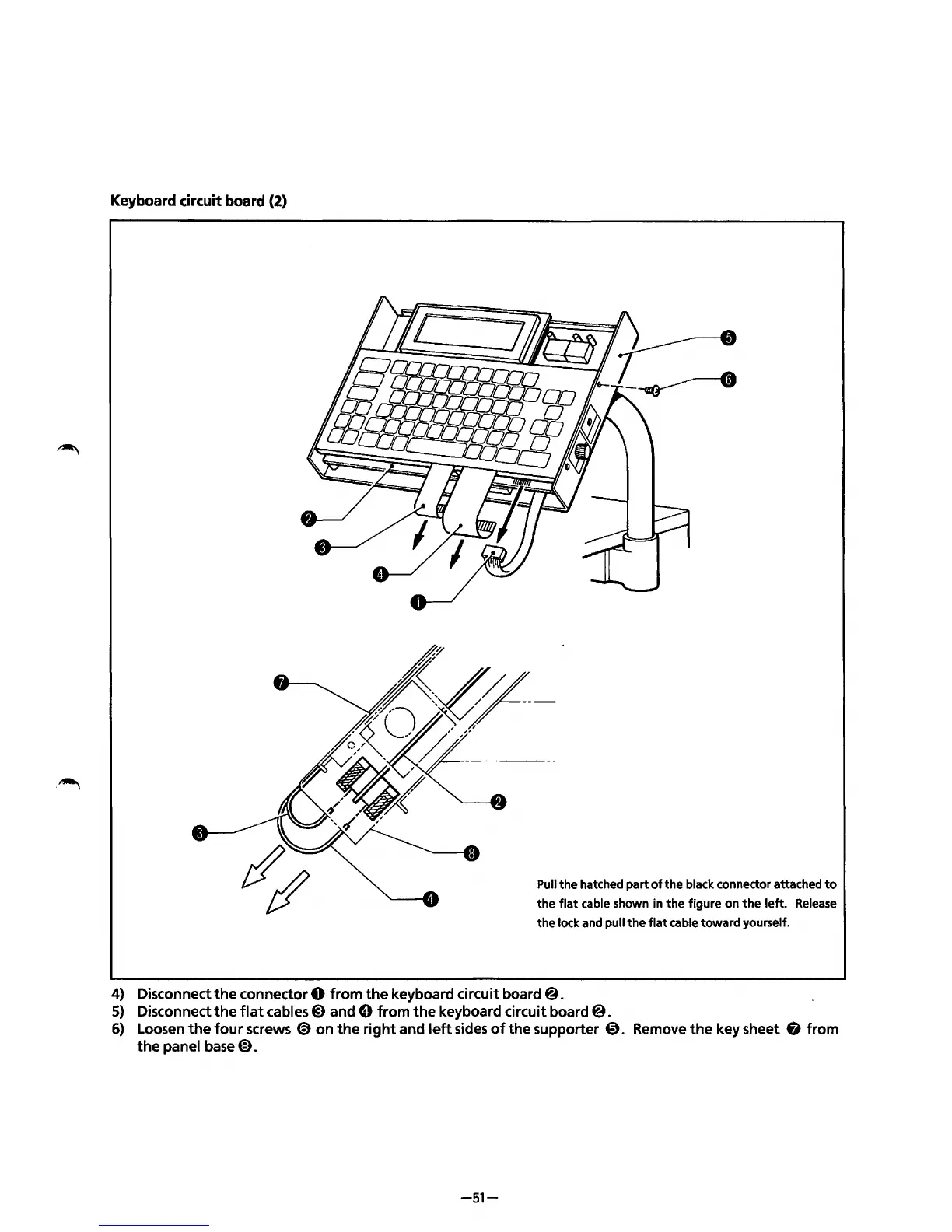

Keyboard circuit board (2}
Pull
the
hatched part
of
the
black connector attached
to
the
flat
cable shown in
the
figure on
the
left.
Release
the
lock and pull
the
flat
cable
toward
yourself.
4) Disconnect
the
connector 0
from
the
keyboard circuit
board@.
5)
Disconnect
the
flat
cables@)
and 0
from
the
keyboard circuit board @.
6)
Loosen
the
four
screws(!) on
the
right
and
left
sides
of
the
supporter
0.
Remove
the
key sheet
fi
from
the
panel
base
~.
-51-
