Keyboard circuit board (2)

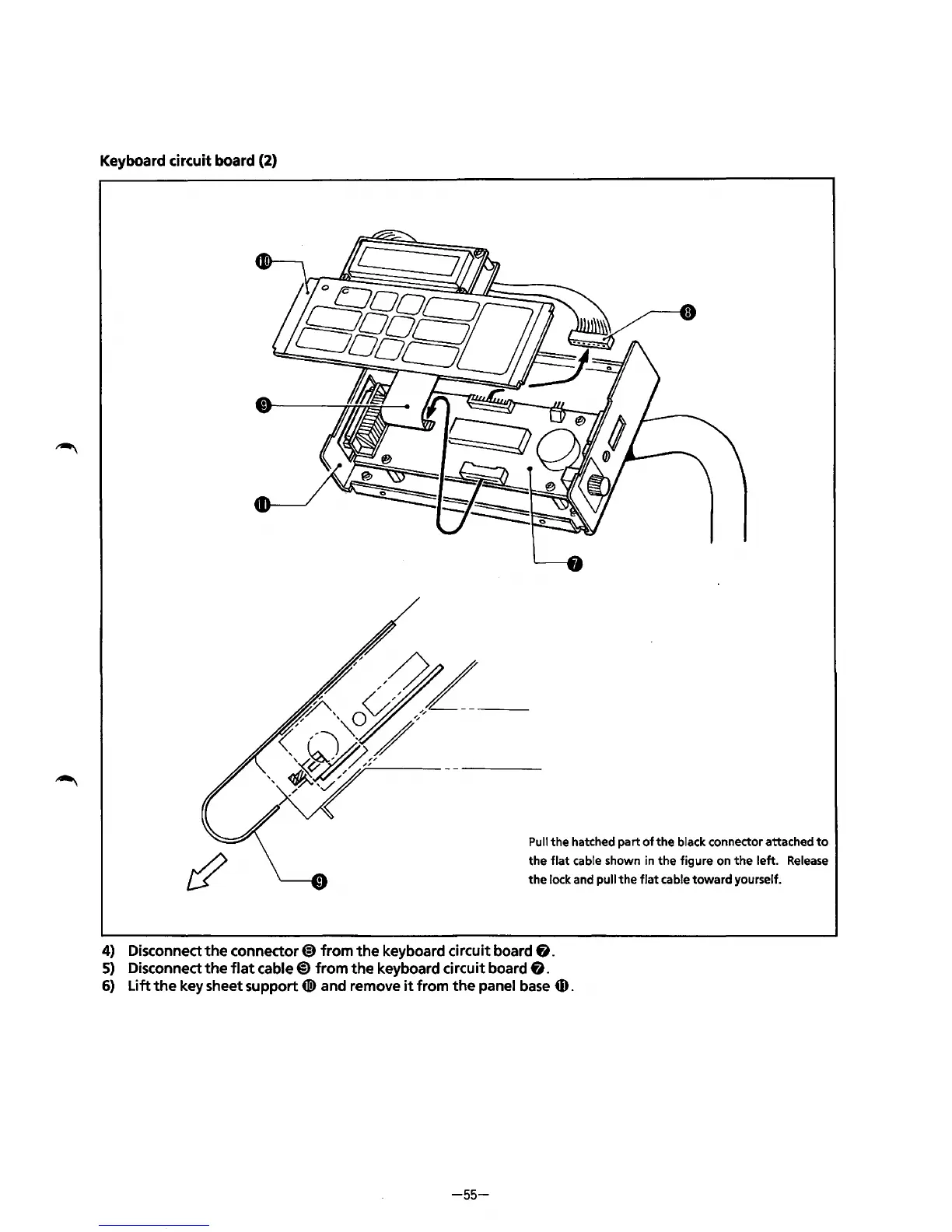

Pull the hatched part ofthe black connector attached to
the flat cable shown in the figure on the left. Release
the lock and pull the flat cable toward yourself.
4) Disconnect the connector@) from the keyboard circuit board 6.
5) Disconnect the flat cable@) from the keyboard circuit board 6.
6) Lift the key sheet support (!) and remove it from the panel base m.
