( BAS-415 )

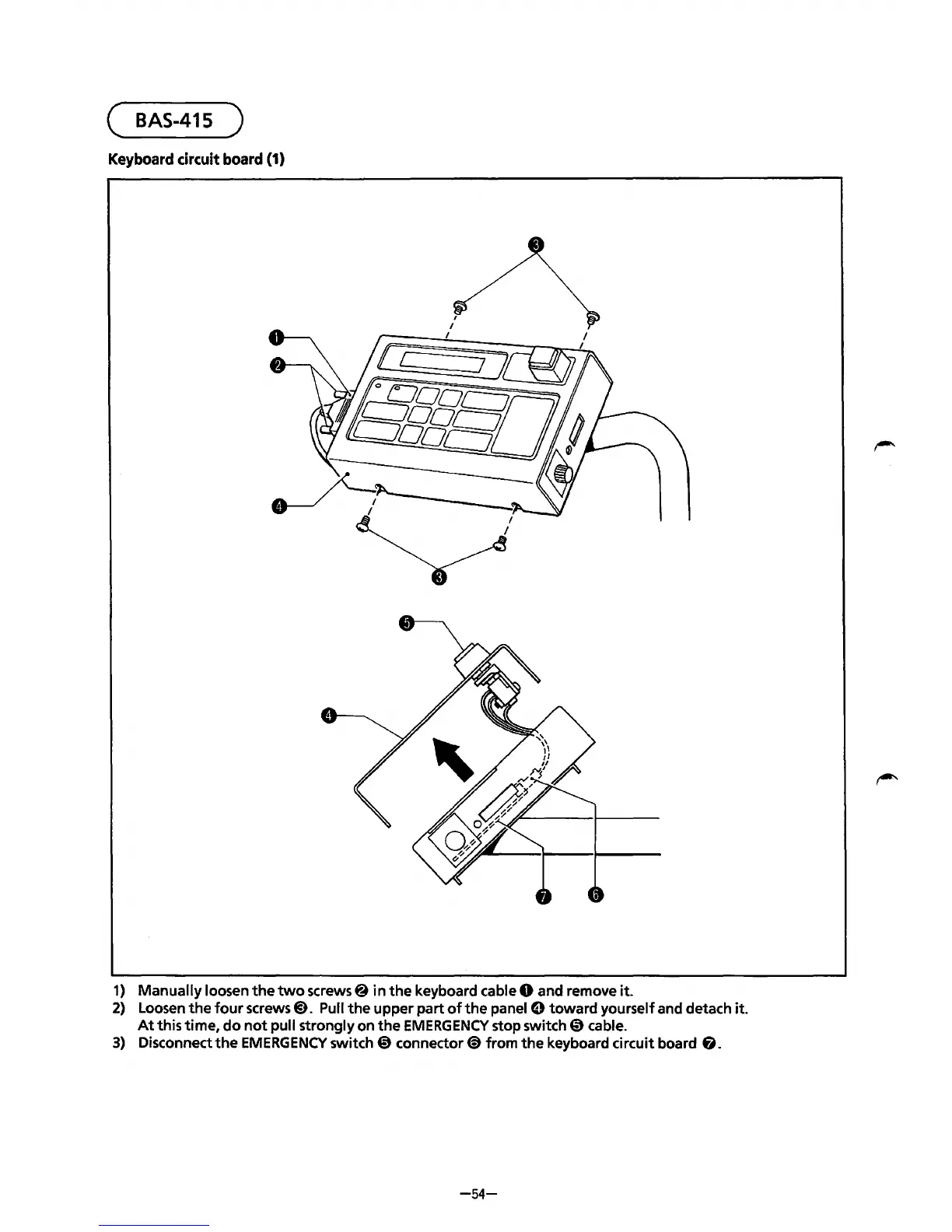

Keyboard circuit board (1)
1) Manually loosen the two screws@ in the keyboard cable 0 and remove it.
2) Loosen the four screws@). Pull the upper part of the panel 0 toward yourself and detach it.
At this time, do not pull strongly on the EMERGENCY stop switch@) cable.
3) Disconnect
the EMERGENCY switch@) connector <9 from the keyboard circuit board&.
-54-
