Brother DCP-7060D Service Manual

3-1
Confidential
1. SAFETY PRECAUTIONS
To avoid creating secondary problems by mishandling, follow the warnings and precautions
below during maintenance work.
• Be careful not to lose screws, washers, or other parts removed.
• Be sure to apply grease to the gears and applicable positions specified in this chapter.
• When using soldering irons or other heat-generating tools, take care not to accidentally
damage parts such as wires, PCBs and covers.
• Static electricity charged in your body may damage electronic parts. When transporting
PCBs, be sure to wrap them in conductive sheets.
• When replacing the PCB and all the other related parts, put on a grounding wrist band and
perform the job on a static mat. Also take care not to touch the conductor sections on the
flat cables or on the wire harness.
• After disconnecting flat cables, check that each cable is not damaged at its end or
shortcircuited.
• When connecting flat cables, do not insert them at an angle. After insertion, check that the
cable are not at an angle.
• When connecting or disconnecting cable connectors, hold the connector body, not the
cables. If the connector has a lock, release the connector lock first to release it.
• After a repair, check not only the repaired portion but also all connectors. Also check that
other related portions are functioning properly before operational checks.
• Violently closing the joint cover without mounting the toner cartridge and the drum unit can
damage this product.

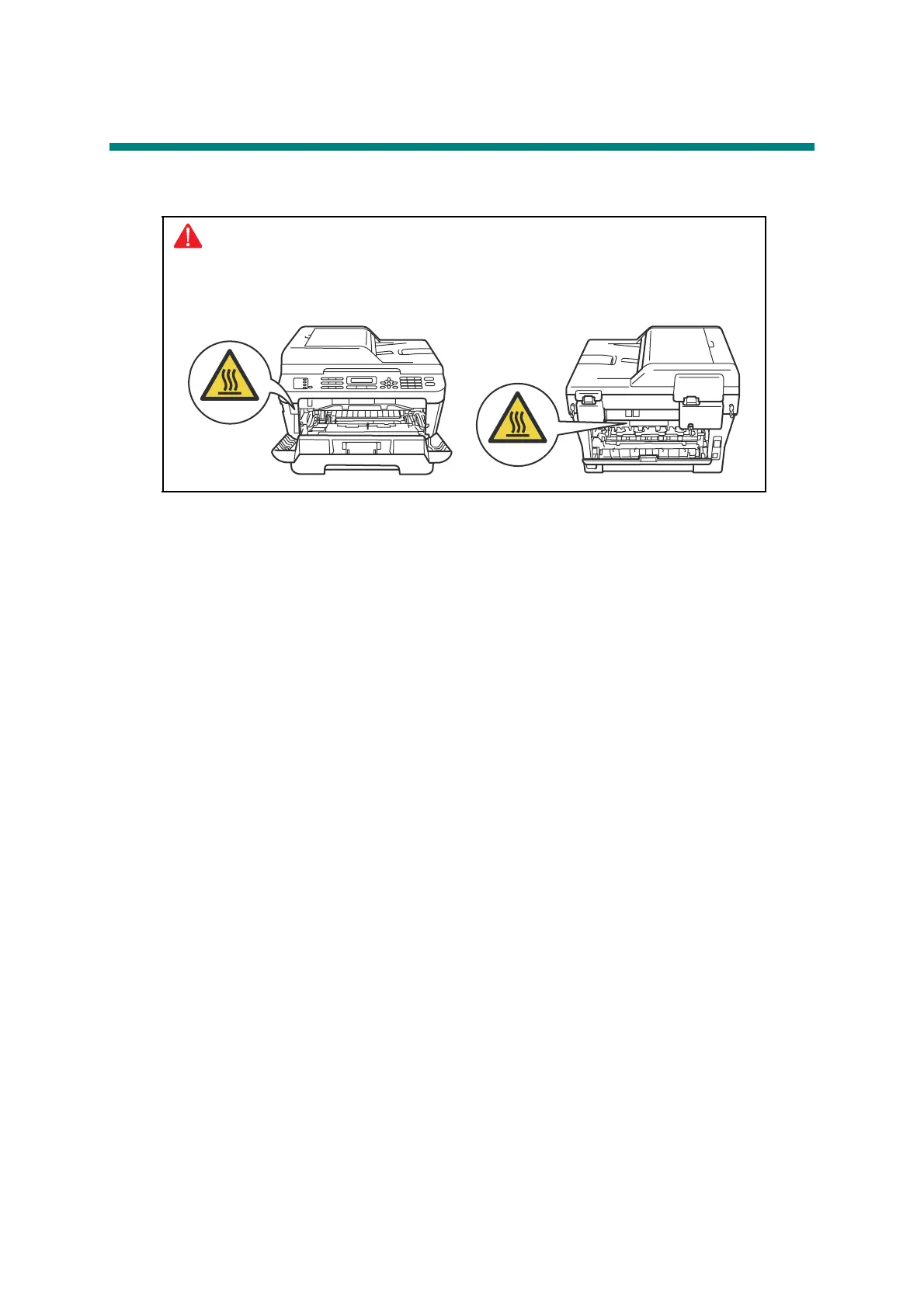

WARNING
Some parts inside the machine are extremely hot immediately after the machine is used.
When opening the front cover or back cover to access any parts inside the machine,
never touch the shaded parts shown in the following figures.

Brother DCP-7060D Specifications

General

Dimensions (WxDxH)	405 x 399 x 268 mm
All-in-one functions	Copy, Print, Scan
Color all-in-one functions	Scan
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	24 ppm
Duplex print speed (black, normal quality, A4/US Letter)	5 ppm
Digital sender	No
Maximum duty cycle	- pages per month
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	11 s
Copy speed (black, normal quality, A4)	24 cpm
Scan to	E-mail, Image, OCR
Scanner type	Flatbed scanner
Grayscale levels	256
Input color depth	48 bit
Output color depth	24 bit
Scan speed (black)	2.63 ppm
Image formats supported	BMP, JPG, TIF
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Total input capacity	250 sheets
Total output capacity	100 sheets
Multi-Purpose tray input capacity	1 sheets
Custom media width	76.2 - 216 mm
Maximum print size	216 x 406 mm
Custom media length	116 - 406.4 mm
Paper tray media types	Bond paper, Plain paper, Recycled paper
Paper tray media weight	60 - 105 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Display	LCD
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Processor family	ARM
Sound power level (standby)	30 dB
Sound pressure level (printing)	53 dB
AC input frequency	50 - 60 Hz
Power consumption (standby)	55 W
Power consumption (PowerSave)	0.9 W
Power consumption (average operating)	445 W
Sustainability certificates	ENERGY STAR
Package weight	13.200 g
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard
Windows operating systems supported	Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
