Brother DCP-7060D Service Manual

4-2 Confidential
1.1 Rewriting the firmware (Sub firmware, Main firmware)
1.1.1 Checking firmware version
Check if the firmware written on the main PCB ASSY is the latest version or not. If it is the latest
version, there is no need to write the firmware. If it is not, make sure to write the firmware to the
main PCB ASSY in accordance with “1.1.2 Rewriting the firmware using computer” in this chapter.
<How to check firmware version>
Press the * and # buttons at the same time in the ready state. (For models without numeric
keys; Press the and Stop/Exit buttons at the same time.) Then, the firmware version
information is displayed on the LCD.
1.1.2 Rewriting the firmware using computer
<Procedures>
(1) Turn the power switch of the machine off. Turn on the power as pressing the 5 button (For
models without numeric keys; Press the Number of Copies button or Duplex button.).
Check that “
■ ■ ■ ■ ■ ■ ■ ■ ” appears on the LCD.
(2) Connect the computer to the machine with the USB cable.

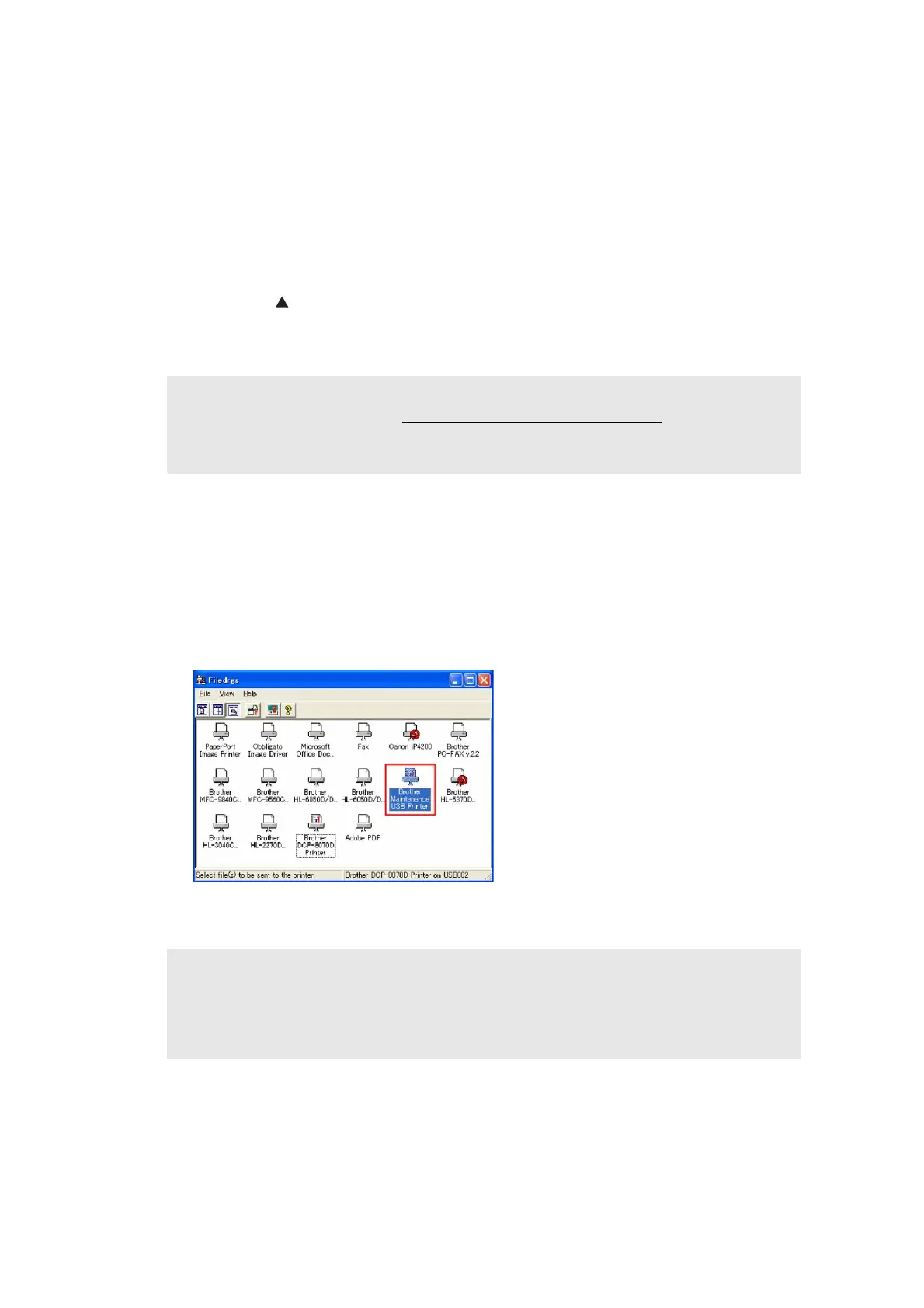

(3) Double-click the “FILEDG32.EXE” to start. The following screen appears. Select the
“Brother Maintenance USB Printer.”
(4) Drag and drop a program file that you want to rewrite (for instance, LZXXXX_$.upd) onto
the Brother Maintenance USB Printer icon in the screen shown above.
(5) Upon completion of rewriting, the machine restarts and returns to the ready state automatically.
Note:
• It is recommendable to rewrite 1) Sub firmware and 2) Main firmware
in this order.
• DO NOT unplug the power cord of the machine or your computer or disconnect the USB
cable while rewriting the program files.
Note:
• After rewriting Sub firmware or Main firmware is completed, the machine returns to the
ready state. To continue rewriting the other program files, turn off the power switch of the
machine, and turn it on again as pressing the 5 buttons. Check that “
■ ■ ■ ■ ■ ■ ■ ■ ”
appears on the LCD and start rewriting.

Brother DCP-7060D Specifications

General

Dimensions (WxDxH)	405 x 399 x 268 mm
All-in-one functions	Copy, Print, Scan
Color all-in-one functions	Scan
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	24 ppm
Duplex print speed (black, normal quality, A4/US Letter)	5 ppm
Digital sender	No
Maximum duty cycle	- pages per month
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	11 s
Copy speed (black, normal quality, A4)	24 cpm
Scan to	E-mail, Image, OCR
Scanner type	Flatbed scanner
Grayscale levels	256
Input color depth	48 bit
Output color depth	24 bit
Scan speed (black)	2.63 ppm
Image formats supported	BMP, JPG, TIF
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Total input capacity	250 sheets
Total output capacity	100 sheets
Multi-Purpose tray input capacity	1 sheets
Custom media width	76.2 - 216 mm
Maximum print size	216 x 406 mm
Custom media length	116 - 406.4 mm
Paper tray media types	Bond paper, Plain paper, Recycled paper
Paper tray media weight	60 - 105 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Display	LCD
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Processor family	ARM
Sound power level (standby)	30 dB
Sound pressure level (printing)	53 dB
AC input frequency	50 - 60 Hz
Power consumption (standby)	55 W
Power consumption (PowerSave)	0.9 W
Power consumption (average operating)	445 W
Sustainability certificates	ENERGY STAR
Package weight	13.200 g
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard
Windows operating systems supported	Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
